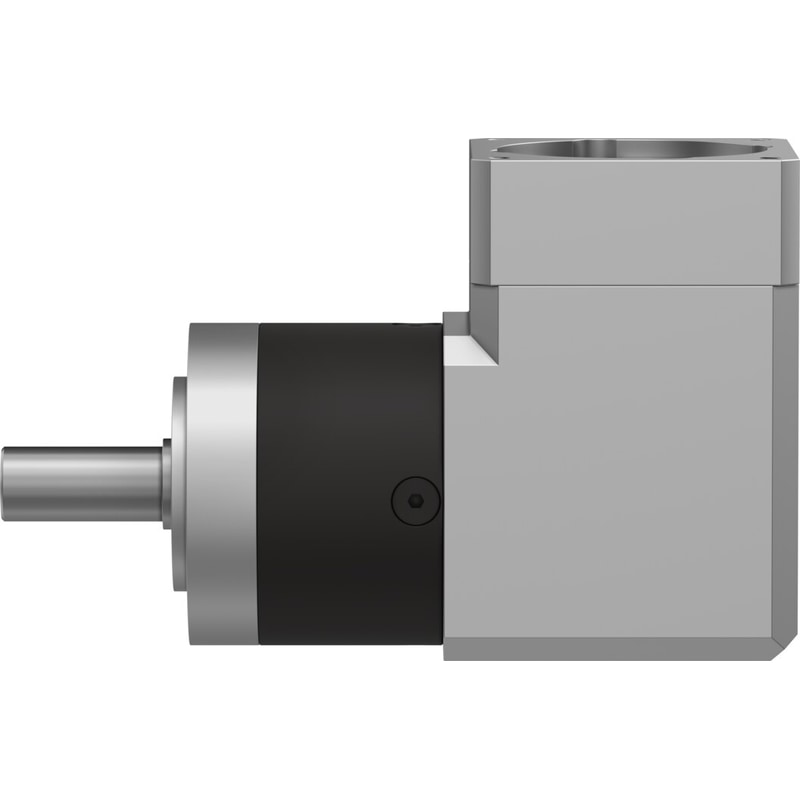

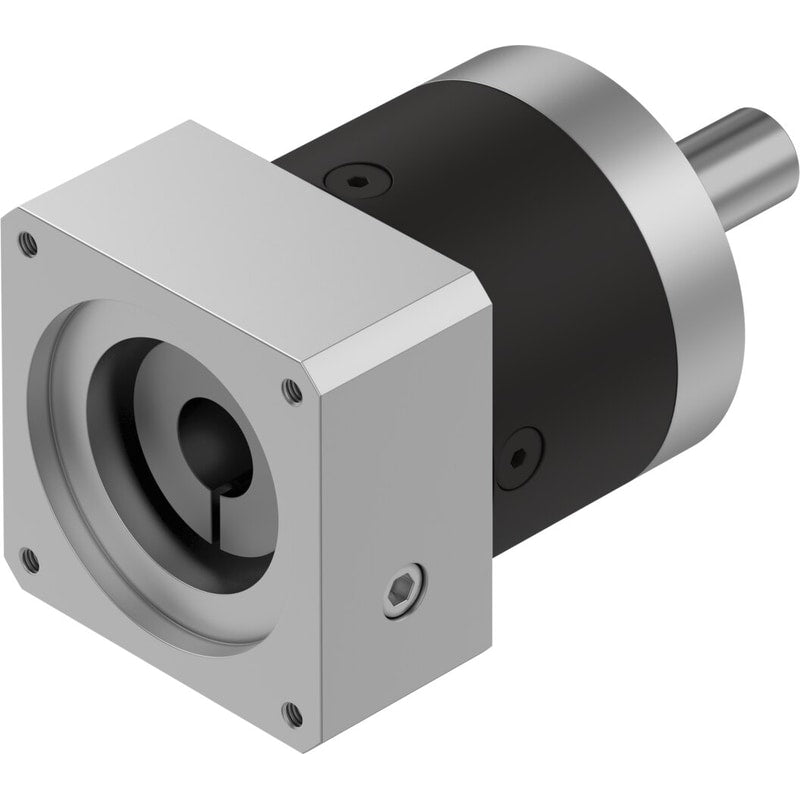

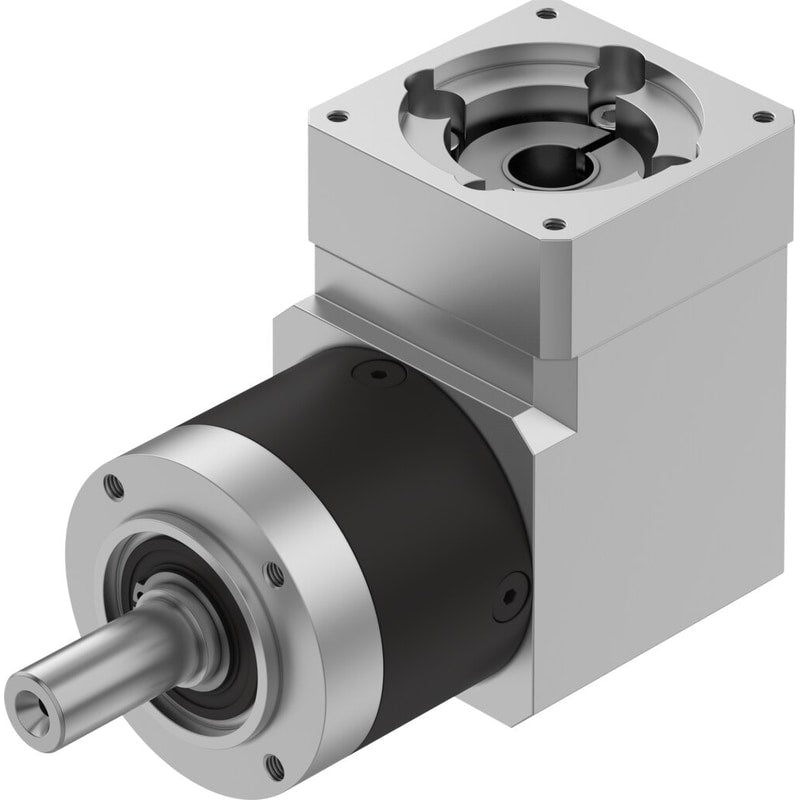

Gear unit
EMGA-60-A-G8-60P
8141738
GTIN 4052568565176
Vendor Festo
- Continuous output torque
- 18 Nm
- Max. actuator speed
- 13000 1/min
- Torsional rigidity
- 1.6 Nm/arcmin
- Gear ratio
- 8:1
- Gearbox type
- Angular gear
Regular price
$1,421.81
Unit price
EMGA-60-A-G8-60P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMGA-60-A-G8-60P
Regular price
$1,421.81
Unit price
EMGA-60-A-G8-60P is backordered and will ship as soon as it is back in stock.
| Gearbox flange size | 60 mm |
|---|---|
| Motor flange size | 60 mm |
| Torsional backlash | 0.27 deg |
| Gearbox type | Angular gear |
| Gear ratio | 8:1 |
| Max. actuator speed | 13000 1/min |
| Gearbox operating temperature | -25 °C ... 90 °C |
| LABS conformity | VDMA24364-B2-L |
| Degree of protection | IP54 |
| Continuous output torque | 18 Nm |
| Mass moment of inertia, gearbox | 0.243 kgcm² |
| Max. output torque | 29 Nm |
| Max. efficiency | 93 % |
| Torsional rigidity | 1.6 Nm/arcmin |
| Product weight | 1700 g |
| Gearbox interface, output shaft | 60G |
| Gearbox interface, actuator | 60P |
| Note on materials | RoHS-compliant |
