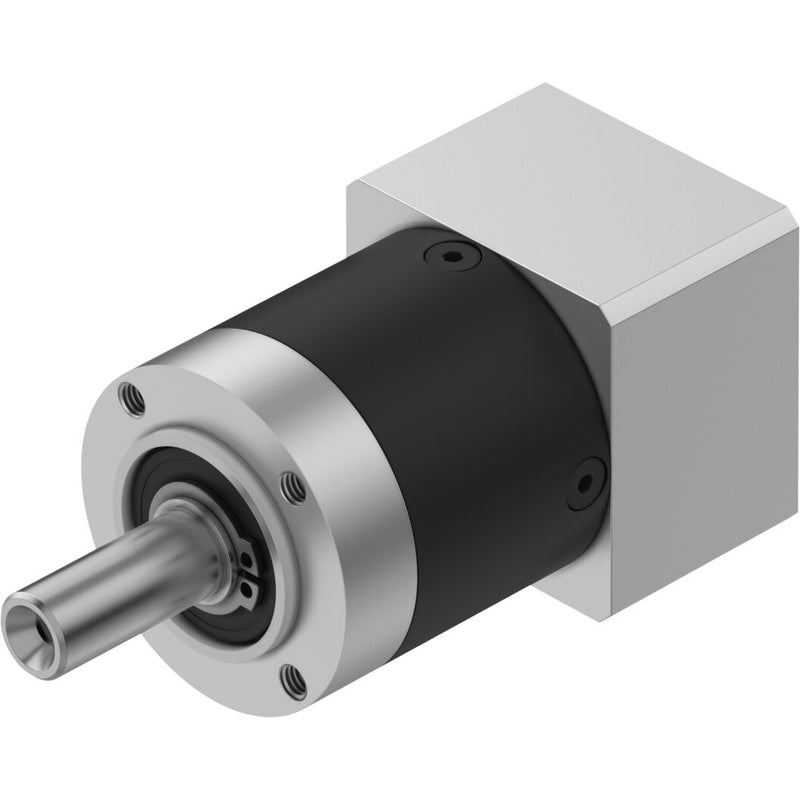

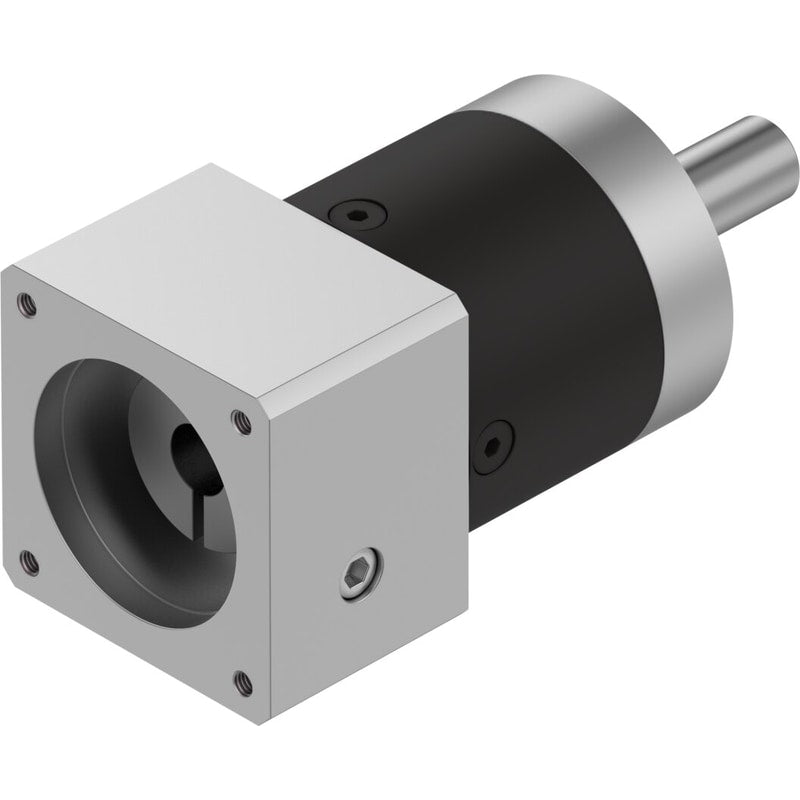

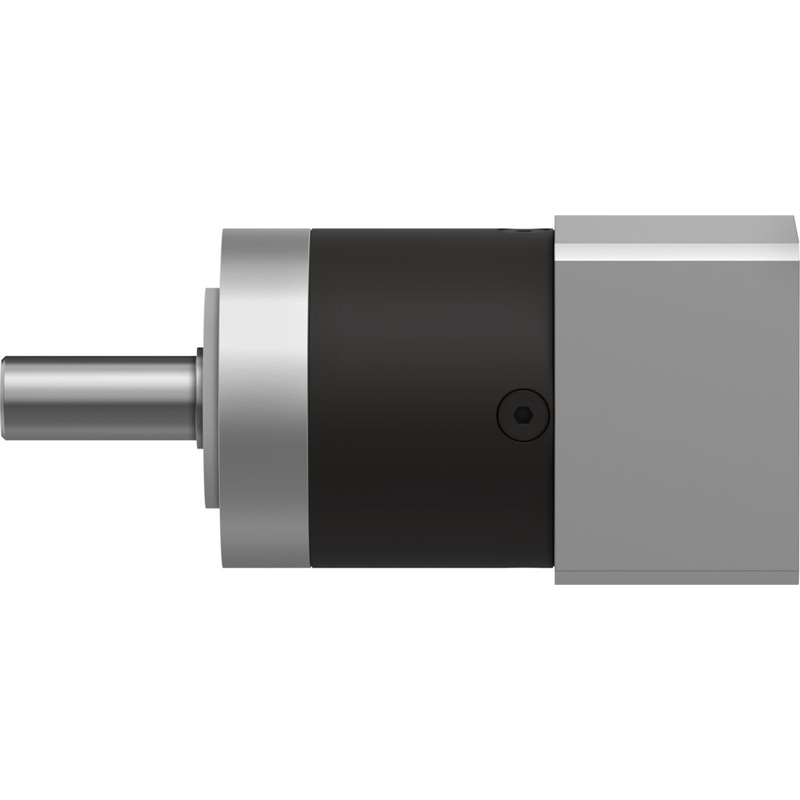

Gear unit
EMGA-40-P-G8-EAS-40
8141729
GTIN 4052568565084
Vendor Festo
- Continuous output torque
- 6 Nm
- Max. actuator speed
- 18000 1/min
- Torsional rigidity
- 0.85 Nm/arcmin
- Gear ratio
- 8:1
- Gearbox type
- Planetary gear
Regular price
$657.86
Unit price
EMGA-40-P-G8-EAS-40 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMGA-40-P-G8-EAS-40
Regular price
$657.86
Unit price
EMGA-40-P-G8-EAS-40 is backordered and will ship as soon as it is back in stock.
| Gearbox flange size | 40 mm |
|---|---|
| Motor flange size | 40 mm |
| Torsional backlash | 0.25 deg |
| Gearbox type | Planetary gear |
| Gear ratio | 8:1 |
| Max. actuator speed | 18000 1/min |
| Gearbox operating temperature | -25 °C ... 90 °C |
| LABS conformity | VDMA24364-B2-L |
| Degree of protection | IP54 |
| Continuous output torque | 6 Nm |
| Mass moment of inertia, gearbox | 0.015 kgcm² |
| Max. output torque | 10 Nm |
| Max. efficiency | 96 % |
| Torsional rigidity | 0.85 Nm/arcmin |
| Product weight | 350 g |
| Gearbox interface, output shaft | 40G |
| Gearbox interface, actuator | 40P |
| Note on materials | RoHS-compliant |
