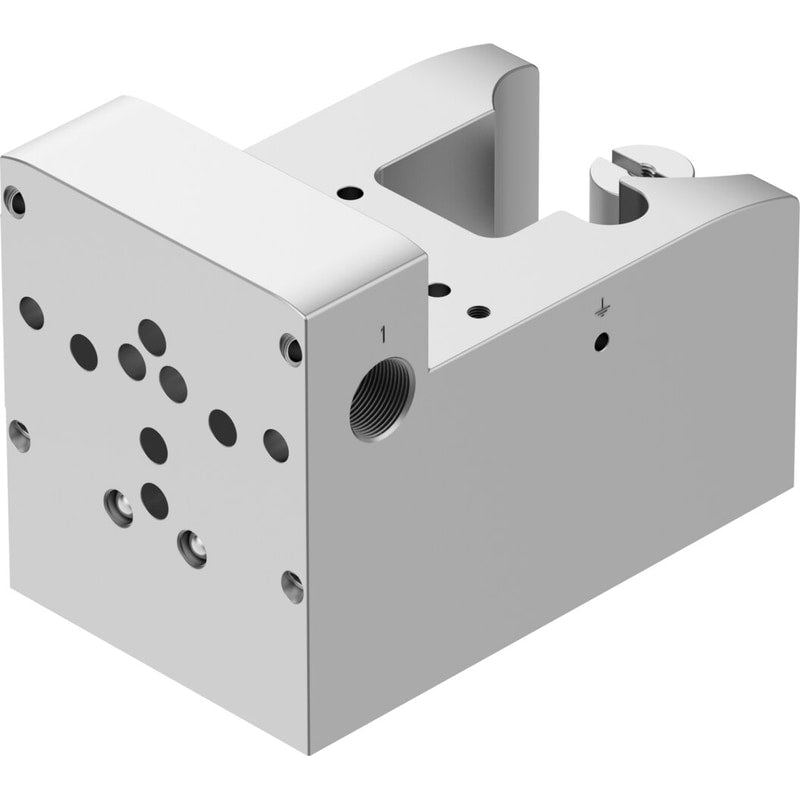

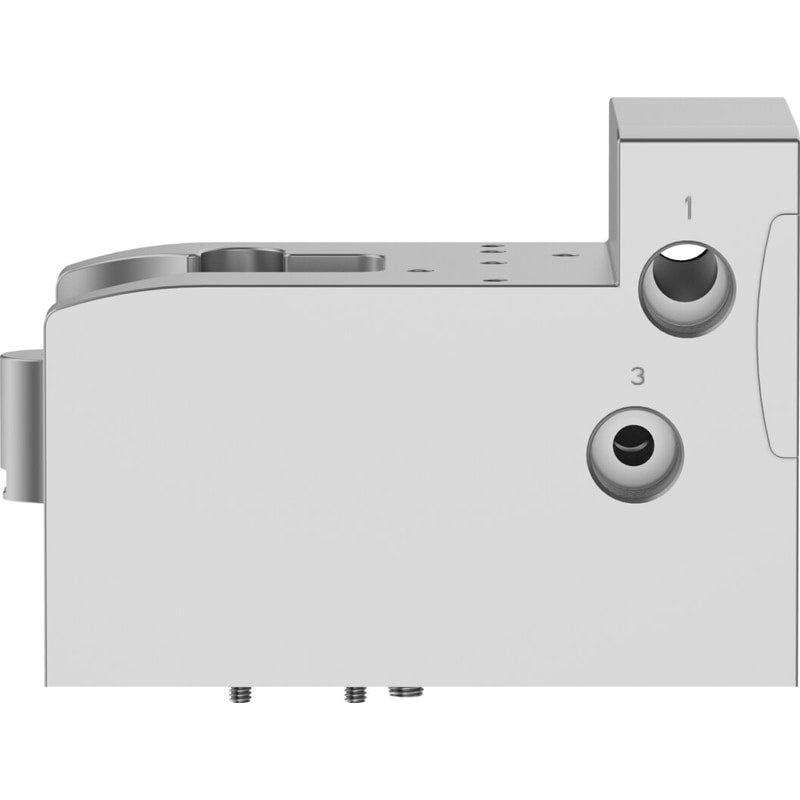

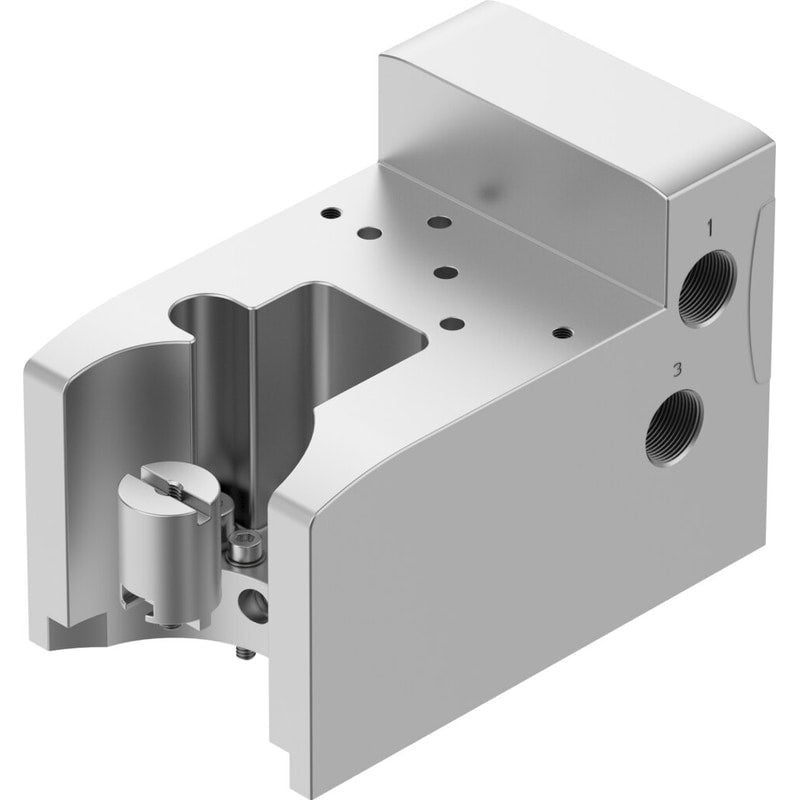

Adapter plate
VABA-C13-100-2-F90-G12
8141665
GTIN 4052568580551
Vendor Festo
Regular price
$430.80
Unit price
VABA-C13-100-2-F90-G12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABA-C13-100-2-F90-G12
Regular price
$430.80
Unit price
VABA-C13-100-2-F90-G12 is backordered and will ship as soon as it is back in stock.
| Size | 1200 |
|---|---|
| Mounting position | Any |
| Structural design | Adapter for rotary actuator |
| Valve connection conforms to standard | VDI/VDE 3847-2 |
| Operating pressure | 0MPa |
| Operating pressure | 0bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:7:-] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Temperature of medium | -40°C |
| Ambient temperature | -40°C |
| Product weight | 3140g |
| Type of mounting | With accessories |
| Pneumatic connection | Sub-base design, airing |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 3 | G1/2 |
| Note on materials | RoHS-compliant |
| Cover material | Smooth-anodized wrought aluminum alloy (20 µm) |
| Seals material | EPDM |
| Housing material | Smooth-anodized wrought aluminum alloy (20 µm) |
| Material of screws | High-alloy stainless steel |
