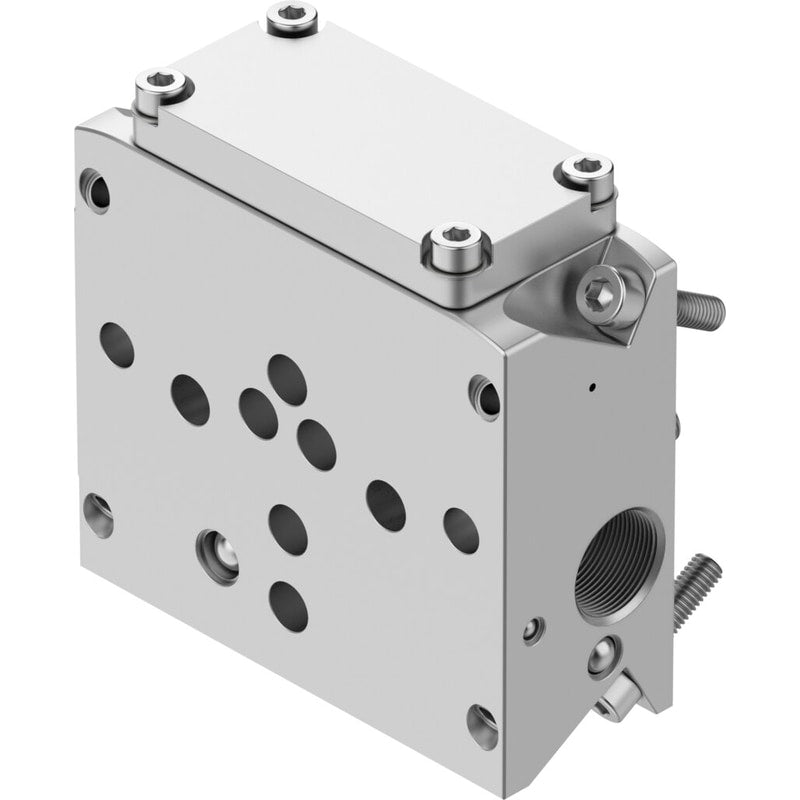

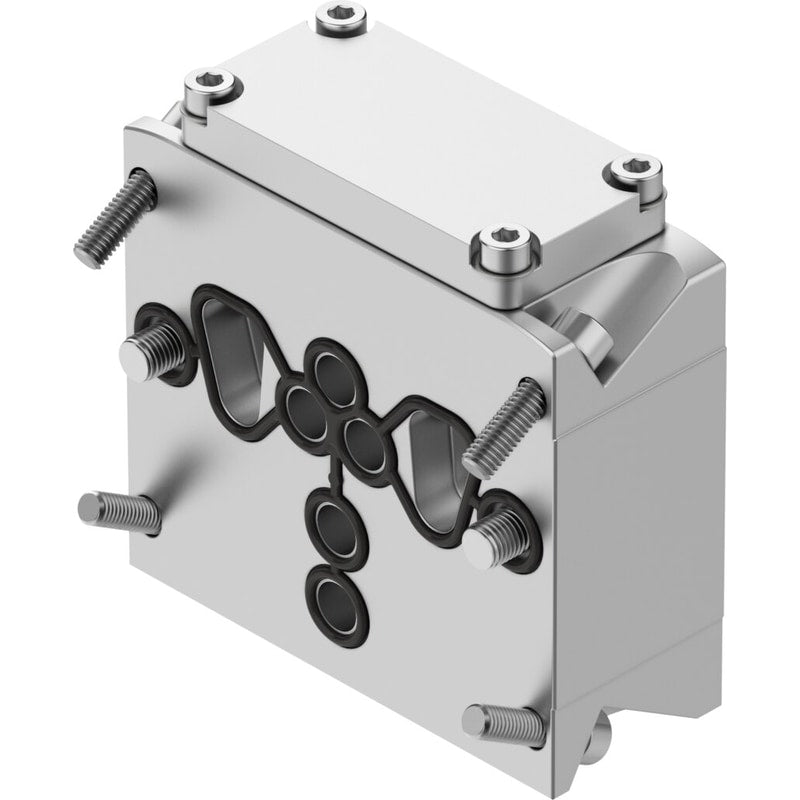

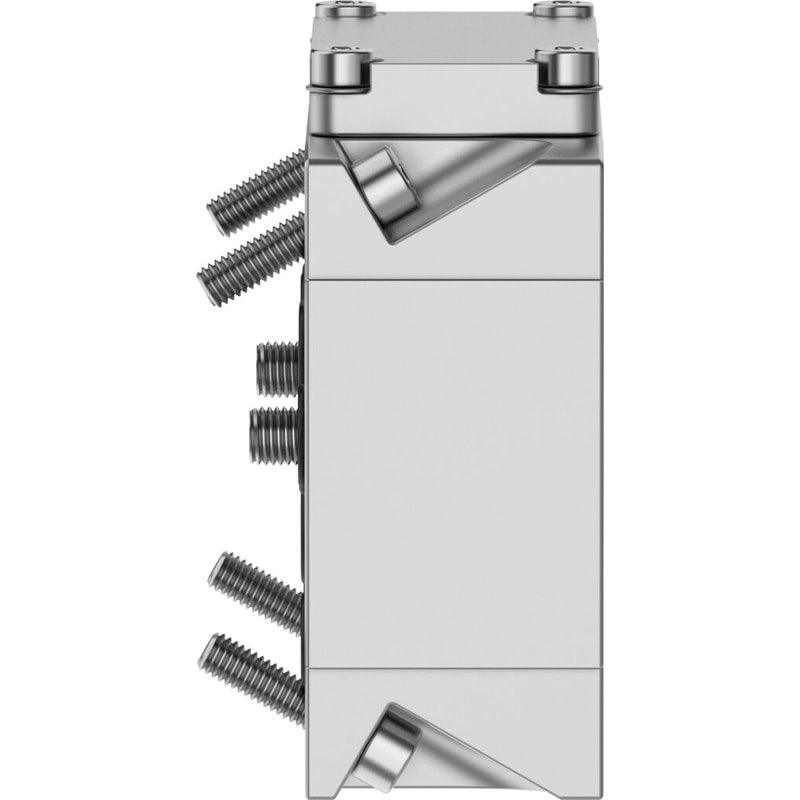

Pneumatic valve
VOGI-F100FS-T32H-M-F90
8141660
GTIN 4052568580513
Vendor Festo
Regular price
$885.56
Unit price
VOGI-F100FS-T32H-M-F90 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VOGI-F100FS-T32H-M-F90
Regular price
$885.56
Unit price
VOGI-F100FS-T32H-M-F90 is backordered and will ship as soon as it is back in stock.
| Structural design | Sub base valve |
|---|---|
| Actuation type | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | With accessories |
| Valve function | 4/2, monostable |
| Mode of operation | Double-acting |
| Operating pressure | 0.33MPa |
| Operating pressure | 3.3bar |
| Operating pressure | 47.85psi |
| Reset method | Mechanical spring |
| Pneumatic connection | Sub-base design, airing |
| Pneumatic connection 1 | G1/2 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:7:-] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Temperature of medium | -20°C |
| Ambient temperature | -20°C |
| Standard nominal flow rate | 1093l/min |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Housing material | Smooth-anodized wrought aluminum alloy (20 µm) |
| Cover material | Smooth-anodized wrought aluminum alloy (20 µm) |
| Seals material | EPDM |
| Material of screws | High-alloy stainless steel |
| Material of spring | Spring steel |
| Product weight | 880g |
