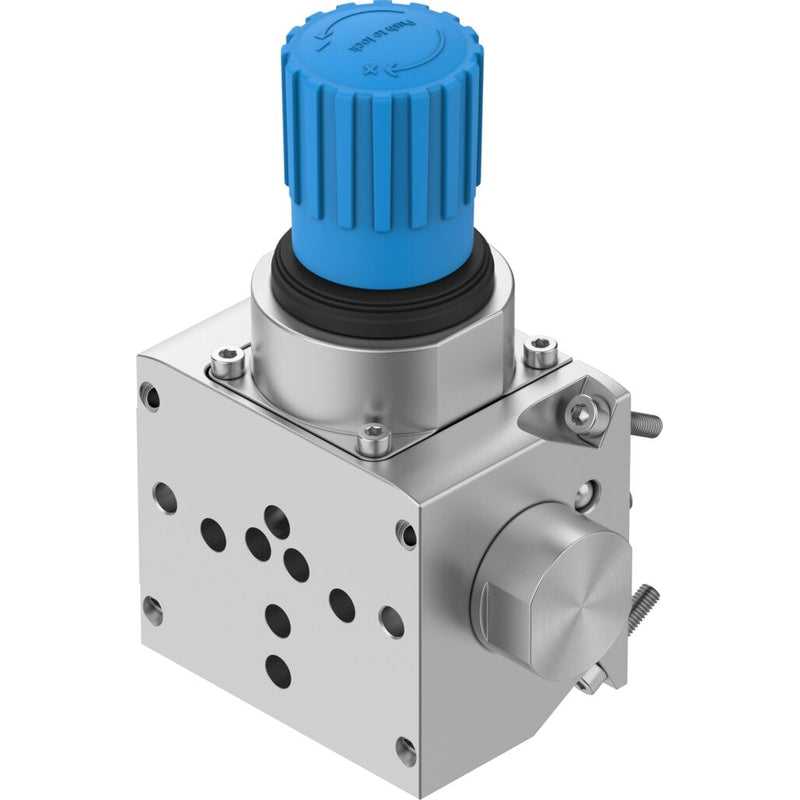

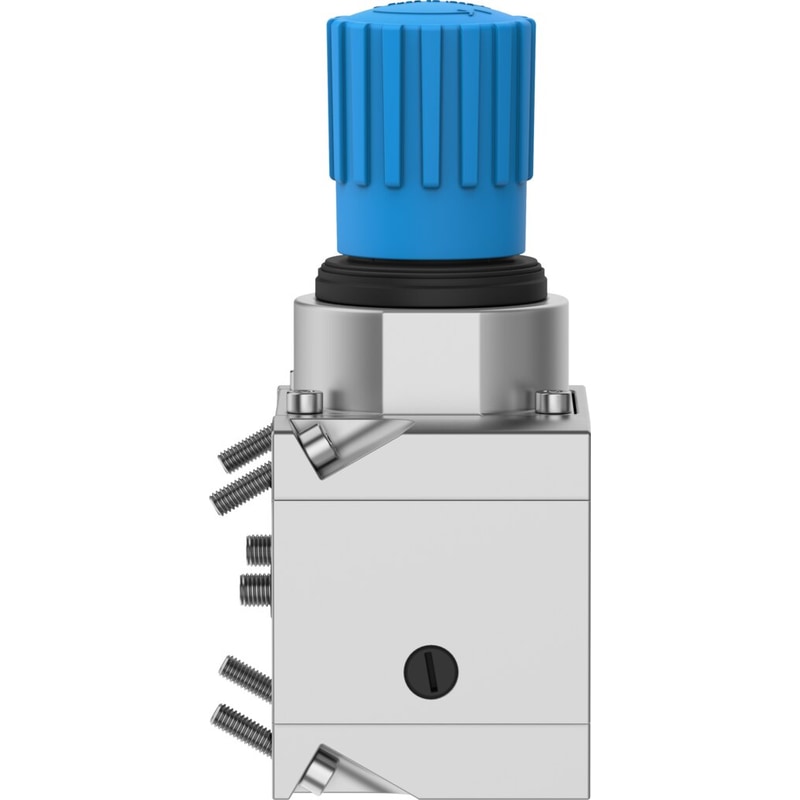

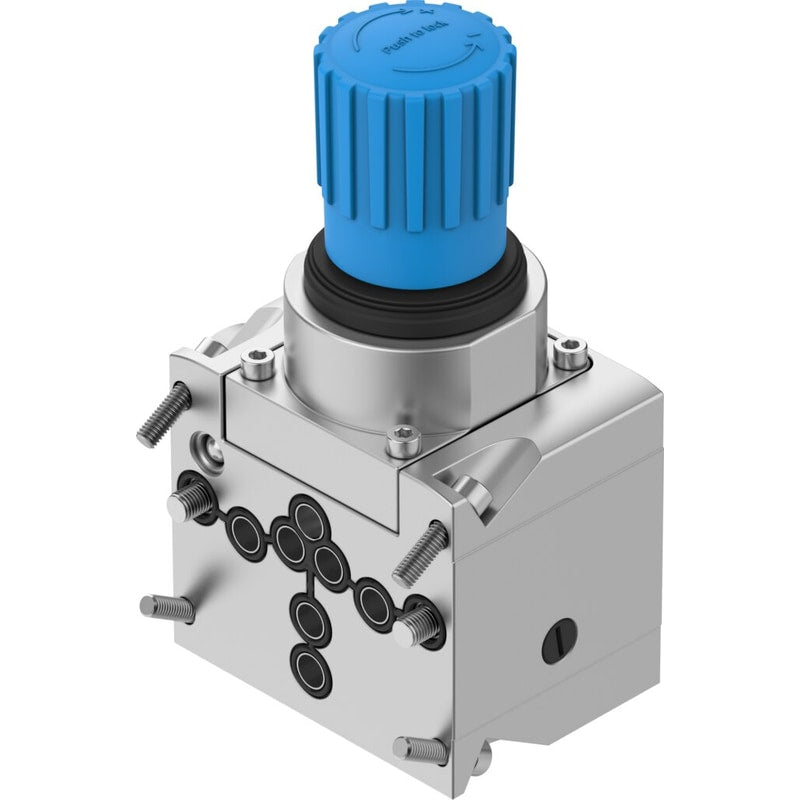

Filter regulator
PCRI-100-F90-12-C-T3
8141656
GTIN 4052568580278
Vendor Festo
Regular price
$904.70
Unit price
PCRI-100-F90-12-C-T3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PCRI-100-F90-12-C-T3
Regular price
$904.70
Unit price
PCRI-100-F90-12-C-T3 is backordered and will ship as soon as it is back in stock.
| Actuator lock | Rotary knob with detent |
|---|---|
| Mounting position | Any |
| Grade of filtration | 5µm |
| Condensate drain | Without |
| Structural design | Sub base valve |
| Controller function | Outlet pressure constant |
| Pressure gauge | G1/4 prepared |
| Operating pressure | 0.1MPa |
| Operating pressure | 1bar |
| Pressure regulation range | 0.5bar |
| Max. pressure hysteresis | 0.025MPa |
| Max. pressure hysteresis | 0.25bar |
| Max. pressure hysteresis | 3.625psi |
| Standard nominal flow rate | 1400l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:7:-] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:7:-] |
| Temperature of medium | -40°C |
| Ambient temperature | -40°C |
| Product weight | 1950g |
| Pneumatic connection | Sub-base design, airing |
| Note on materials | RoHS-compliant |
| Cover material | Smooth-anodized wrought aluminum alloy (20 µm) |
| Seals material | EPDM |
| Rotary knob material | POM |
| Material of spring | Spring steel |
| Compressed air filter material | PE |
| Housing material | Smooth-anodized wrought aluminum alloy (20 µm) |
| Material of screws | High-alloy stainless steel |
