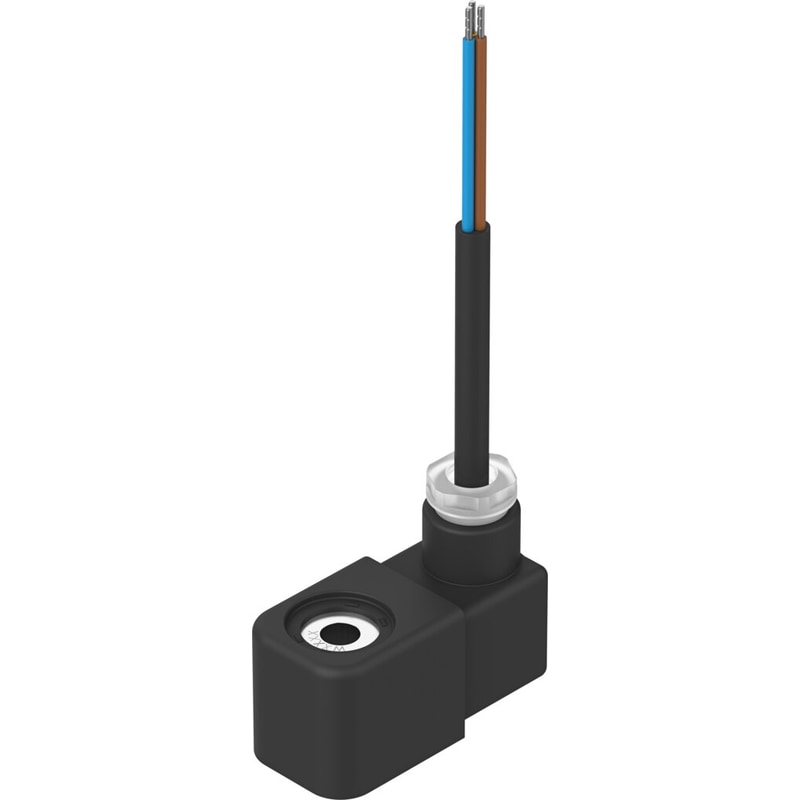

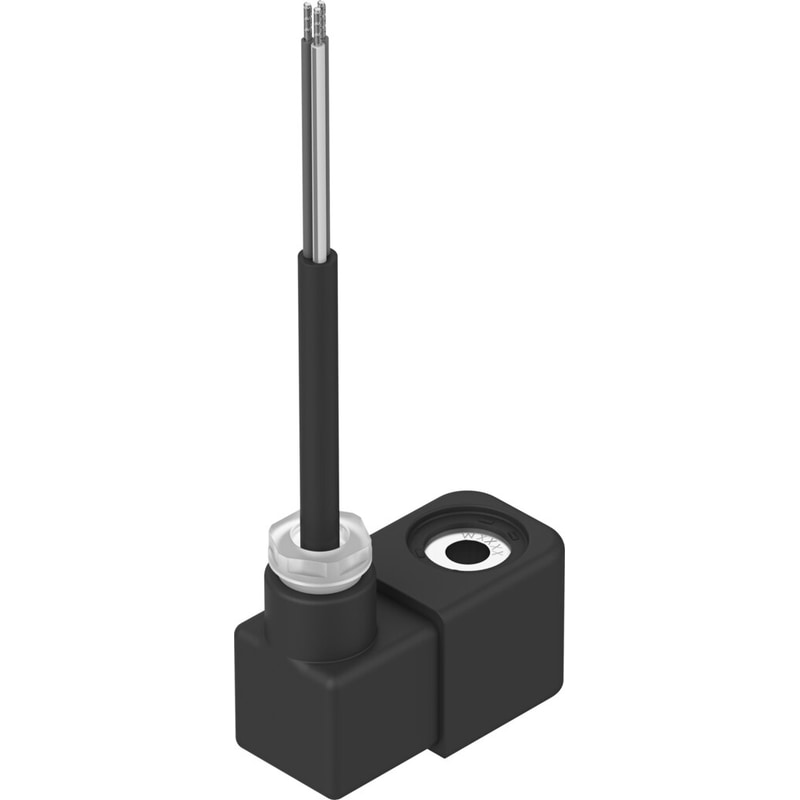

Solenoid coil
VACN-N-K1-1-10-EX4-M
8141606
GTIN 4052568566203
Vendor Festo
- Electrical connection
- Cable
- Type of mounting
- With knurled nut
- Coil characteristics
- 24 V DC: 2.6 W
- Degree of protection
- IP65
Regular price
$204.28
Unit price
VACN-N-K1-1-10-EX4-M is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACN-N-K1-1-10-EX4-M
Regular price
$204.28
Unit price
VACN-N-K1-1-10-EX4-M is backordered and will ship as soon as it is back in stock.
| Actuation type | Electrical |
|---|---|
| Mounting position | Any |
| Duty cycle | 100% |
| Insulation class | F |
| Enameled wire insulation class | H |
| Coil characteristics | 24 V DC: 2.6 W |
| Permissible voltage fluctuations | +/- 10 % |
| Maritime classification | See certificate |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) |
| Explosion prevention and protection | Zone 1 (ATEX) |
| Certificate issuing authority | IECEx PTB 15.0016X |
| ATEX category gas | II 2G |
| ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex mb IIC T6 Gb |
| Type of (ignition) protection for dust | Ex mb tb IIIC T80°C Db |
| Explosive ambient temperature | -20°C <= Ta <= +50°C |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP65 |
| Ambient temperature | -20°C |
| Product weight | 762g |
| Electrical connection | Cable |
| Cable diameter | 7mm |
| Cable length | 10m |
| Type of mounting | With knurled nut |
| Note on materials | RoHS-compliant |
| Housing material | Polymer |
| Material of winding | Copper |
