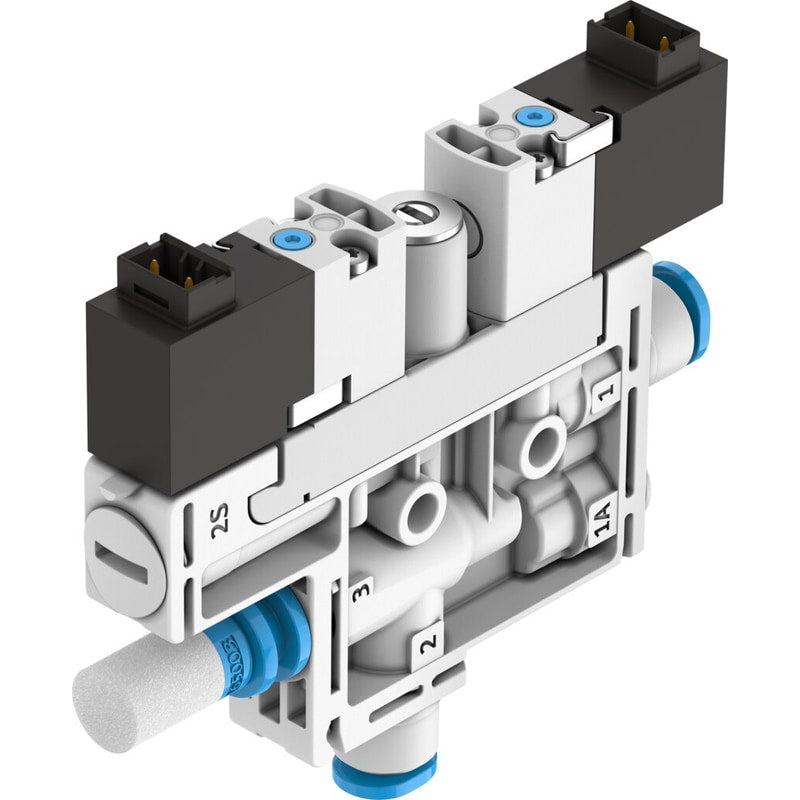

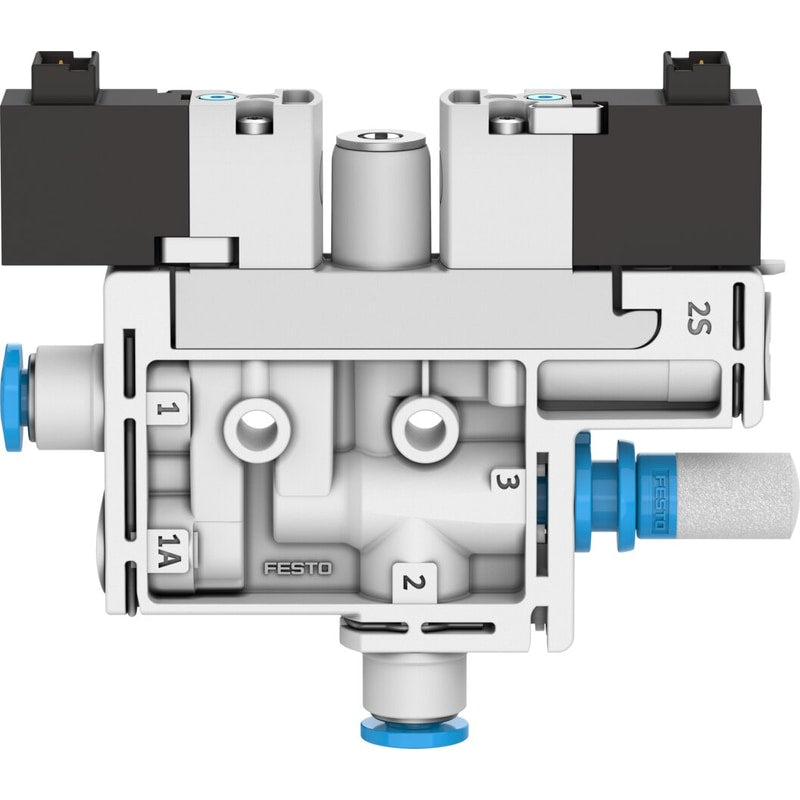

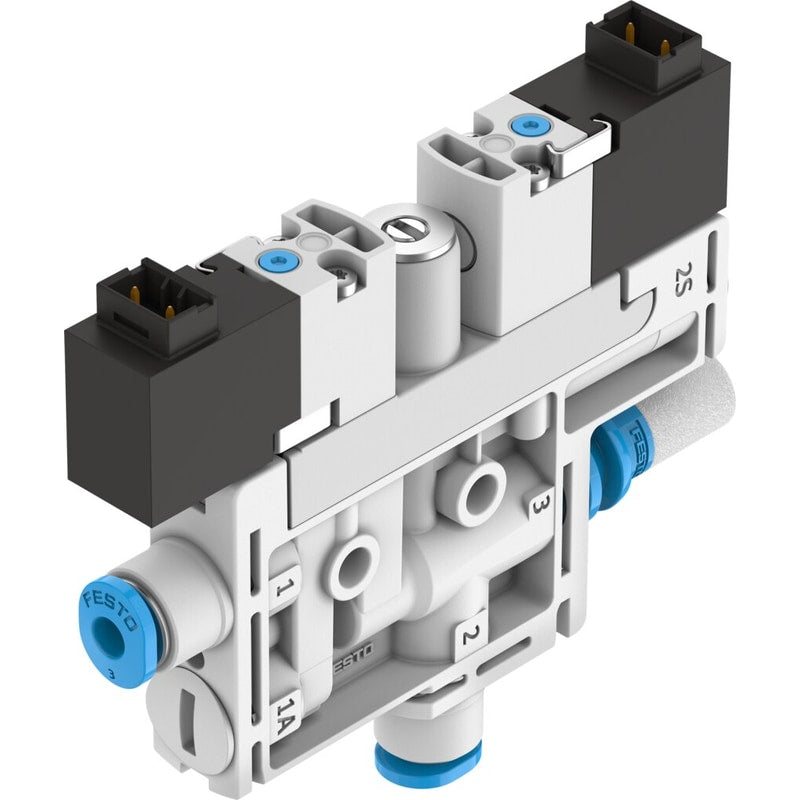

Vacuum generator
OVEL-5-H-10-PQ-VQ4-UC-C-A-H3
8141099
GTIN 4052568566685
Vendor Festo
- Nominal width of Laval nozzle
- 0.45 mm
- Max. vacuum
- 89 %
- Max. suction rate with respect to atmosphere
- 4 l/min
Regular price
$219.72
Unit price
OVEL-5-H-10-PQ-VQ4-UC-C-A-H3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
OVEL-5-H-10-PQ-VQ4-UC-C-A-H3
Regular price
$219.72
Unit price
OVEL-5-H-10-PQ-VQ4-UC-C-A-H3 is backordered and will ship as soon as it is back in stock.
| Nominal width of Laval nozzle | 0.45 mm |
|---|---|
| Width dimension | 10 mm |
| Muffler construction type | Closed |
| Mounting position | Any |
| Ejector characteristics | High vacuum Standard |
| Grade of filtration | 40 µm |
| Manual override | Non-detenting |
| Integrated function | Electric ejector pulse Flow control Shut off valve, electric Compressed air filter Muffler, closed |
| Structural design | T-shape |

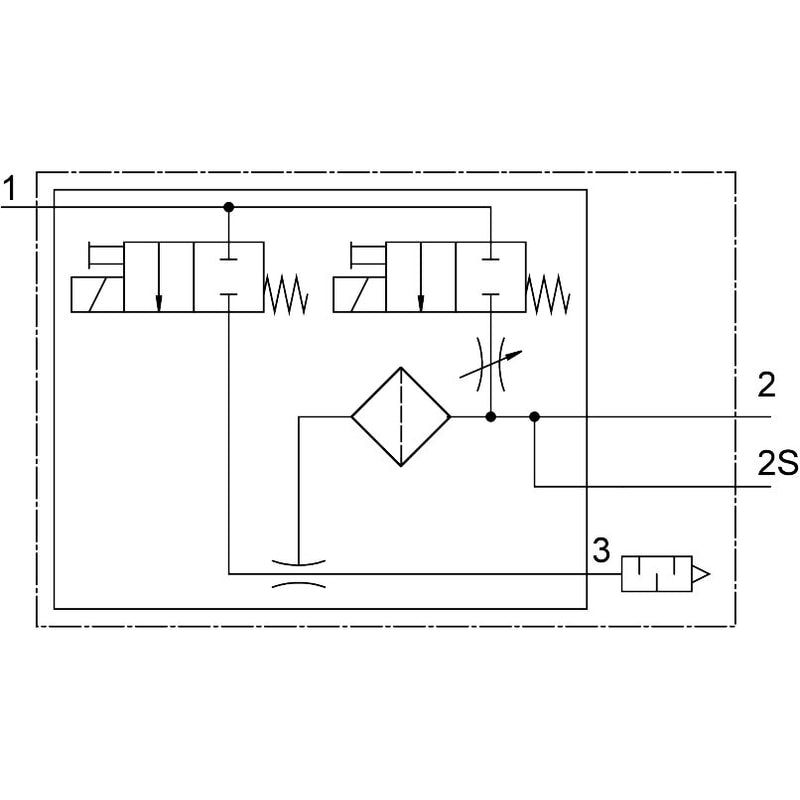

| Symbol | 00995808 |
| Valve function | Closed |
| Operating pressure for max. suction rate | 3 bar |
| Operating pressure | 2 bar ... 7 bar |
| Operating pressure for max. vacuum | 4.4 bar |
| Max. vacuum | 89 % |
| Nominal operating pressure | 4 bar |
| Max. suction rate with respect to atmosphere | 4 l/min |
| Air supply time at nominal operating pressure with ejector pulse | 2 s |
| DC operating voltage range | 21.6 V ... 26.4 V |
| Duty cycle | 100% |
| Coil characteristics | 24 V DC: 1.0 W |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 0 °C ... 50 °C |
| Noise level at nominal operating pressure | 51 dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| Product weight | 39 g |
| Electrical connection input, function | Ejector pulse Vacuum generator |
| Electrical connection input, connection type | 2x plugs |
| Electrical input connection, connection technology | Connection diagram H |
| Electrical connection, input, number of pins/wires | 2 |
| Electrical connection for input, connection pattern | 00995626 |
| Electrical input connection, mounting type | Snap-locking |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm |
| Pneumatic connection 3 | Muffler, closed |
| Vacuum connection | For pneumatic tubing outside diameter 4 mm |
| Material of connecting thread | POM |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Female nozzle material | POM |
| Compressed air filter material | POM |
| Housing material | PA-reinforced |
| Material of adjusting screw | Steel |
| Muffler material | PA-reinforced PE |
| Material of screws | Steel |
| Material of jet nozzle | Wrought aluminum alloy |
