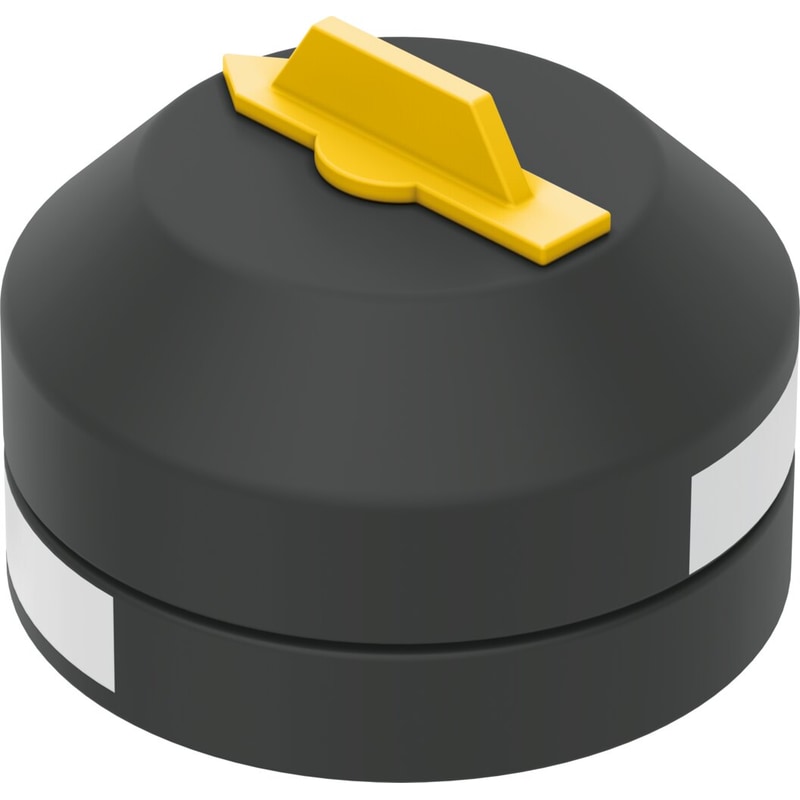

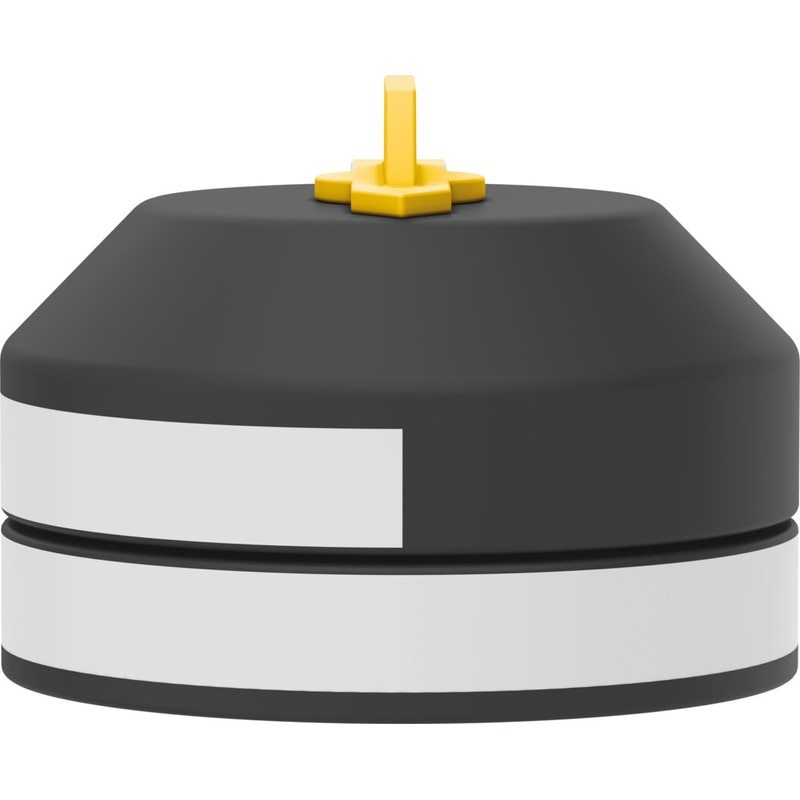

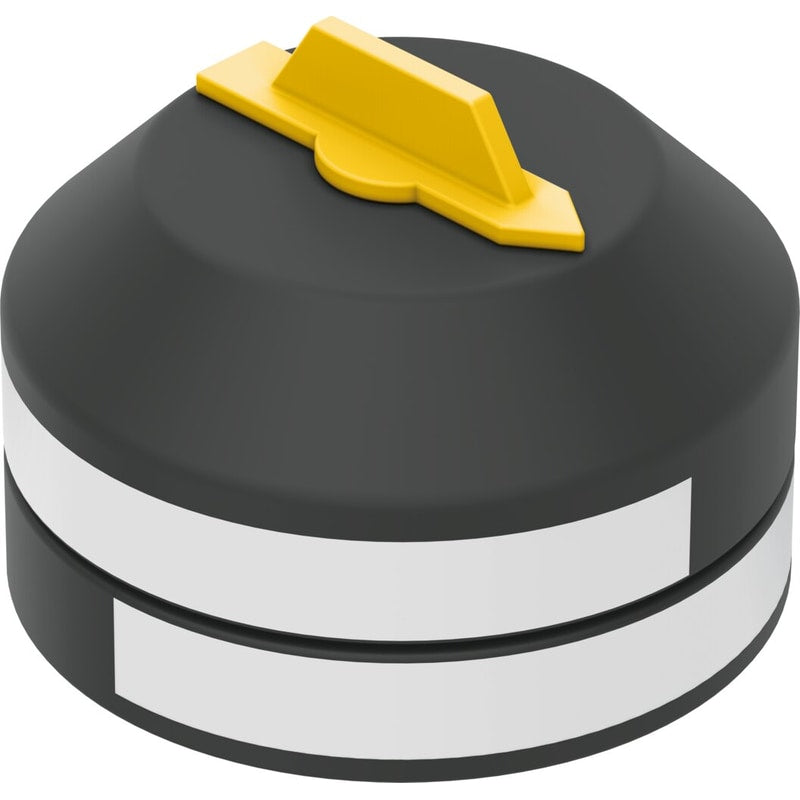

Position indicator
SASF-S2-B-V-A20
8140395
GTIN 4052568568573
Vendor Festo
Regular price
$138.01
Unit price
SASF-S2-B-V-A20 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SASF-S2-B-V-A20
Regular price
$138.01
Unit price
SASF-S2-B-V-A20 is backordered and will ship as soon as it is back in stock.
| Adjustment range of swivel angle | 0 deg ... 360 deg |
|---|---|
| Additional functions | Adjustable actuating lug |
| Dimensions W x L x H | Ø 65 x 48.5 |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Ambient temperature | -25 °C ... 70 °C |
| Product weight | 96 g |
| Type of mounting | as per VDI/VDE 3845 |
| Housing colour | Black |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Spacer element material | PA |
| Housing material | PA PP High-alloy stainless steel |
| Material of screws | High-alloy stainless steel |
