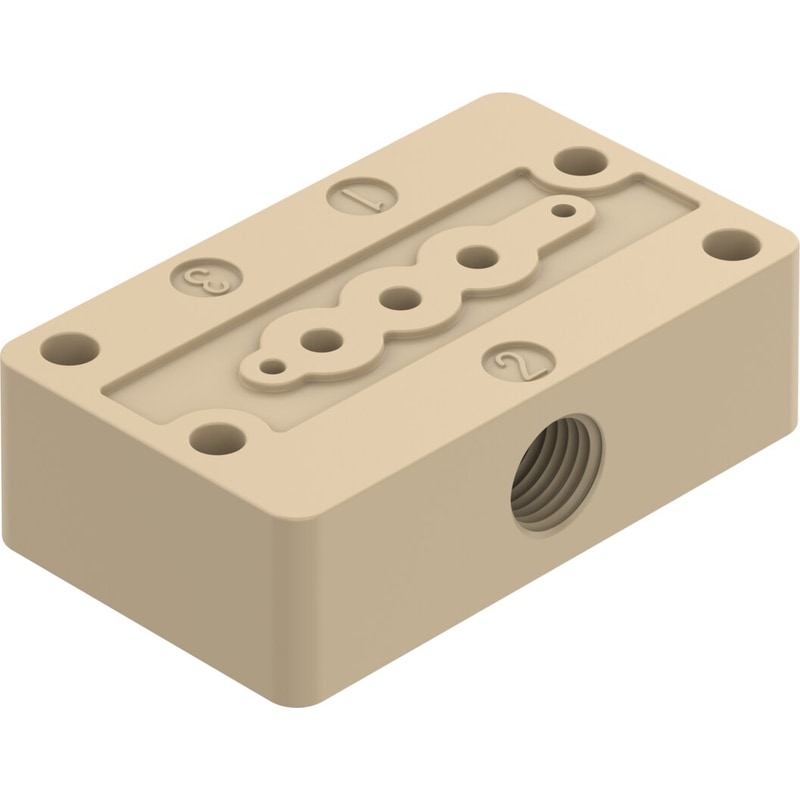

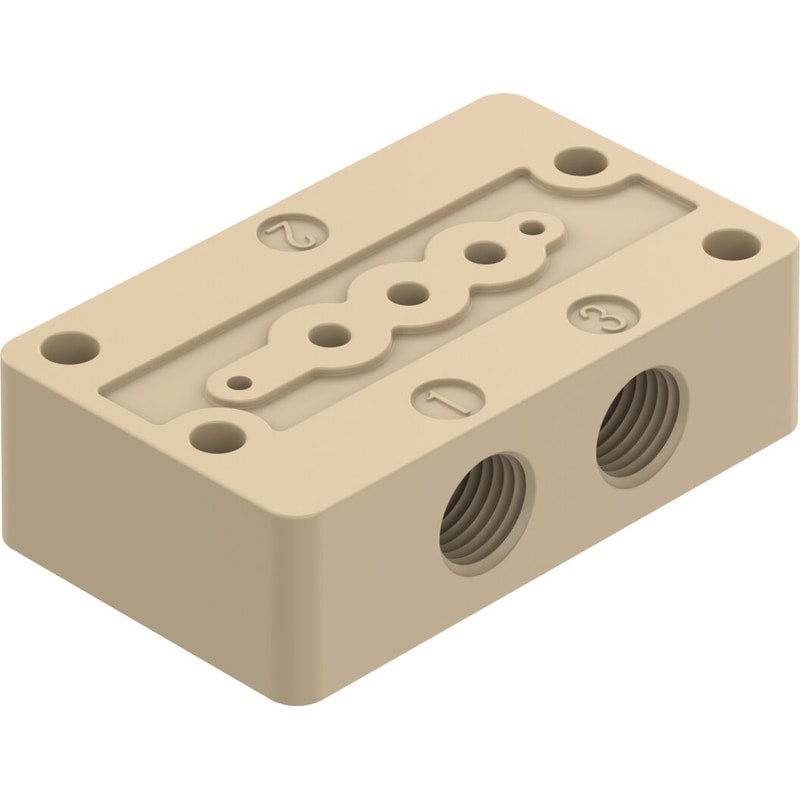

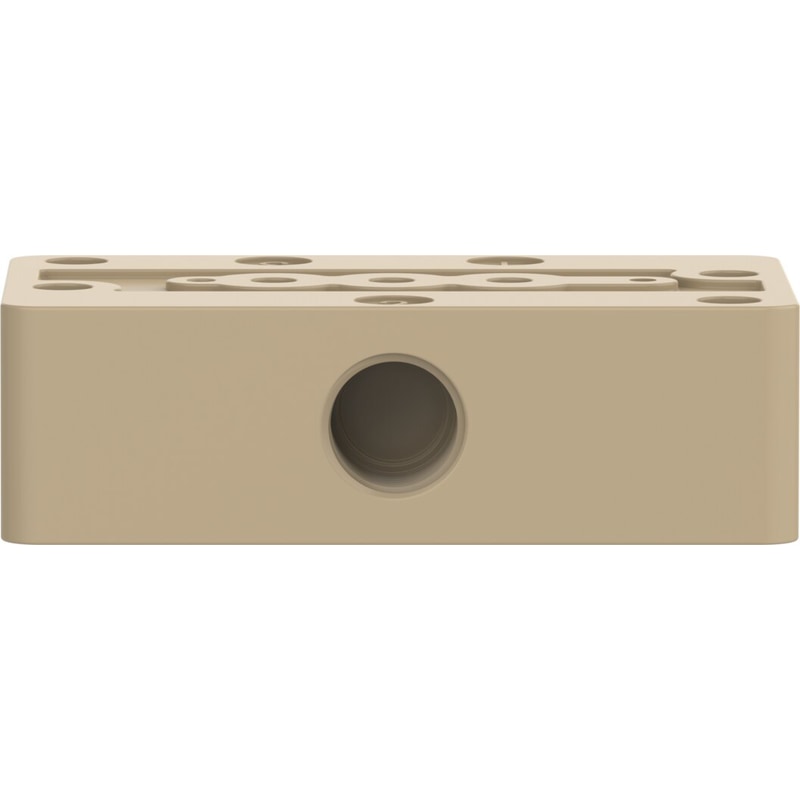

Sub-base
VABS-K2-12S-20-U14-P
8140320
GTIN 4052568567484
Vendor Festo
Regular price
$56.06
Unit price
VABS-K2-12S-20-U14-P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABS-K2-12S-20-U14-P
Regular price
$56.06
Unit price
VABS-K2-12S-20-U14-P is backordered and will ship as soon as it is back in stock.
| Nominal width | 2 mm |
|---|---|
| Fluid connector | Internal thread 1/4-28 UNF-2B |
| Mounting position | Any |
| Structural design | Connection direction at side |
| Flow direction | Non-reversible |
| Operating medium | Liquid media Gaseous media |
| Information on operating and pilot media | Observe resistance of materials that come into contact with media |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS conformity | VDMA24364 zone III |
| Storage temperature | -20 °C ... 70 °C |
| Temperature of medium | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| Max. tightening torque for valve mounting | 0.33 Nm |
| Product weight | 8 g |
| Sub-base mounting type | With through-hole |
| Note on materials | RoHS-compliant |
| Material of sub-base | PEEK |
