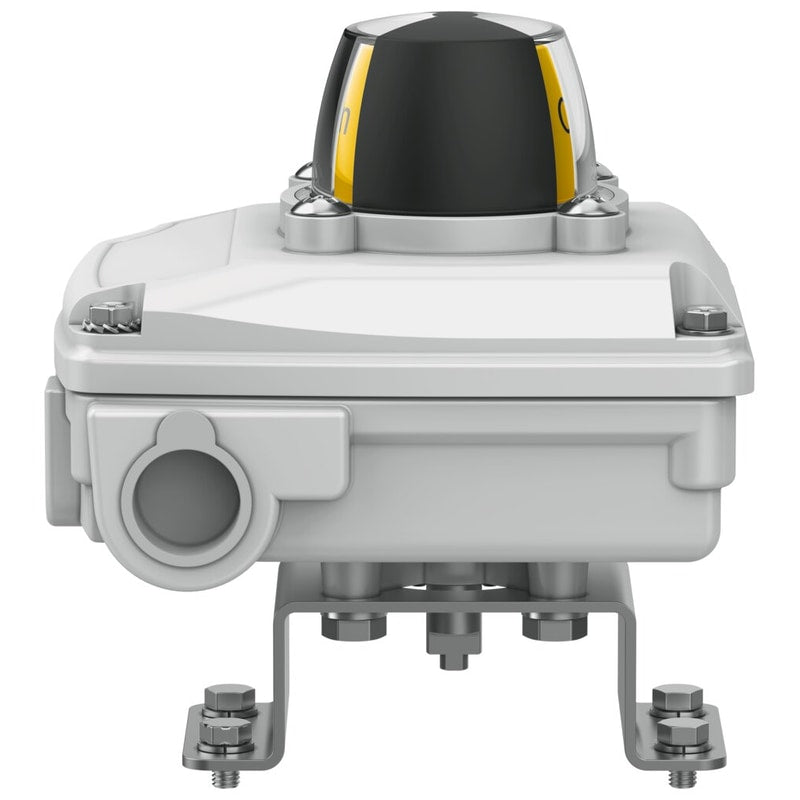

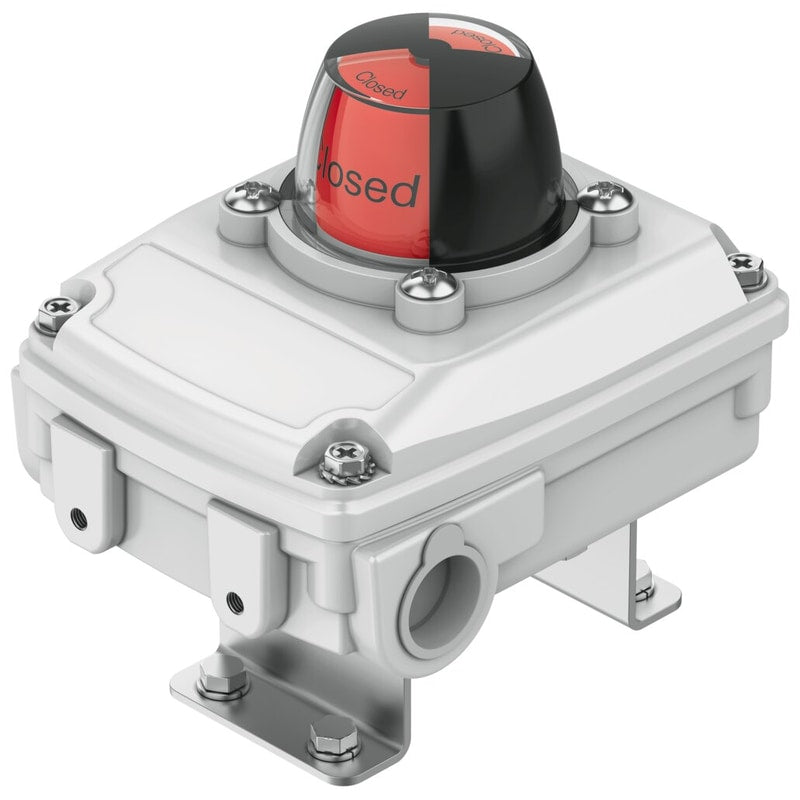

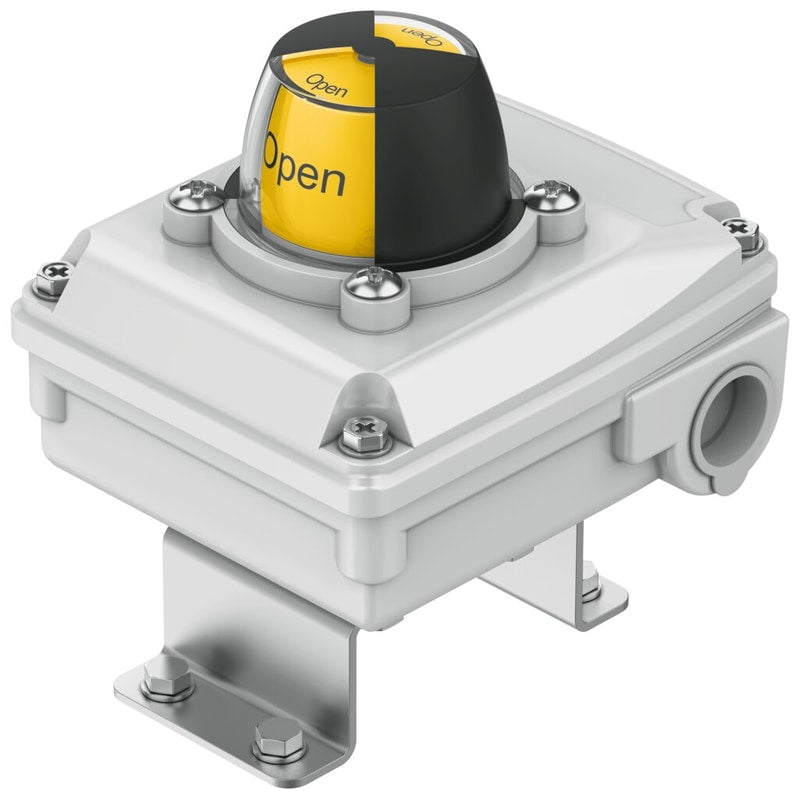

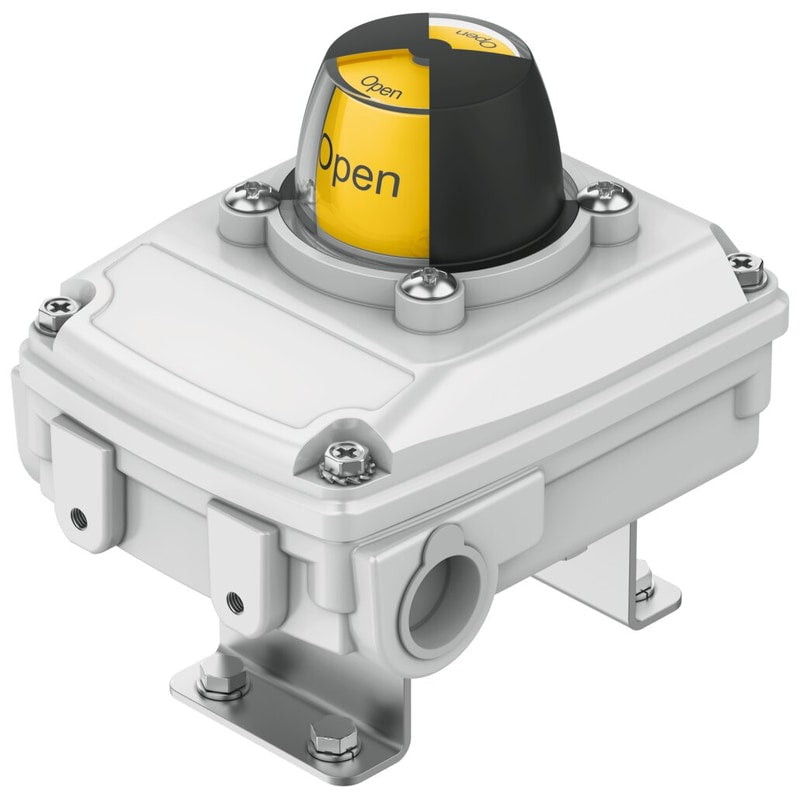

Limit switch box
SRBC-CA3-YR90-MW-1-1WG-M12
8137099
GTIN 4052568586607
Vendor Festo
- DC operating voltage range
- 0 V - 30 V
- Electrical connection
- M12
- Position indicator
- Yellow/red
- Switching element function
- Toggle switch, single-pin
Regular price
$277.26
Unit price
SRBC-CA3-YR90-MW-1-1WG-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBC-CA3-YR90-MW-1-1WG-M12
Regular price
$277.26
Unit price
SRBC-CA3-YR90-MW-1-1WG-M12 is backordered and will ship as soon as it is back in stock.
| CE marking (see declaration of conformity) | As per EU RoHS directive |
|---|---|
| Note on materials | RoHS-compliant |
| Safety integrity level (SIL) | SIL 2 |
| Measuring principle | Mechanical/electrical |
| Ambient temperature | -40 °C ... 80 °C |
| Switching output | Contact-based (gold) |
| Switching element function | Toggle switch, single-pin |
| Max. output current DC | 100 mA |
| DC operating voltage range | 0 V ... 30 V |
| Electrical connection | M12 |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 |
| Electrical connection for input 1, connection pattern | 00995600 |
| Closable nominal conductor cross-section | 0.25 mm² ... 2.5 mm² |
| Cable fitting | M20x1.5 |
| Approved cable diameter | 5 mm ... 13 mm |
| Dimensions W x L x H | 127 mm x 111 mm x 122 mm |
| Connection point for positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1 |
| Mounting position | Any |
| Product weight | 800 g |
| Housing colour | Gray |
| Housing material | Die-cast aluminum |
| Seals material | VMQ (silicone) |
| Shaft material | High-alloy stainless steel |
| Material of screws | High-alloy stainless steel |
| Material of mounting bracket | High-alloy stainless steel |
| Circlip material | High-alloy stainless steel |
| Disc material | High-alloy stainless steel |
| Cover cap material | PC |
| Position indicator | Yellow/red |
| Angle detection setting range | 0 deg ... 90 deg |
| Storage temperature | -20 °C ... 50 °C |
| Degree of protection | IP66 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS conformity | VDMA24364 zone III |
| Contamination level | 3 |
