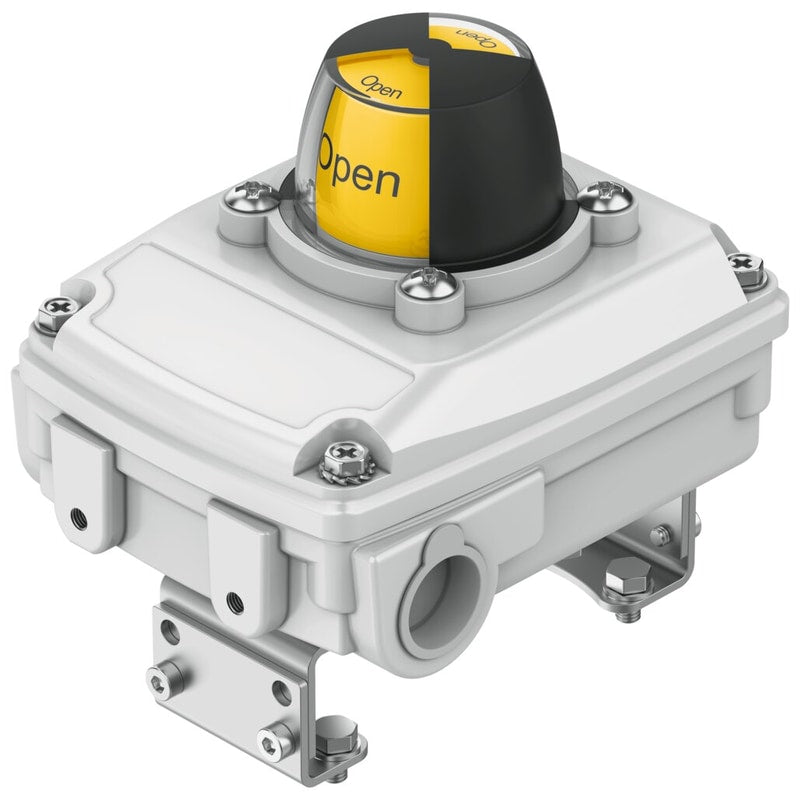

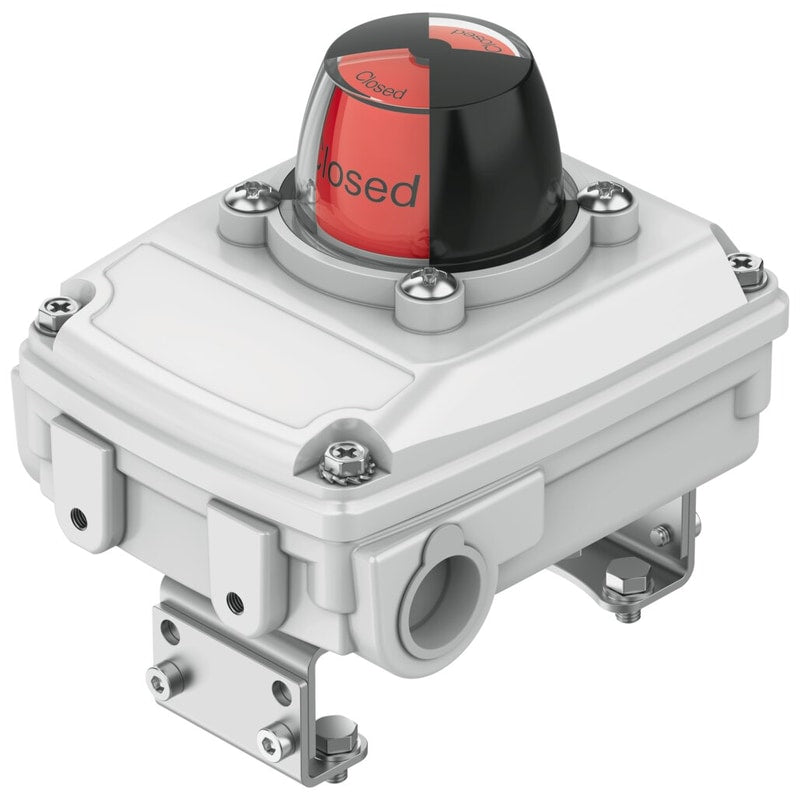

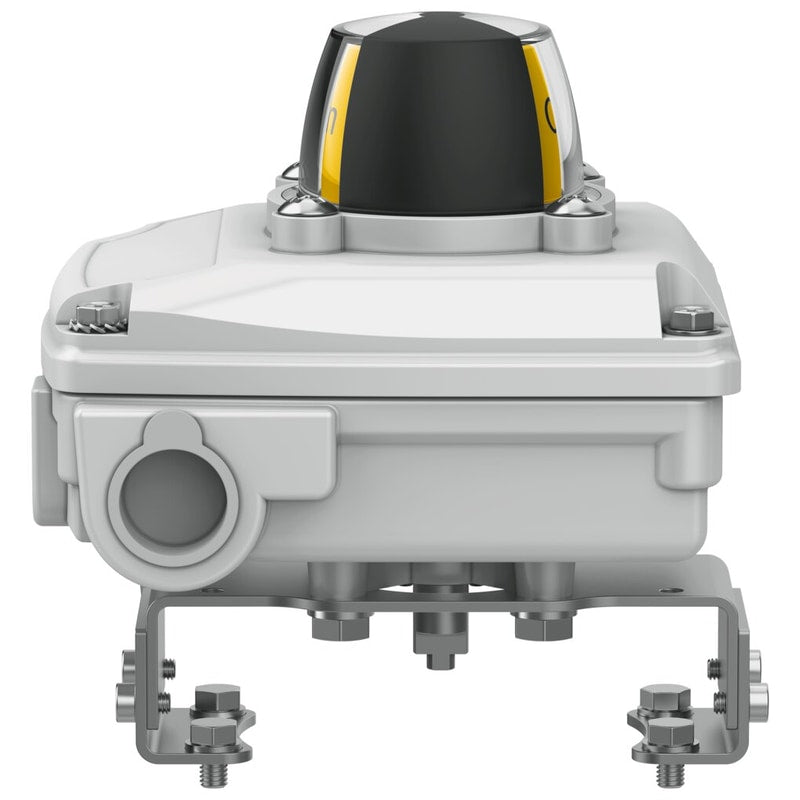

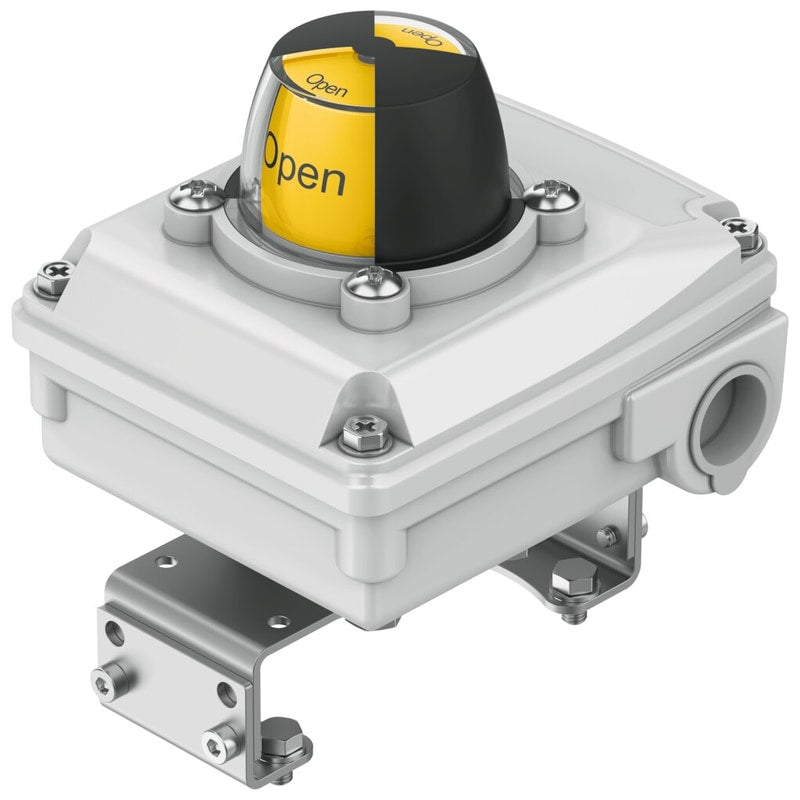

Limit switch box
SRBC-CA4-YR90-MW-1-1WG-C2-EX6
8137095
GTIN 4052568586065
Vendor Festo
- DC operating voltage range
- 0 V - 30 V
- Electrical connection
- Screw terminal
- Position indicator
- Yellow/red
- Switching element function
- Toggle switch, single-pin
Regular price
$242.27
Unit price
SRBC-CA4-YR90-MW-1-1WG-C2-EX6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBC-CA4-YR90-MW-1-1WG-C2-EX6
Regular price
$242.27
Unit price
SRBC-CA4-YR90-MW-1-1WG-C2-EX6 is backordered and will ship as soon as it is back in stock.
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) As per EU RoHS directive |
|---|---|
| Explosion prevention and protection | Zone 0 (ATEX) Zone 1 (ATEX) Zone 2 (ATEX) Zone 20 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) Zone 0 (IEC-EX) Zone 20 (IEC-EX) Zone 0 (CN) Zone 20 (CN) |
| ATEX category gas | II 1G |
| Type of ignition protection for gas | Ex ia IIC T6/T5 Ga |
| ATEX category for dust | II 1D |
| Type of (ignition) protection for dust | Ex ia IIIC Txx°C Da |
| Explosion protection certification outside the EU | EPL Da (CN) EPL Da (IEC-EX) EPL Ga (CN) EPL Ga (IEC-EX) |
| Explosive ambient temperature | See ATEX certificate See IECEx certificate |
| Max. input voltage Vi | 30 V |
| Effective internal inductance Li | Negligibly low |
| Effective internal capacitance Ci | Negligibly low |
| Max. input parameter of intrinsically safe circuit | See IECEx certificate See ATEX certificate |
| Certificate issuing authority | FTZU 17 ATEX 0105X GYJ20.1409X IECEx FTZU 17.0017X |
| Note on materials | RoHS-compliant |
| Safety integrity level (SIL) | SIL 2 |
| Measuring principle | Mechanical/electrical |
| Ambient temperature | -40 °C ... 80 °C |
| Switching output | Contact-based (gold) |
| Switching element function | Toggle switch, single-pin |
| Max. output current DC | 100 mA |
| DC operating voltage range | 0 V ... 30 V |
| Electrical connection | Screw terminal |
| Electrical connection 1, connection type | Terminal strip |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Spring-loaded terminal |
| Electrical connection 1, number of pins/wires | 10 |
| Closable nominal conductor cross-section | 0.25 mm² ... 2.5 mm² |
| Cable fitting | M20x1.5 |
| Approved cable diameter | 6 mm ... 12 mm |
| Dimensions W x L x H | 127 mm x 98 mm x 122 mm |
| Connection point for positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1 VDI/VDE 3845 size AA 2 VDI/VDE 3845 size AA 3 |
| Mounting position | Any |
| Product weight | 800 g |
| Housing colour | Gray |
| Housing material | Die-cast aluminum |
| Seals material | VMQ (silicone) |
| Shaft material | High-alloy stainless steel |
| Material of screws | High-alloy stainless steel |
| Material of mounting bracket | High-alloy stainless steel |
| Circlip material | High-alloy stainless steel |
| Disc material | High-alloy stainless steel |
| Cover cap material | PC |
| Position indicator | Yellow/red |
| Angle detection setting range | 0 deg ... 90 deg |
| Storage temperature | -20 °C ... 50 °C |
| Degree of protection | IP66 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS conformity | VDMA24364 zone III |
| Contamination level | 3 |
