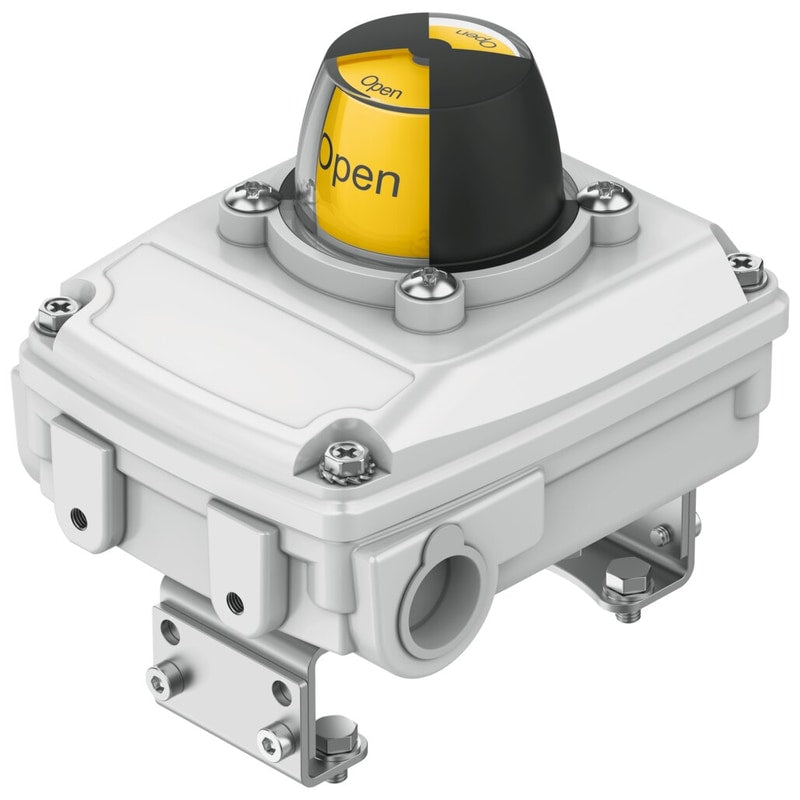

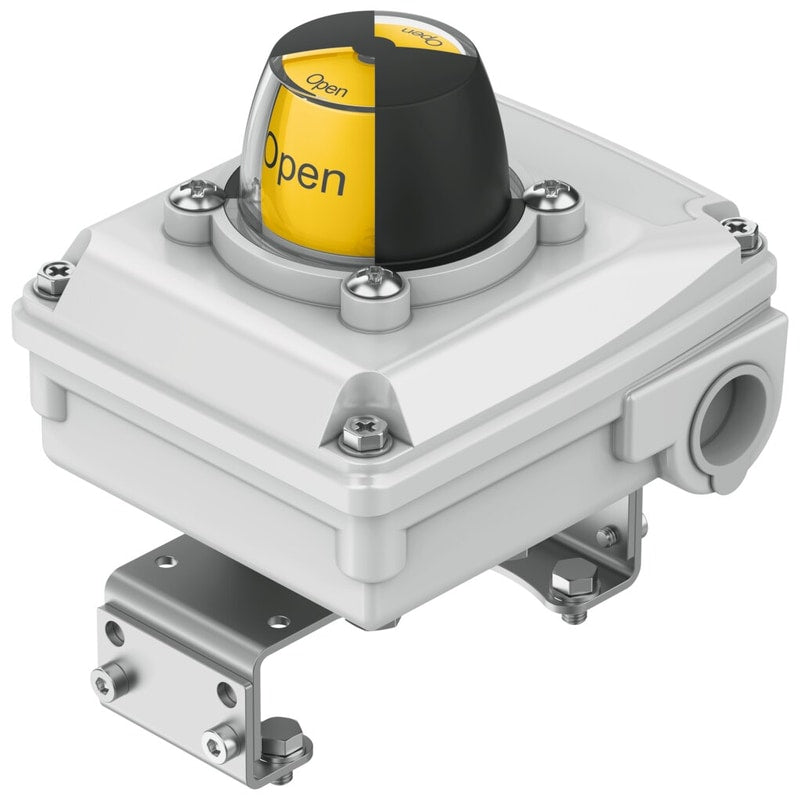

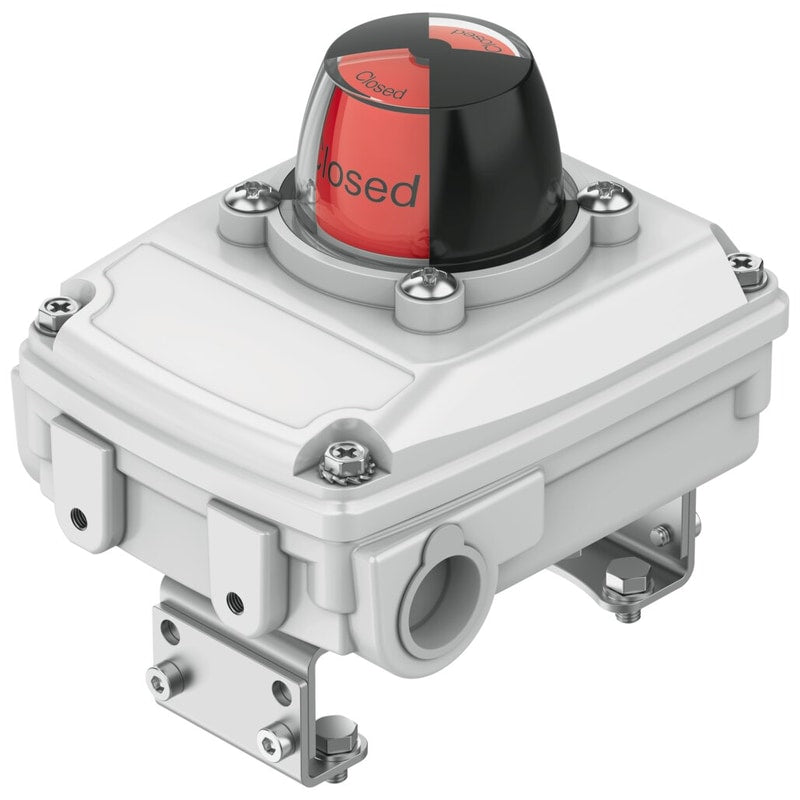

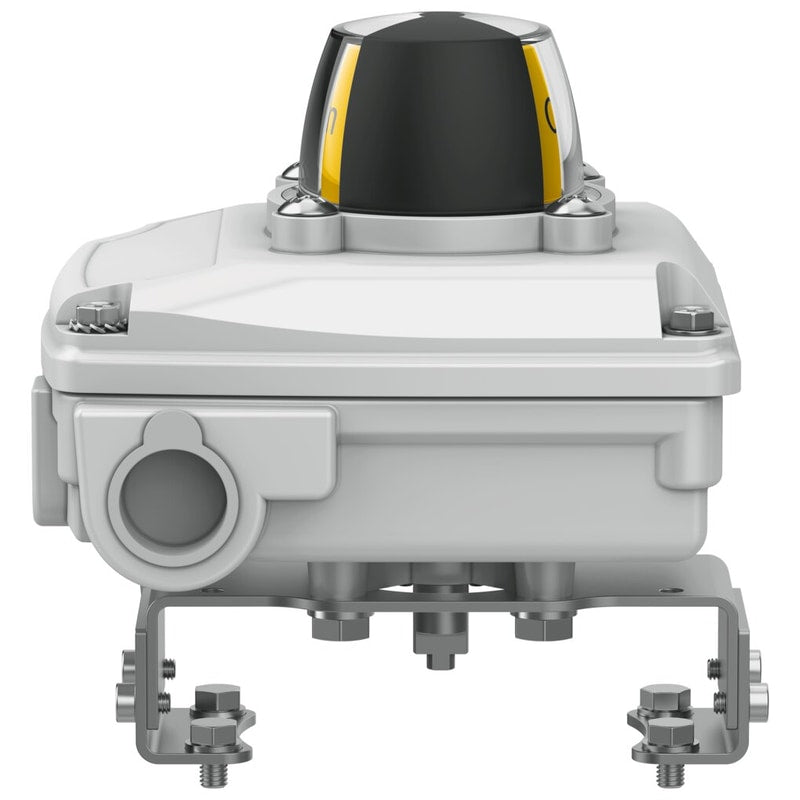

Limit switch box
SRBC-CA4-YR90-MW-22A-1W-C2
8137094
GTIN 4052568586058
Vendor Festo
- DC operating voltage range
- 0 V - 30 V
- Electrical connection
- Screw terminal
- Position indicator
- Yellow/red
- Switching element function
- Toggle switch, single-pin
Regular price
$134.31
Unit price
SRBC-CA4-YR90-MW-22A-1W-C2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBC-CA4-YR90-MW-22A-1W-C2
Regular price
$134.31
Unit price
SRBC-CA4-YR90-MW-22A-1W-C2 is backordered and will ship as soon as it is back in stock.
| Certification | c CSA us (OL) |
|---|---|
| CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive |
| Note on materials | RoHS-compliant |
| Safety integrity level (SIL) | SIL 2 |
| Measuring principle | Mechanical/electrical |
| Ambient temperature | -20 °C ... 80 °C |
| Switching output | Contact-based |
| Switching element function | Toggle switch, single-pin |
| Max. output current AC | 3000 mA |
| Max. output current DC | 3000 mA |
| Operating voltage range AC | 0 V ... 250 V |
| DC operating voltage range | 0 V ... 30 V |
| Electrical connection | Screw terminal |
| Electrical connection 1, connection type | Terminal strip |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Spring-loaded terminal |
| Electrical connection 1, number of pins/wires | 10 |
| Closable nominal conductor cross-section | 0.25 mm² ... 2.5 mm² |
| Cable fitting | M20x1.5 |
| Approved cable diameter | 5 mm ... 13 mm |
| Dimensions W x L x H | 127 mm x 98 mm x 122 mm |
| Connection point for positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1 VDI/VDE 3845 size AA 2 VDI/VDE 3845 size AA 3 |
| Mounting position | Any |
| Product weight | 800 g |
| Housing colour | Gray |
| Housing material | Die-cast aluminum |
| Seals material | NBR |
| Shaft material | High-alloy stainless steel |
| Material of screws | High-alloy stainless steel |
| Material of mounting bracket | High-alloy stainless steel |
| Circlip material | High-alloy stainless steel |
| Disc material | High-alloy stainless steel |
| Cover cap material | PC |
| Position indicator | Yellow/red |
| Angle detection setting range | 0 deg ... 90 deg |
| Storage temperature | -20 °C ... 50 °C |
| Degree of protection | IP67 NEMA 4/4X |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS conformity | VDMA24364 zone III |
| Contamination level | 3 |
