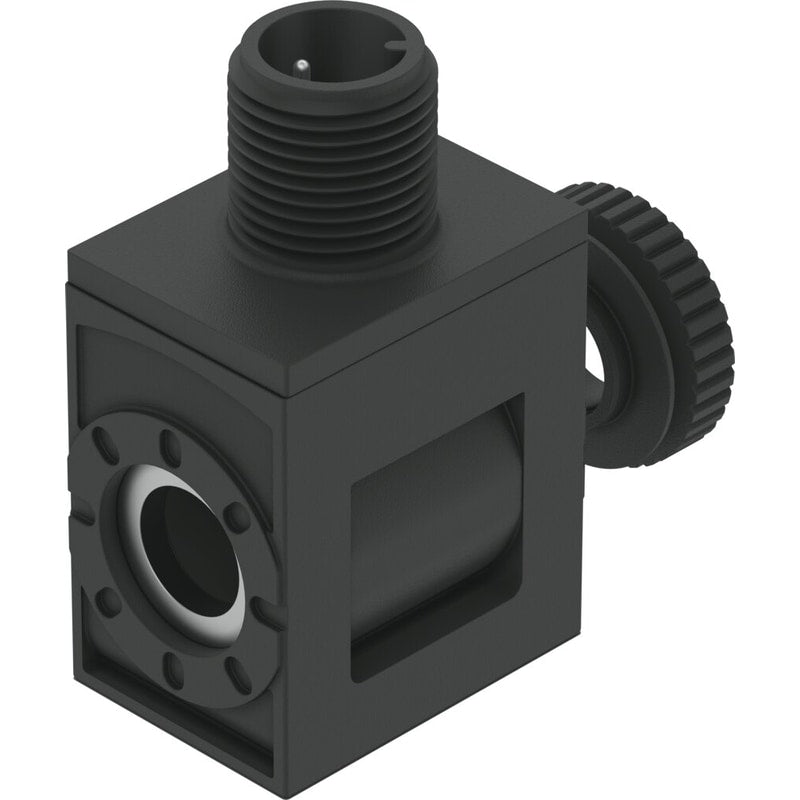

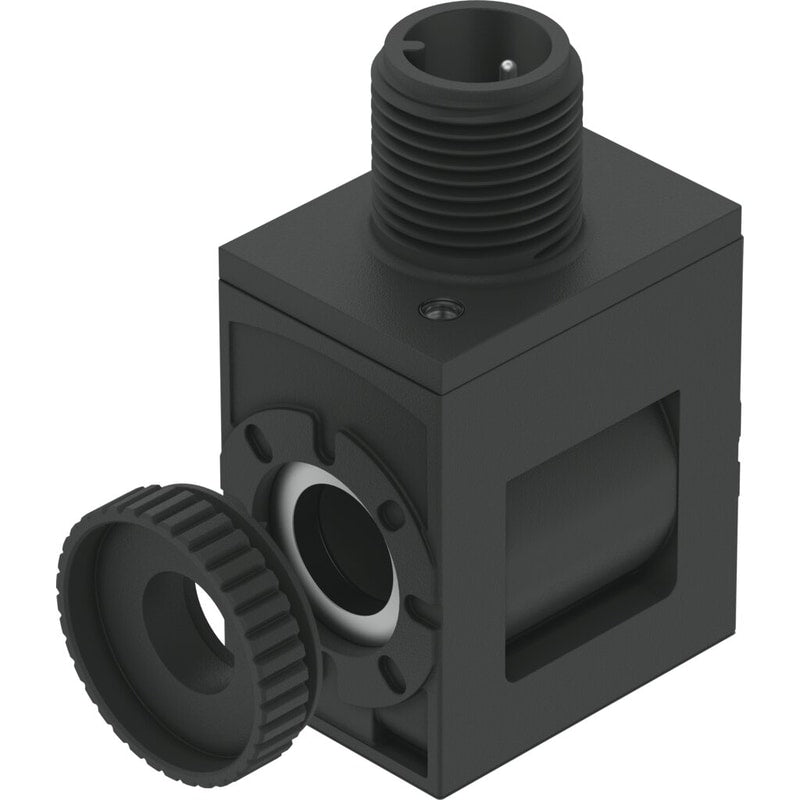

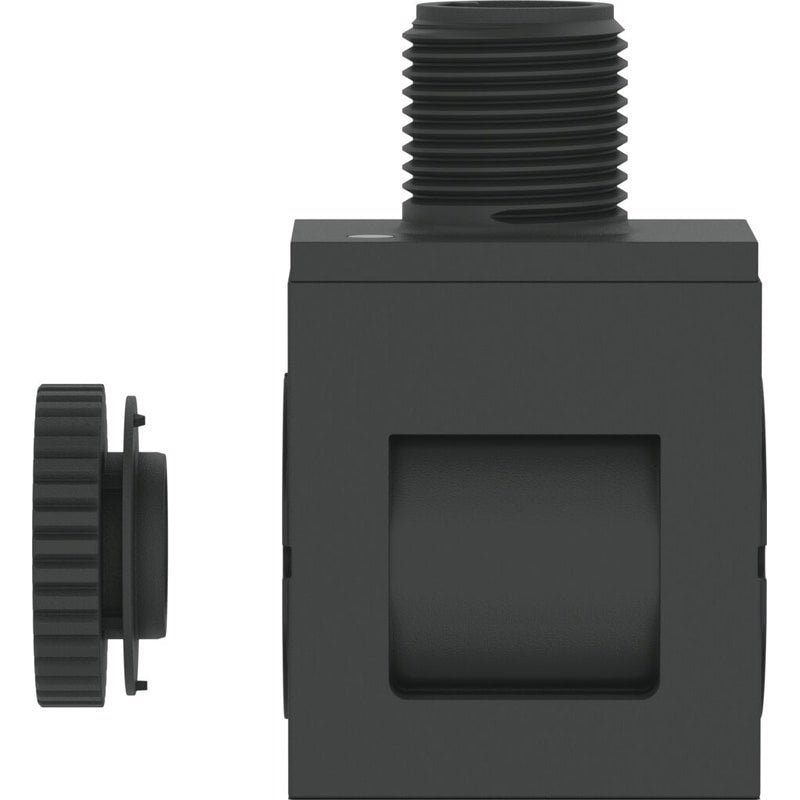

Solenoid coil
VACS-C-R3-1RL
8135822
GTIN 4052568563226
Vendor Festo
- Electrical connection
- M12x1, A-coded as per EN 61076-2-101
- Type of mounting
- With knurled nut
- Coil characteristics
- 24 V DC: low-current phase 0.36 W, high-current phase 2.6 W
- Degree of protection
- IP65
Regular price
$13.71
Unit price
VACS-C-R3-1RL is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACS-C-R3-1RL
Regular price
$13.71
Unit price
VACS-C-R3-1RL is backordered and will ship as soon as it is back in stock.
| Mounting position | Any |
|---|---|
| Signal status display | LED |
| Max. switching frequency | 5 Hz |
| Duty cycle | 100% |
| Enameled wire insulation class | H |
| Nominal pick-up current per solenoid coil | 108 mA till 80 ms |
| Nominal current with current reduction | 15 mA after 80 ms |
| Coil characteristics | 24 V DC: low-current phase 0.36 W, high-current phase 2.6 W |
| Permissible voltage fluctuations | +/- 10 % |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Degree of protection | IP65 |
| Ambient temperature | -10 °C ... 60 °C |
| Max. cable length | 30 m |
| Electrical connection | M12x1, A-coded as per EN 61076-2-101 |
| Type of mounting | With knurled nut |
| Note on materials | RoHS-compliant |
| Housing material | PA Steel |
| Solenoid coil material | Copper Steel Thermoplastic |
| Material of winding | Copper |
