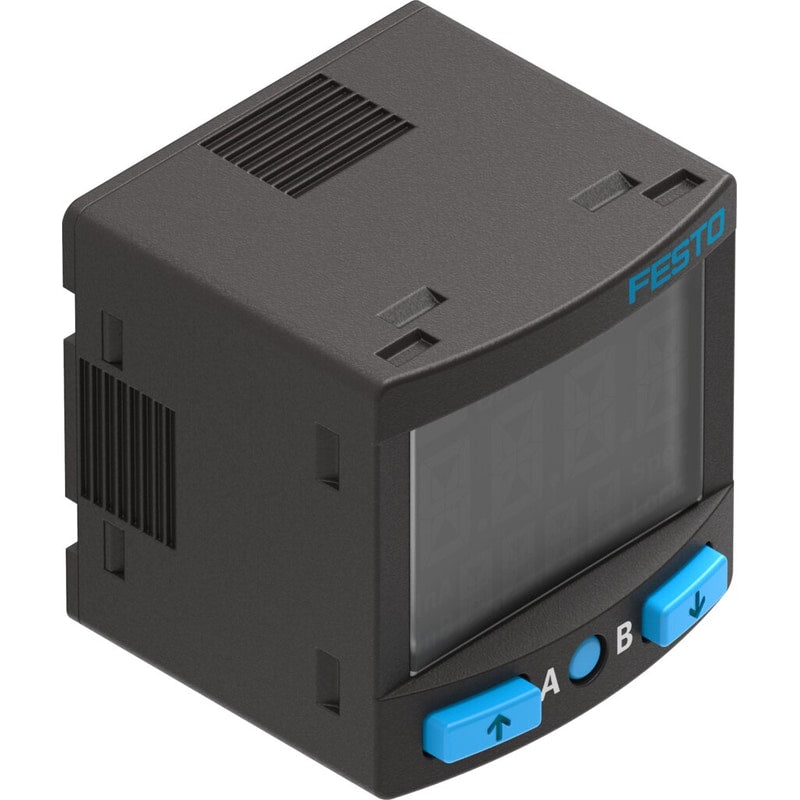

Pressure sensor
SPAN-P10R-G18F-PNLK-PNVBA-L1
8134897
GTIN 4052568553173
Vendor Festo
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- 10 bar
- Switching element function
- N/C contact/N/O contact switchable
- Pneumatic connection
- Internal thread G1/8
- Analog output
- 0 - 10 V - 4 - 20 mA - 1 - 5 V
Regular price
$184.65
Unit price
SPAN-P10R-G18F-PNLK-PNVBA-L1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPAN-P10R-G18F-PNLK-PNVBA-L1
Regular price
$184.65
Unit price
SPAN-P10R-G18F-PNLK-PNVBA-L1 is backordered and will ship as soon as it is back in stock.
| Type code | SPAN |
|---|---|
| Electrical connection 1, connection technology | Connection diagram L1J |
| Electrical connection for input 1, connection pattern | 00995428 |
| KC characters | KC EMC |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, number of pins/wires | 4 |
| Pressure measuring range initial value | 0 MPa |
| Pressure measuring range end value | 145 psi |
| Overload pressure | 1.5 MPa |
| Overload pressure | 15 bar |
| Overload pressure | 217.5 psi |
| Pressure measuring range end value | 1 MPa |
| Pressure measuring range initial value | 0 psi |
| Symbol | 00995685 |
| Certification | RCM compliance mark c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| Certificate issuing authority | UL E322346 |
| Note on materials | RoHS-compliant |
| Measured variable | Relative pressure |
| Method of measurement | Piezoresistive pressure sensor |
| Pressure measuring range initial value | 0 bar |
| Pressure measuring range end value | 10 bar |
| Max. overload pressure | 15 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| Accuracy in ± % FS | 1.5 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature co-efficient in ± %FS/K | 0.05 %FS/K |
| Switching output | 2 x PNP or 2 x NPN switchable |
| Switching function | Window comparator Threshold value comparator Auto difference monitoring |
| Switching element function | N/C contact/N/O contact switchable |
| Max. output current | 100 mA |
| Analog output | 0 - 10 V 4 - 20 mA 1 - 5 V |
| Max. load resistance of current output | 500 Ohm |
| Min. load resistance of voltage output | 20 kOhm |
| Short-circuit protection | yes |
| Protocol | IO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, profile | Smart sensor profile |
| IO-Link®, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel |
| IO-Link®, communication mode | COM2 (38,4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width OUT | 0 Byte |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, process data content IN | 14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring) |
| IO-Link®, minimum cycle time | 3 ms |
| IO-Link®, data memory required | 500 byte |
| DC operating voltage range | 15 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Type of mounting | Front panel mounting With thread With wall/surface bracket |
| Mounting position | Any |
| Pneumatic connection | Internal thread G1/8 |
| Product weight | 34 g |
| Housing material | PA-reinforced |
| Materials in contact with the media | FPM Brass, nickel-plated NBR PA-reinforced |
| Display type | Illuminated LCD |
| Displayable unit(s) | MPa bar inchH2O inchHg kPa kgf/cm² mbar mmHg psi |
| Setting options | IO-Link® Teach-in Via display and pushbuttons |
| Protection against tampering | IO-Link® PIN code |
| Setting range threshold value | 0 % ... 100 % |
| Setting range hysteresis | 0 % ... 90 % |
| Degree of protection | IP40 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
