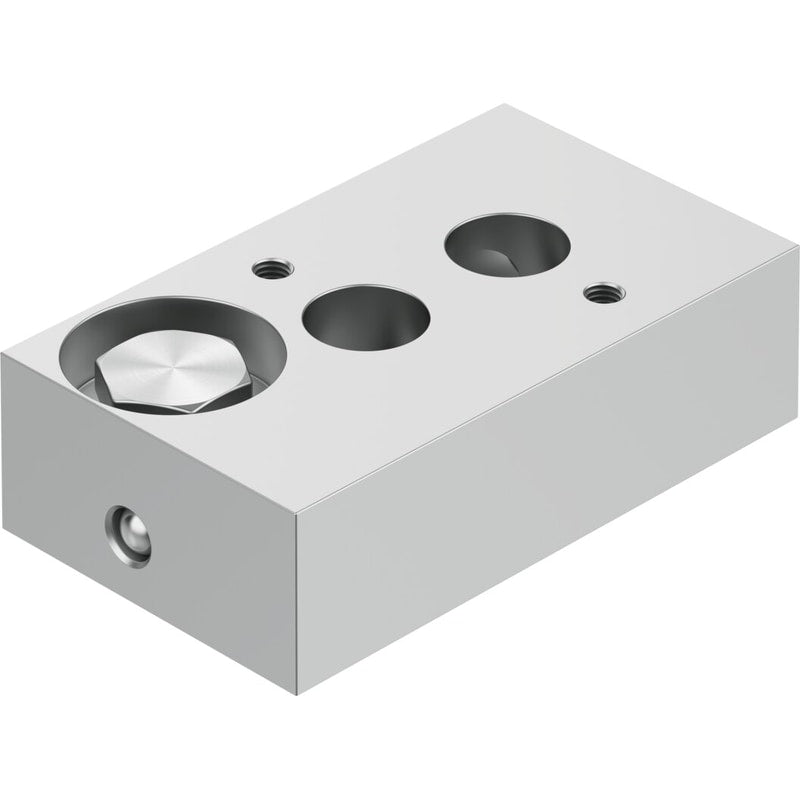

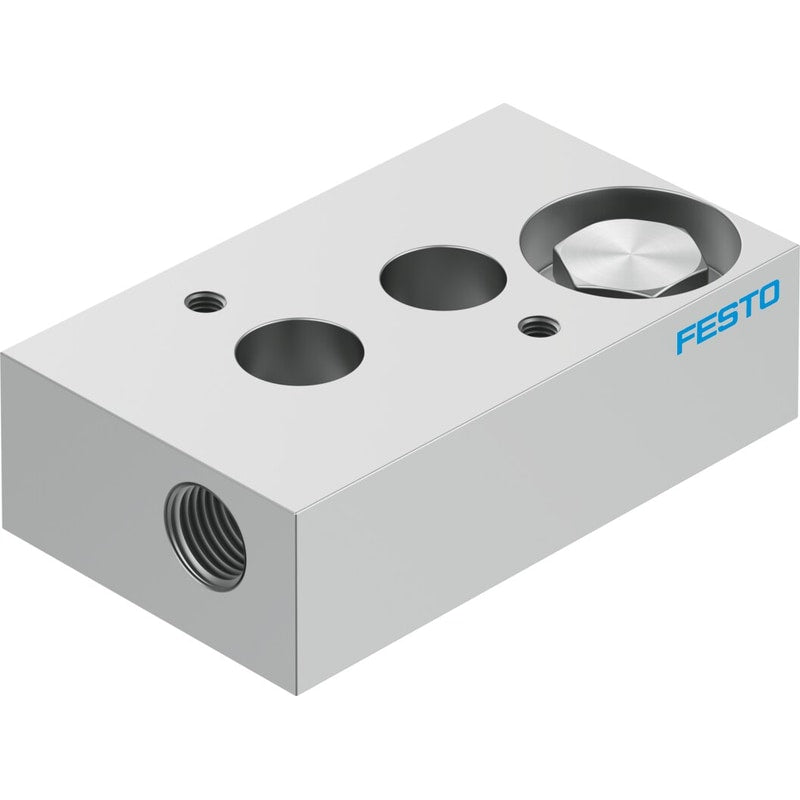

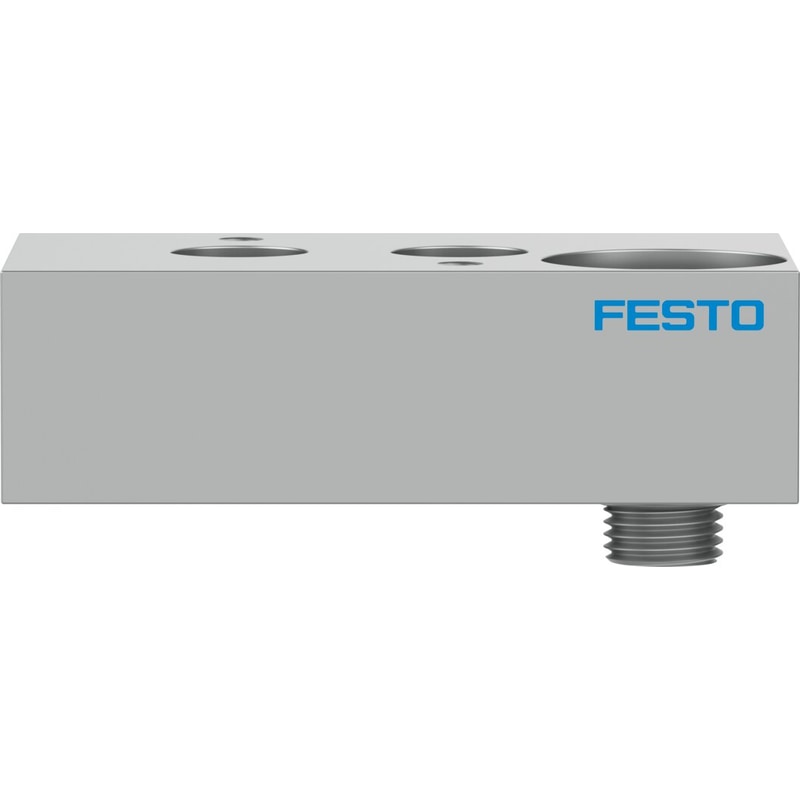

Control plate
DADG-FM-VDE1G14
8131548
GTIN 4052568563172
Vendor Festo
Regular price
$90.95
Unit price
DADG-FM-VDE1G14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADG-FM-VDE1G14
Regular price
$90.95
Unit price
DADG-FM-VDE1G14 is backordered and will ship as soon as it is back in stock.
| Based on norm | VDI/VDE 3845 (NAMUR) |
|---|---|
| Mounting position | Any |
| Operating pressure | 0.2 MPa ... 0.8 MPa |
| Operating pressure | 2 bar ... 8 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Ambient temperature | -20 °C ... 80 °C |
| Max. tightening torque | 23 Nm |
| Product weight | 274.5 g |
| Type of mounting | Threaded direct mounting on end cap |
| Pneumatic connection | G1/4 |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Seals material | NBR High-alloy stainless steel |
| Housing material | Aluminum, anodized |
| Material of screws | Brass, nickel-plated |
