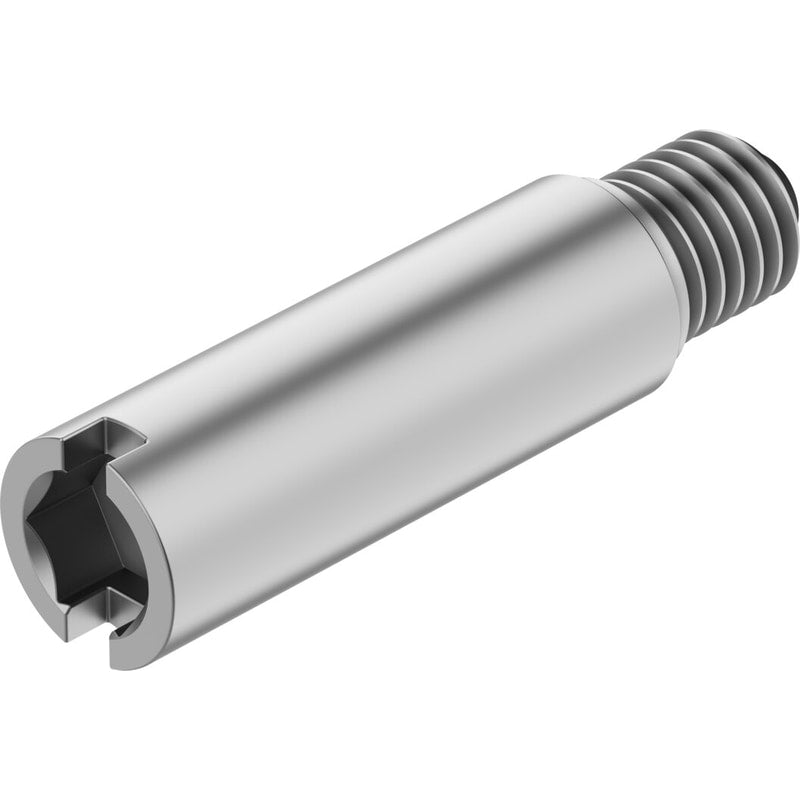

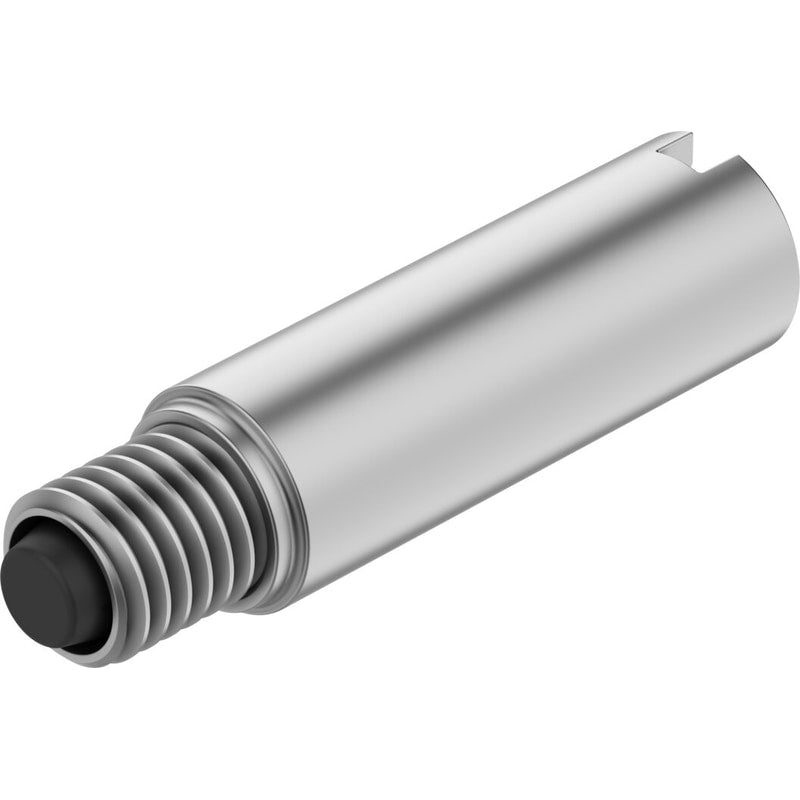

Shock absorber
DYEF-G8-M10-Y1-F1A
8131074
GTIN 4052568562120
Vendor Festo
Regular price
$31.41
Unit price
DYEF-G8-M10-Y1-F1A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DYEF-G8-M10-Y1-F1A
Regular price
$31.41
Unit price
DYEF-G8-M10-Y1-F1A is backordered and will ship as soon as it is back in stock.
| Size | M10 |
|---|---|
| Stroke | 1mm |
| Cushioning | Elastic cushioning rings/pads at both ends, without fixed metal stop |
| Mounting position | Any |
| Position sensing | None |
| Variants | Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| Max. impact velocity | 0.8m/s |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C |
| Cushioning length | 1mm |
| Max. tightening torque | 3Nm |
| Max. energy absorption per stroke | 0.25J |
| Product weight | 41g |
| Type of mounting | With threaded sleeve |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | High-alloy steel |
