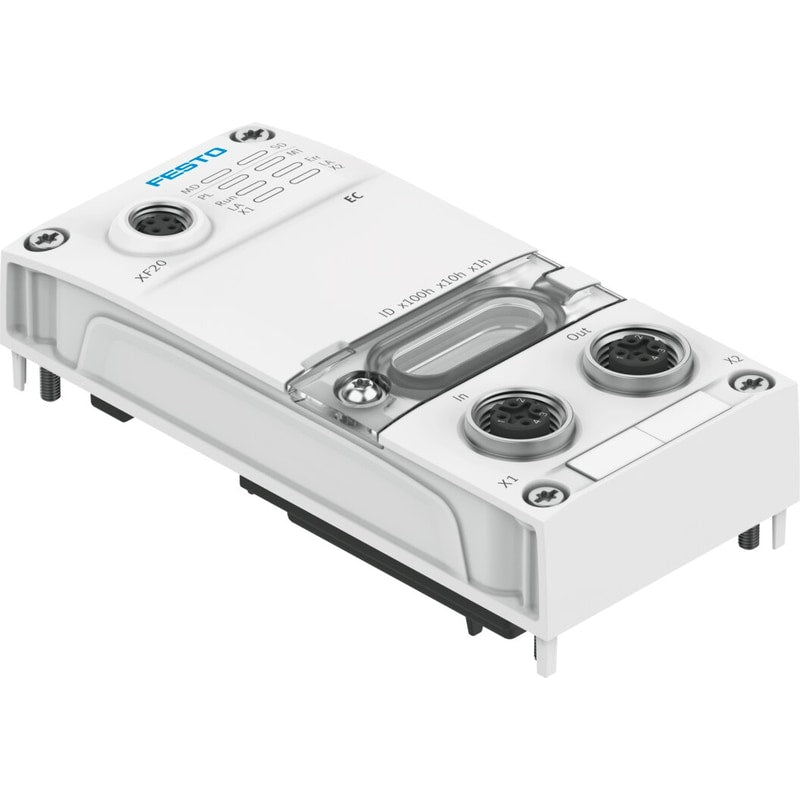

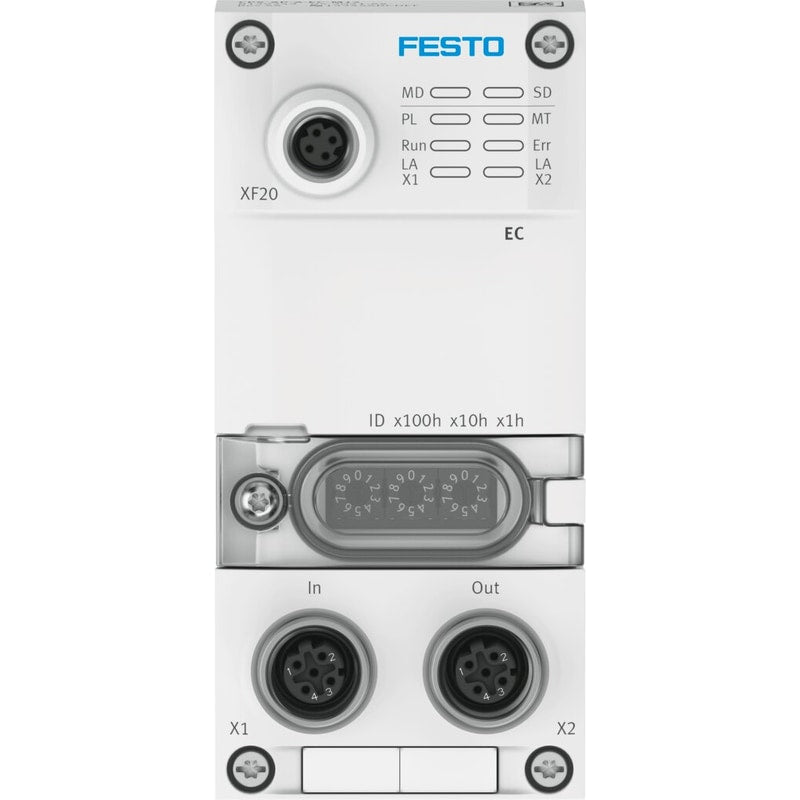

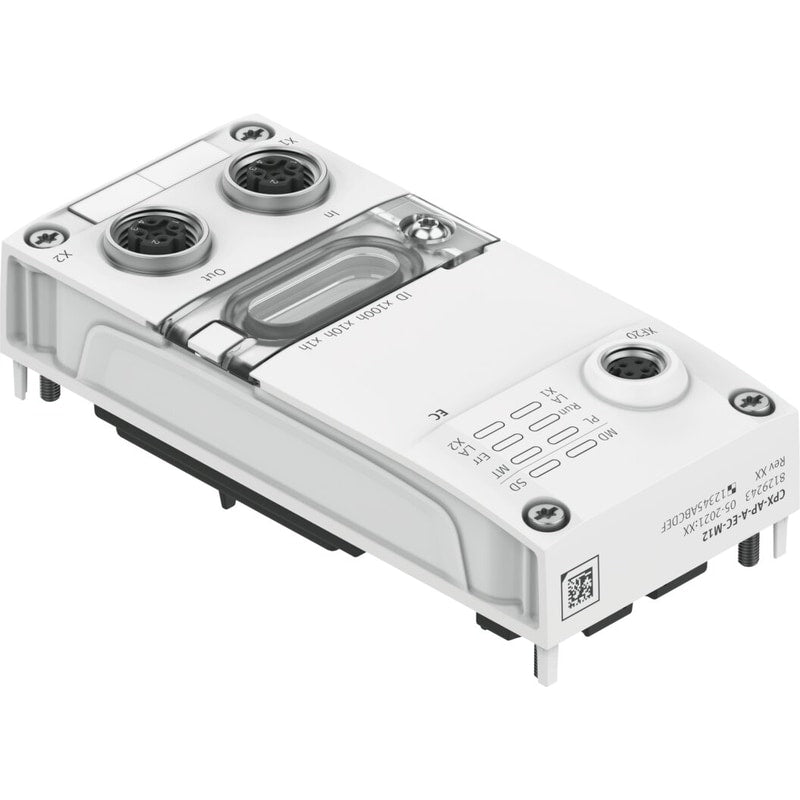

EtherCAT interface
CPX-AP-A-EC-M12
8129243
GTIN 4052568589646
Vendor Festo
Regular price
$565.13
Unit price
CPX-AP-A-EC-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-AP-A-EC-M12
Regular price
$565.13
Unit price
CPX-AP-A-EC-M12 is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | (incl. interlinking block) |
|---|---|
| Width dimension | 50.1mm |
| Type of mounting | Screwed tightly |
| Max. number of modules | 80 |
| Product weight | 113g |
| Mounting position | Any |
| Ambient temperature | -20°C |
| Note on ambient temperature | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Storage temperature | -20°C |
| Relative air humidity | 5 - 95 % |
| Nominal altitude of use above sea level | <= 2000 m ASL (> 79.5 kPa) |
| Max. installation height | 3500m |
| Information on max. installation height | > 2000 m ASL (< 79.5 kPa) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Note on vibration resistance | SG1 on H-rail |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Note on shock resistance | 30 g/11 ms as per EN 60068-2-27 |
| Protection class | III |
| Contamination level | 2 |
| Overvoltage category | II |
| Max. cable length | 100 m EtherCAT |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Material fire test | UL94 V-0 (housing) |
| Note on materials | RoHS-compliant |
| Housing material | PC |
| Cover material | PBT-reinforced |
| Inspection window material | PC |
| Material of screws | Steel, nickel-plated |
| Threaded sleeve material | High-alloy stainless steel |
| O-ring material | FPM |
| Diagnostics via LED | Diagnostics per module |
| Diagnostics via bus | APDD invalid |
| Fieldbus interface, type | Ethernet |
| Fieldbus interface, protocol | EtherCAT |
| Fieldbus interface, function | Bus connection, incoming/forwarding |
| Fieldbus interface, connection type | 2x socket |
| Fieldbus interface, connection technology | M12x1, D-coded as per EN 61076-2-101 |
| Fieldbus interface, connection pattern | 00995716 |
| Fieldbus interface, number of poles/wires | 4 |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Fieldbus interface, note on transmission rate | 100 Mbit, switched fast Ethernet |
| Max. address capacity inputs | 1024byte |
| Max. address capacity outputs | 1024byte |
| Module parameters | Configuration of voltage monitoring, load supply PL |
| Internal cycle time | < 1 ms |
| Configuration support | ESI file |
| Communication interface, function | System communication XF20 OUT |
| Communication interface, connection type | Socket |
| Communication interface, connection technology | M8x1, D-coded as per EN 61076-2-114 |
| Communication interface, number of pins/wires | 4 |
| Communication interface, connection pattern | 00995937 |
| Communication interface, protocol | AP |
| Communication interface, shielding | yes |
| Note regarding operating voltage | SELV/PELV fixed power supplies required |
| Note on nominal operating voltage DC | Protected Extra-Low-Voltage as per IEC 60204-1 |
| Nominal operating voltage DC load | 24V |
| Permissible voltage fluctuations load | ± 25 % |
| Nominal operating voltage DC for electronics/sensors | 24V |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 95 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 3 mA |
| Power failure buffering | 10ms |
| Potential separation between the supply voltages electronics/sensor technology and load/valves | yes |
| Reverse polarity protection | yes |
