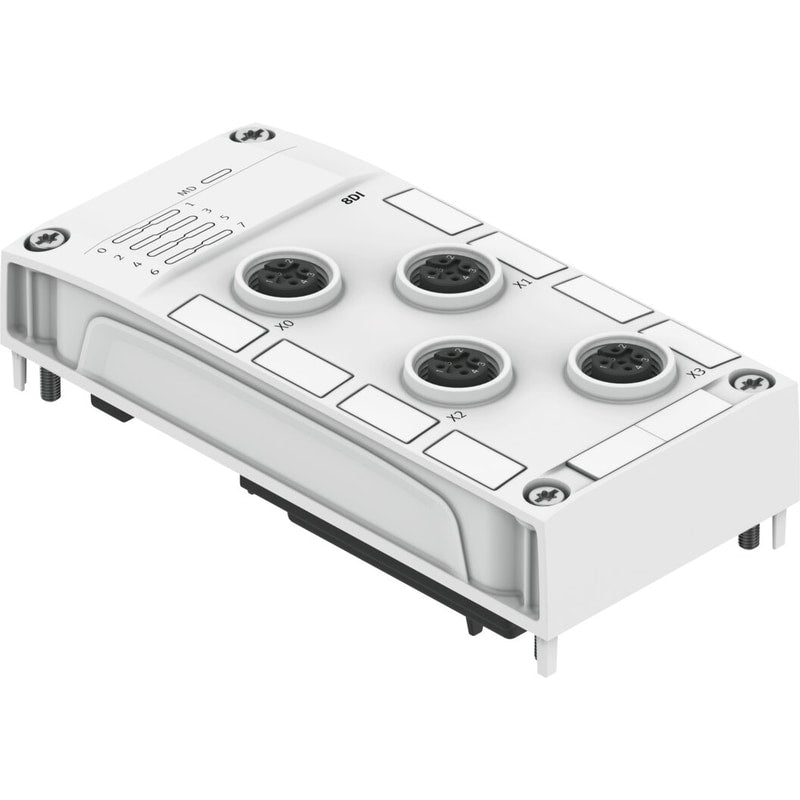

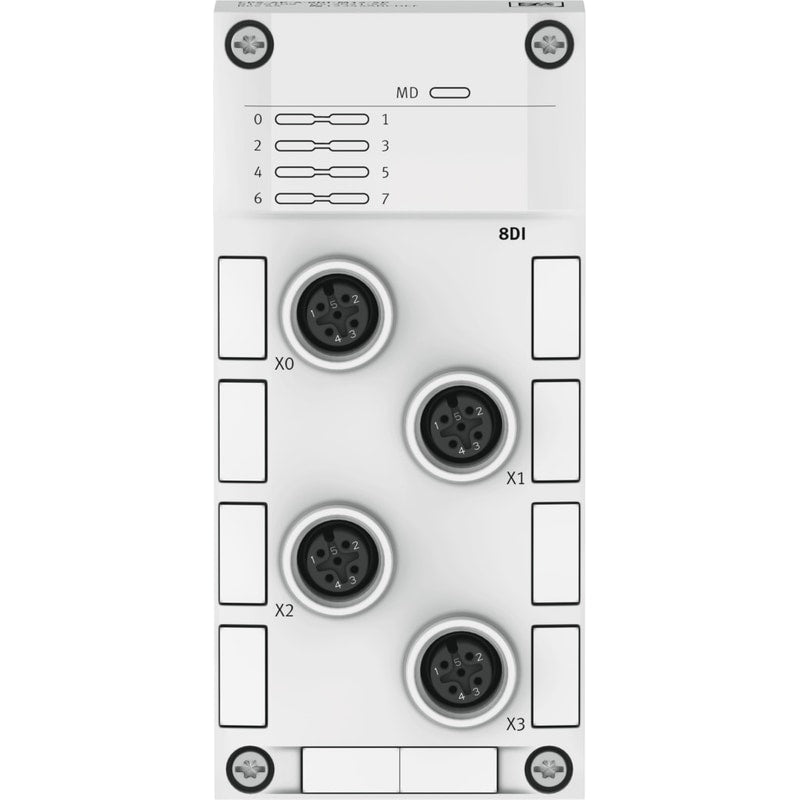

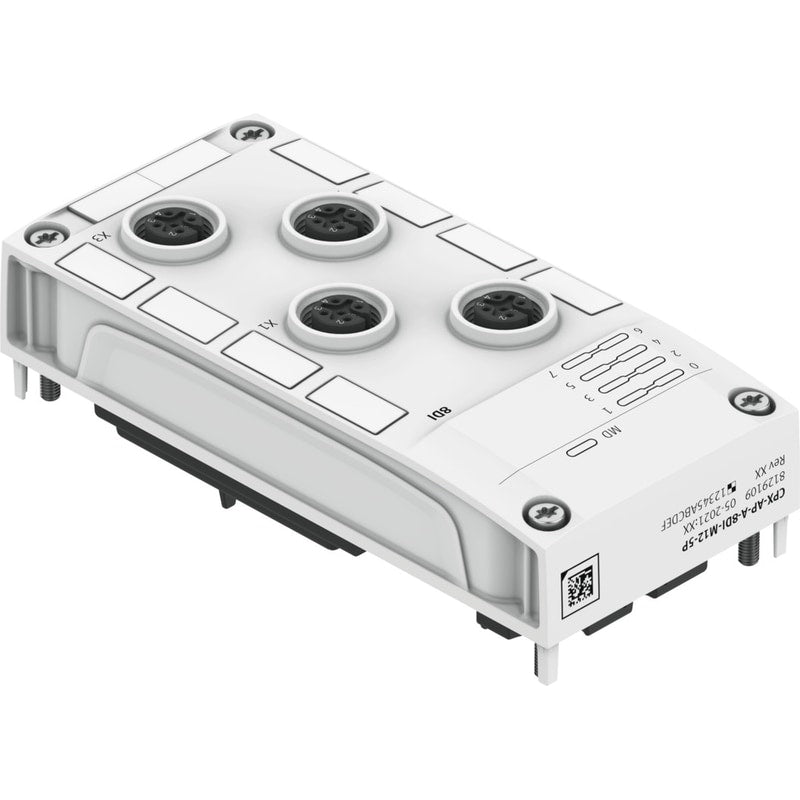

Digital input module
CPX-AP-A-8DI-M12-5P
8129109
GTIN 4052568598563
Vendor Festo
Regular price
$204.61
Unit price
CPX-AP-A-8DI-M12-5P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-AP-A-8DI-M12-5P
Regular price
$204.61
Unit price
CPX-AP-A-8DI-M12-5P is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | (incl. interlinking block) |
|---|---|
| Width dimension | 50.1mm |
| Type of mounting | Screwed tightly |
| Product weight | 87g |
| Mounting position | Any |
| Ambient temperature | -20°C |
| Note on ambient temperature | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Storage temperature | -20°C |
| Relative air humidity | 5 - 95 % |
| Nominal altitude of use above sea level | <= 2000 m ASL (> 79.5 kPa) |
| Max. installation height | 3500m |
| Information on max. installation height | > 2000 m ASL (< 79.5 kPa) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Note on vibration resistance | SG1 on H-rail |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Note on shock resistance | 30 g/11 ms as per EN 60068-2-27 |
| Protection class | III |
| Contamination level | 2 |
| Overvoltage category | II |
| Max. cable length | 30 m inputs |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Material fire test | UL94 V-0 (housing) |
| Note on materials | RoHS-compliant |
| Housing material | PC |
| Cover material | PBT-reinforced |
| Material of screws | Steel, nickel-plated |
| O-ring material | FPM |
| Diagnostics via LED | Diagnostics per module |
| Diagnose per internal communication | Communication error |
| Max. address capacity inputs | 1byte |
| Channel parameters | Input debounce time |
| Communication interface, protocol | AP |
| Note regarding operating voltage | SELV/PELV fixed power supplies required |
| Note on nominal operating voltage DC | Protected Extra-Low-Voltage as per IEC 60204-1 |
| Nominal operating voltage DC for electronics/sensors | 24V |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 40 mA |
| Power failure buffering | 10ms |
| Reverse polarity protection | yes |
| Electrical connection input, function | Digital input |
| Electrical connection input, connection type | 4x socket |
| Electrical input connection, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection, input, number of pins/wires | 5 |
| Electrical connection for input, connection pattern | 00995384 |
| No. of inputs | 8 |
| Input characteristics | As per IEC 61131-2, type 3 |
| Switching level | Signal 0: <= 5 V |
| Input switching logic | PNP (positive switching) |
| Input debounce time | 0.1 ms |
| Fuse protection inputs (short circuit) | Internal electronic fuse per module |
| Max. residual current of inputs per module | 1.8A |
| Electrical isolation of inputs between channels | no |
| Digital inputs, electrical isolation of input - internal communication | yes |
