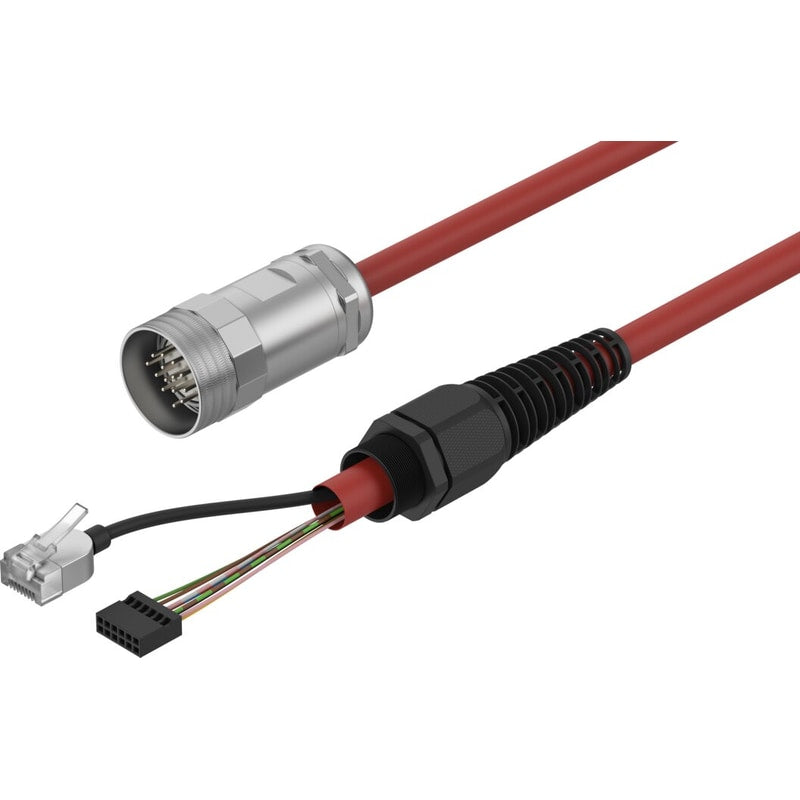

Connecting cable
NEBC-R3Z12G20-KH-5-N-SBS-RSG17-ET-S1
8126916
GTIN 4052568560935
Vendor Festo
- Electrical connection 1, connection type
- Plug and socket strip
- Electrical connection 1, connection technology
- RJ45 and socket strip, 12 pins, 2 rows
- Electrical connection 2, connection type
- Hybrid plug
- Cable length
- 5 m
Regular price
$496.58
Unit price
NEBC-R3Z12G20-KH-5-N-SBS-RSG17-ET-S1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBC-R3Z12G20-KH-5-N-SBS-RSG17-ET-S1
Regular price
$496.58
Unit price
NEBC-R3Z12G20-KH-5-N-SBS-RSG17-ET-S1 is backordered and will ship as soon as it is back in stock.
| Cable designation | Without label holder |
|---|---|
| Product weight | 680 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Plug and socket strip |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | RJ45 and socket strip, 12 pins, 2 rows |
| Electrical connection 1, number of pins/wires | 20 |
| Electrical connection 1, occupied pins/wires | 14 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00997347 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Hybrid plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, number of pins/wires | 17 |
| Electrical connection 2, occupied pins/wires | 14 |
| Electrical connection 2, type of mounting | Threaded |
| Electrical connection 2, connection pattern | 00997346 |
| DC operating voltage range | 0 V ... 24 V |
| Nominal operating voltage DC | 24 V |
| Current rating at 40°C | 11.7 A |
| Surge resistance | 6 kV |
| Shield | no |
| Cable length | 5 m |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 130 mm |
| Bending radius, flexible cable installation | ≥ 130 mm |
| Cable diameter | 8 mm |
| Cable diameter tolerance | ± 1 mm |
| Cable design | 4 x (1 x 0.128 mm²) + 10 x 0.128 mm² |
| Nominal conductor cross section | 0.128 mm² |
| Degree of protection | IP65 |
| Note on degree of protection | In mounted state |
| Ambient temperature | 0 °C ... 40 °C |
| Ambient temperature with flexible cable installation | 0 °C ... 40 °C |
| Storage temperature | -20 °C ... 70 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Red |
| Insulating sheath material | PP |
