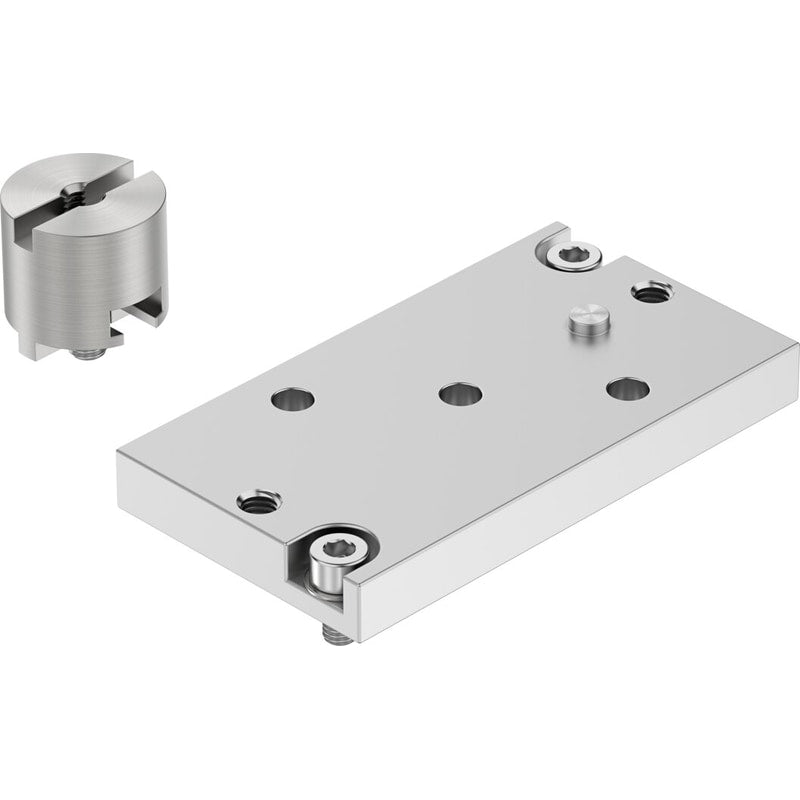

Adapter kit
DADG-AK-F9-1
8125947
GTIN 4052568573386
Vendor Festo
Regular price
$129.09
Unit price
DADG-AK-F9-1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADG-AK-F9-1
Regular price
$129.09
Unit price
DADG-AK-F9-1 is backordered and will ship as soon as it is back in stock.
| Size | 1 |
|---|---|
| Mounting position | Any |
| Operating pressure | 0.2 MPa ... 0.8 MPa |
| Operating pressure | 2 bar ... 8 bar |
| Operating pressure | 29 psi ... 116 psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Ambient temperature | -20 °C ... 80 °C |
| Product weight | 187 g |
| Note on materials | RoHS-compliant |
| Adapter material | High-alloy stainless steel |
| Adapter plate material | Wrought aluminum alloy, anodized |
| Seals material | NBR |
| Material of screws | High-alloy stainless steel |
