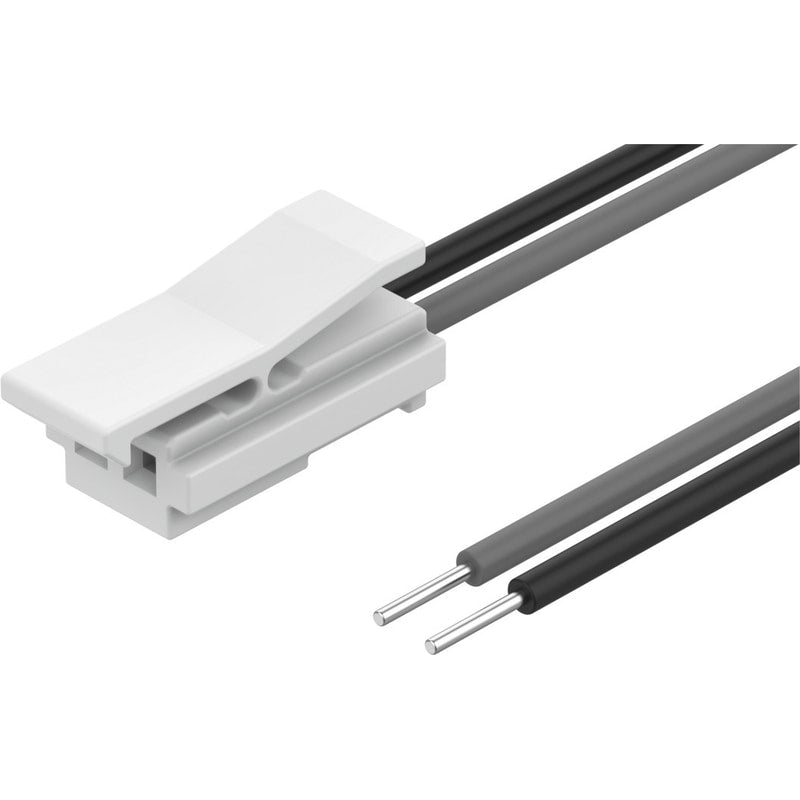

Connecting cable
NEBV-HPG2-PN-0.3-N-LE2
8122832
GTIN 4052568556976
Vendor Festo
- Electrical connection 1, connection type
- Cable with socket
- Electrical connection 1, connection technology
- Port pattern HP
- Electrical connection 2, connection type
- 2x single wires
- Electrical connection 2, connection technology
- Open end
- Cable length
- 0.3 m
Regular price
$2.32
Unit price
NEBV-HPG2-PN-0.3-N-LE2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBV-HPG2-PN-0.3-N-LE2
Regular price
$2.32
Unit price
NEBV-HPG2-PN-0.3-N-LE2 is backordered and will ship as soon as it is back in stock.
| Max. no. of solenoid coils | 1 |
|---|---|
| Cable designation | Without label holder |
| Mounting position | Any |
| Product weight | 2.1 g |
| Electrical connection 1, function | Field device end Switching output |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Cable with socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Port pattern HP |
| Electrical connection 1, number of pins/wires | 2 |
| Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection 1, type of mounting | Push-pull with interlock to prevent unintentional pulling |
| Electrical connection 2, function | Power supply Control side |
| Electrical connection 2, connection type | 2x single wires |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 |
| DC operating voltage range | 0 V ... 24 V |
| Shield | no |
| Information on operation | Only operate with external power reduction |
| Cable length | 0.3 m |
| Cable characteristic | for static applications |
| Bending radius, fixed cable installation | ≥ 11 mm |
| Cable diameter | 0.96 mm |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| Storage temperature | -20 °C ... 70 °C |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Housing material | PEEK |
| Housing colour | Gray |
| Insulating sheath material | PVC |
