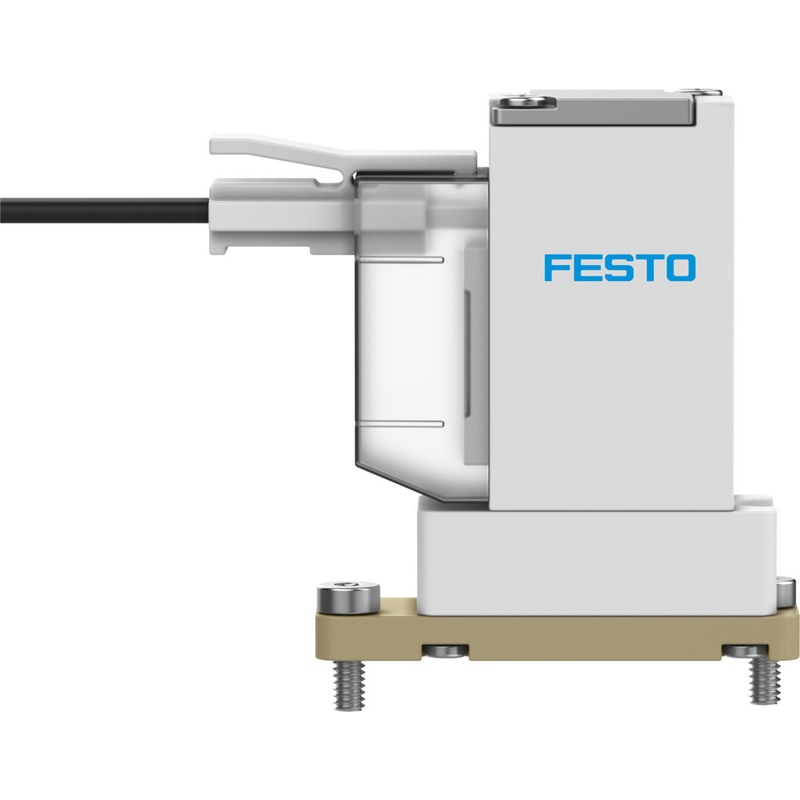

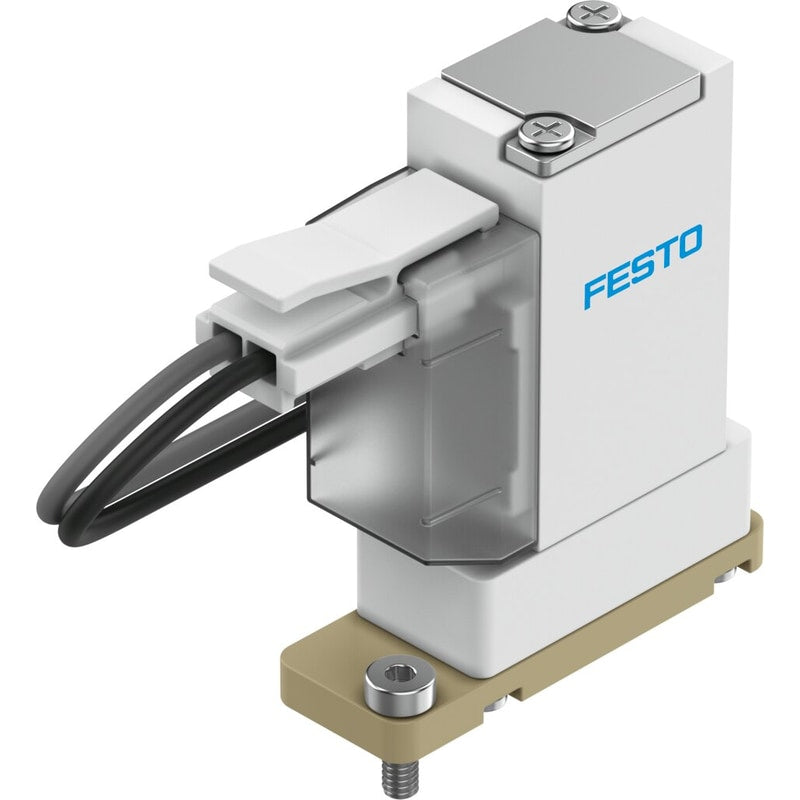

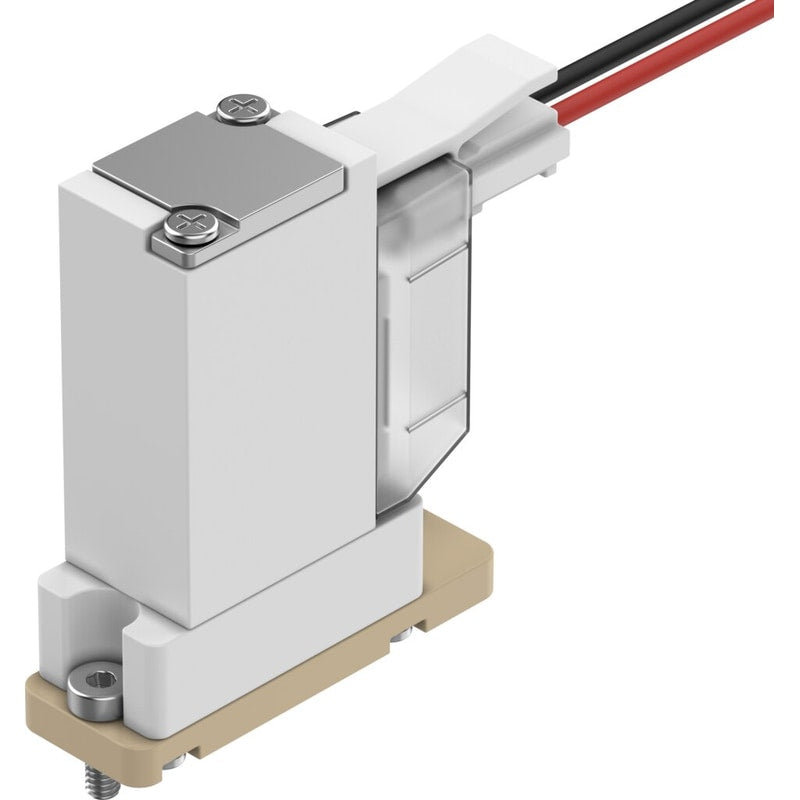

Media separated solenoid valve
VYKB-F10-M22C-16-PE-5HPA
8122801
GTIN 4052568556662
Vendor Festo
Regular price
$143.22
Unit price
VYKB-F10-M22C-16-PE-5HPA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VYKB-F10-M22C-16-PE-5HPA
Regular price
$143.22
Unit price
VYKB-F10-M22C-16-PE-5HPA is backordered and will ship as soon as it is back in stock.
| Structural design | Electrical connection at side Rocker valve with diaphragm seal |
|---|---|
| Sealing principle | Soft |
| Materials in contact with the media | EPDM PEEK |
| Valve function | 2/2, closed, monostable |
| Nominal width | 1.6 mm |
| Flow direction | Non-reversible |
| Actuation type | Electrical |
| Type of control | Direct |
| Reset method | Mechanical spring |
| Manual override | None |
| Mounting position | Any |
| Type of mounting | With through-hole for M2 screw |
| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connection technology | Port pattern HP |
| Size | 10 |
| Fluid connector | Flange |
| Medium | Liquid media Gaseous media |
| Information on medium | Observe resistance of materials that come into contact with media Maximum particle size 5 µm |
| Internal volume | 35 µl |
| Temperature of medium | 0 °C ... 50 °C |
| Temperature of liquid media | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| Storage temperature | -20 °C ... 70 °C |
| Medium pressure | -0.075 MPa ... 0.1 MPa |
| Medium pressure | -0.75 bar ... 1 bar |
| Medium pressure | -10.875 psi ... 14.5 psi |
| Overload pressure | 0.3 MPa |
| Overload pressure | 3 bar |
| Overload pressure | 43.5 psi |
| DC operating voltage range | 12 V |
| Permissible voltage fluctuations | -5 % / +10 % |
| Coil characteristics | 12 V DC: low-current phase 1 W, high-current phase 3.7 W |
| Duty cycle | 100% |
| Max. switching frequency | 2 Hz |
| On switching time | ≤ 15 ms |
| Switching time off | ≤ 15 ms |
| Flow rate Kv | 0.034 m³/h |
| Symbol | 00997351 |
| Housing material | PEEK |
| Diaphragm material | EPDM |
| Seals material | EPDM |
| Note on materials | RoHS-compliant |
| LABS conformity | VDMA24364 zone III |
| Product weight | 20 g |
| Degree of protection | IP40 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
