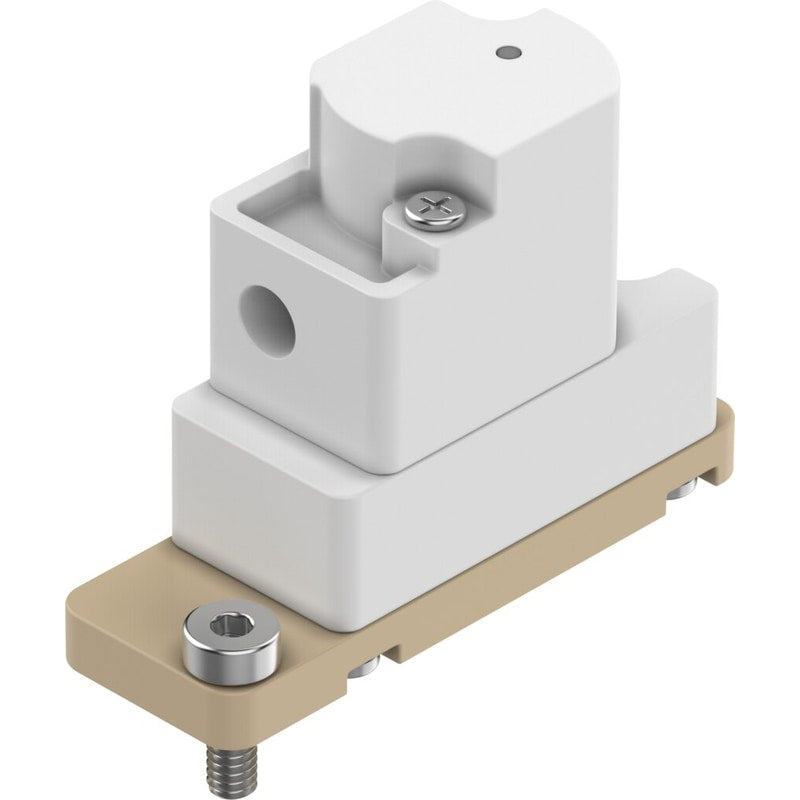

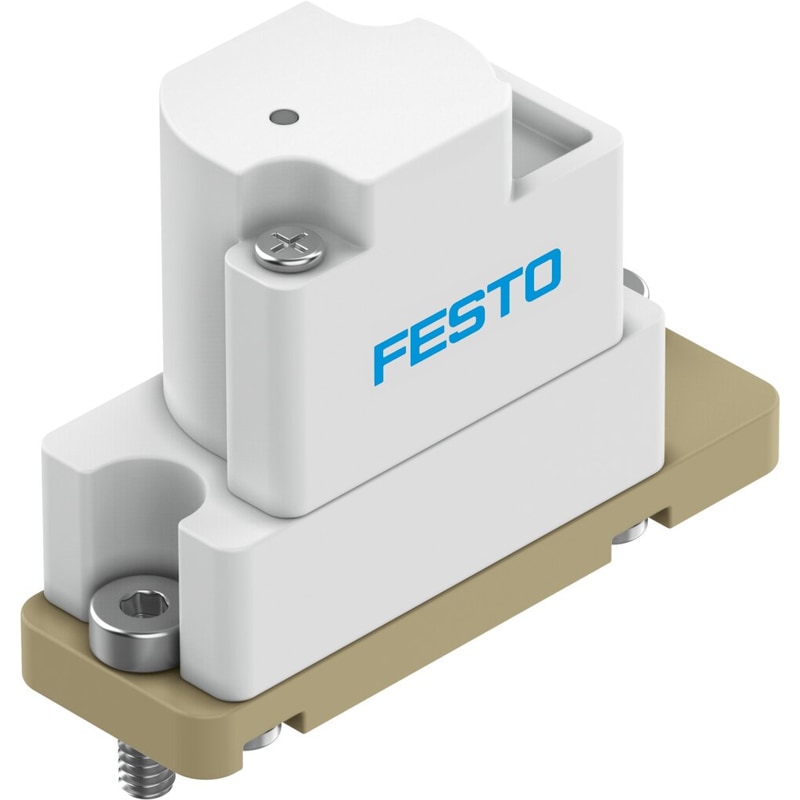

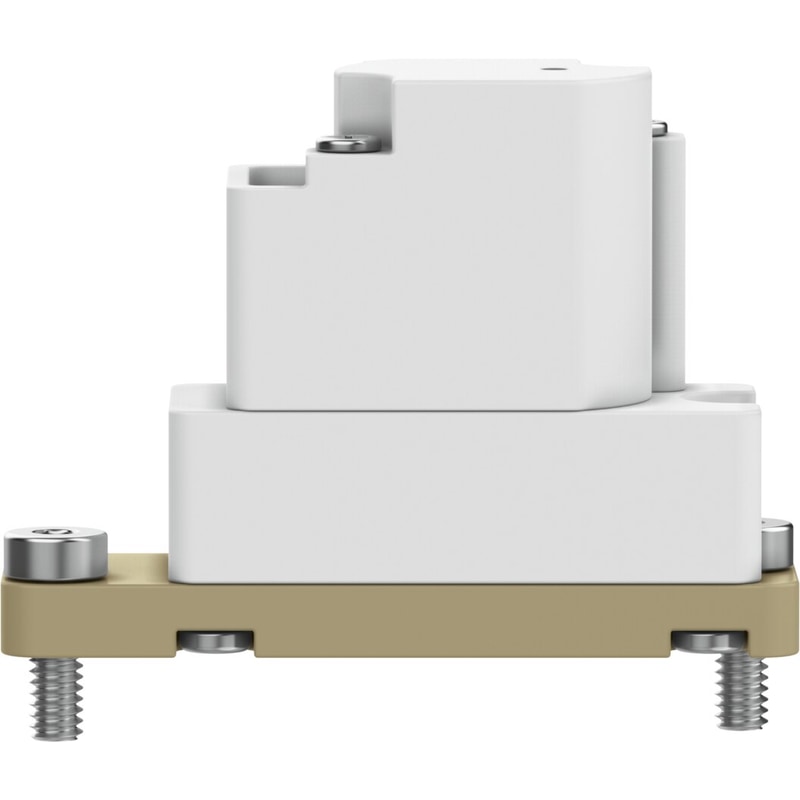

Media separated pneumatic valve
VZDB-F10-M32-16-M3-PE
8122798
GTIN 4052568556631
Vendor Festo
- Valve function
- 3/2, open/closed, monostable
- Fitting connection
- External thread/external thread
- Reset method
- Mechanical spring
- Seals material
- EPDM
Regular price
$117.62
Unit price
VZDB-F10-M32-16-M3-PE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZDB-F10-M32-16-M3-PE
Regular price
$117.62
Unit price
VZDB-F10-M32-16-M3-PE is backordered and will ship as soon as it is back in stock.
| Structural design | Rocker valve with diaphragm seal |
|---|---|
| Actuation type | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | With through-hole for M2 screw |
| Fitting connection | External thread/external thread |
| Size | 10 |
| Nominal width | 1.6 mm |
| Valve function | 3/2, open/closed, monostable |
| Manual override | None |
| Flow direction | Non-reversible |
| Operating pressure | -0.075 MPa ... 0.1 MPa |
| Exhaust air function | With flow control option |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Pilot air port 21 | M3 |
| Fluid connector | Flange |
| Pilot pressure MPa | 0.15 MPa ... 0.3 MPa |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:1] |
| Symbol | 00997352 |
| Operating medium | Liquid media Gaseous media |
| Information on operating and pilot media | Observe resistance of materials that come into contact with media Maximum particle size 5 µm |
| Internal volume | 35 µl |
| Temperature of medium | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| Storage temperature | -20 °C ... 70 °C |
| Flow rate Kv | 0.034 m³/h |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Housing material | PEEK |
| Seals material | EPDM |
| Product weight | 7 g |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Max. switching frequency | 2 Hz |
