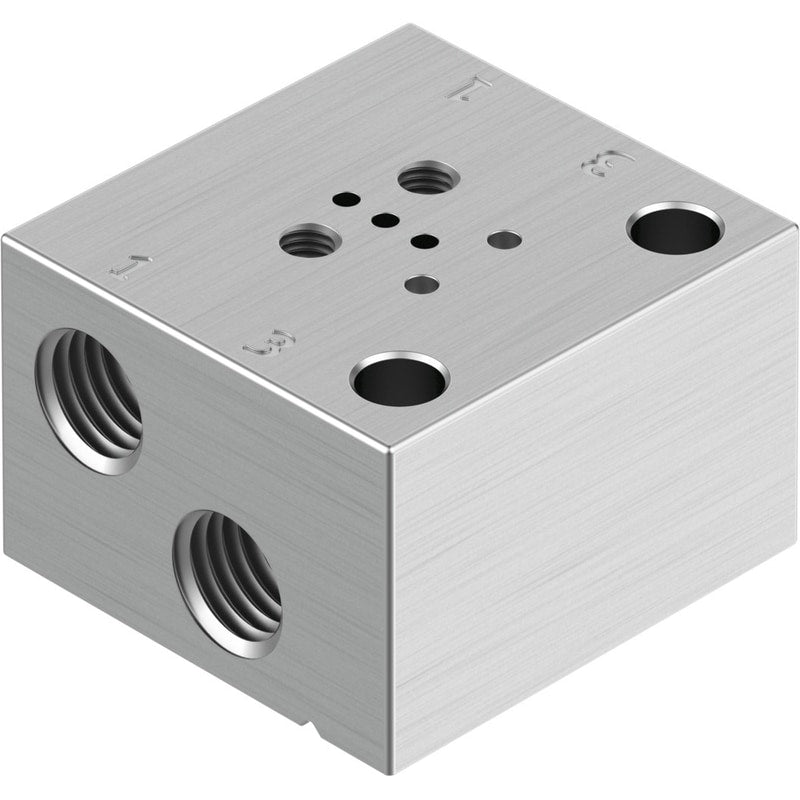

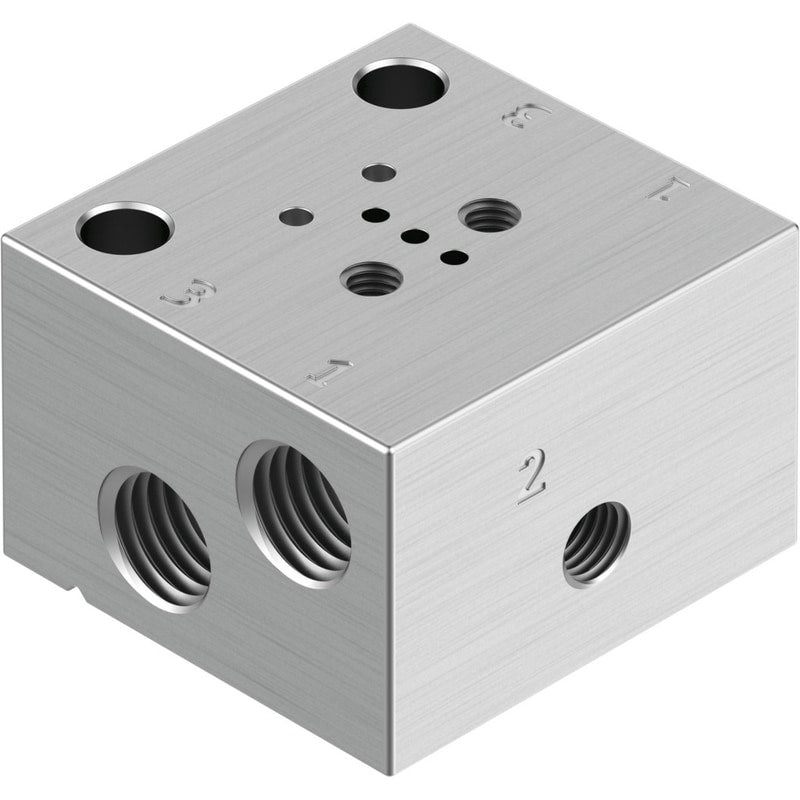

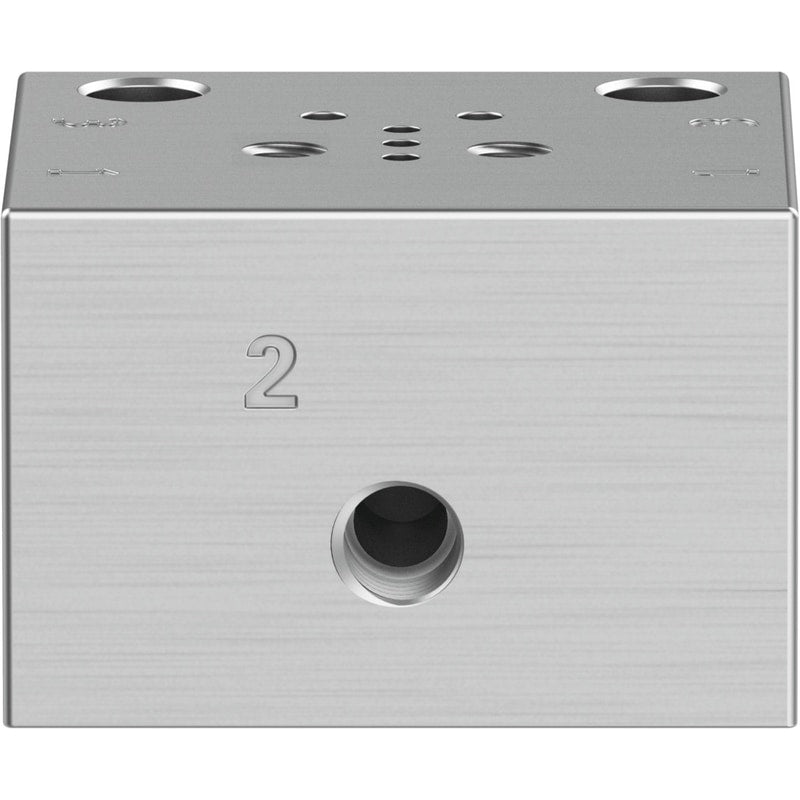

Manifold block
VABS-C12-6-B-M3
8122793
GTIN 4052568550950
Vendor Festo
Regular price
$32.15
Unit price
VABS-C12-6-B-M3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABS-C12-6-B-M3
Regular price
$32.15
Unit price
VABS-C12-6-B-M3 is backordered and will ship as soon as it is back in stock.
| Width | 20 mm |
|---|---|
| Type code | VABS |
| Mounting position | Any |
| Design | Connection direction downwards |
| Max. no. of valve positions | 1 |
| Operating pressure | -1 bar ... 7 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [6:4:1] |
| Information on operating and pilot media | Maximum particle size 5 µm |
| Ambient temperature | 5 °C ... 50 °C |
| Product weight | 13.5 g |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M3 |
| Pneumatic connection 3 | M5 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Manifold rail material | Wrought aluminum alloy |
