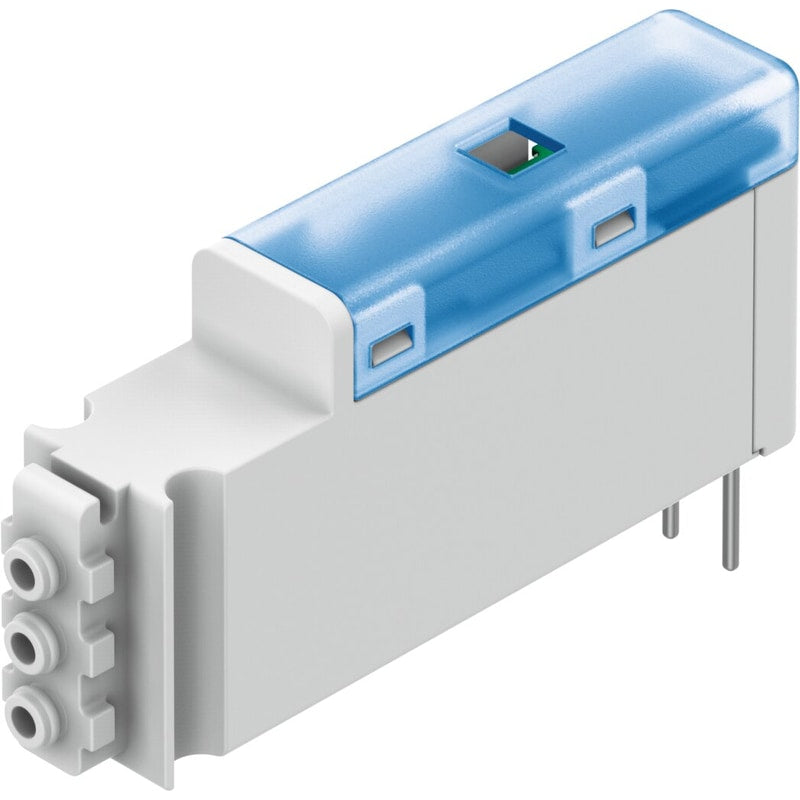

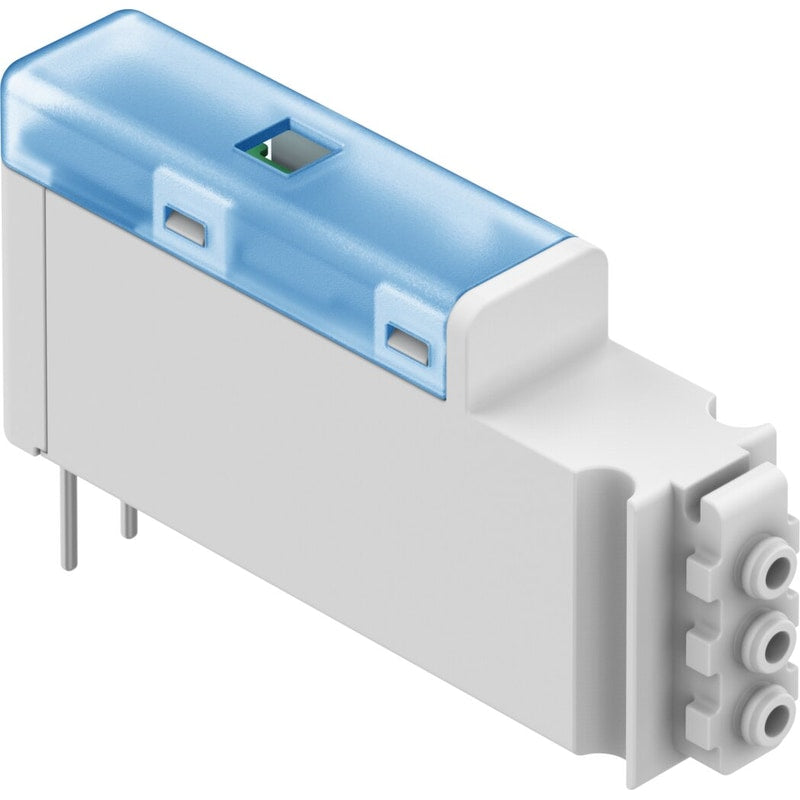

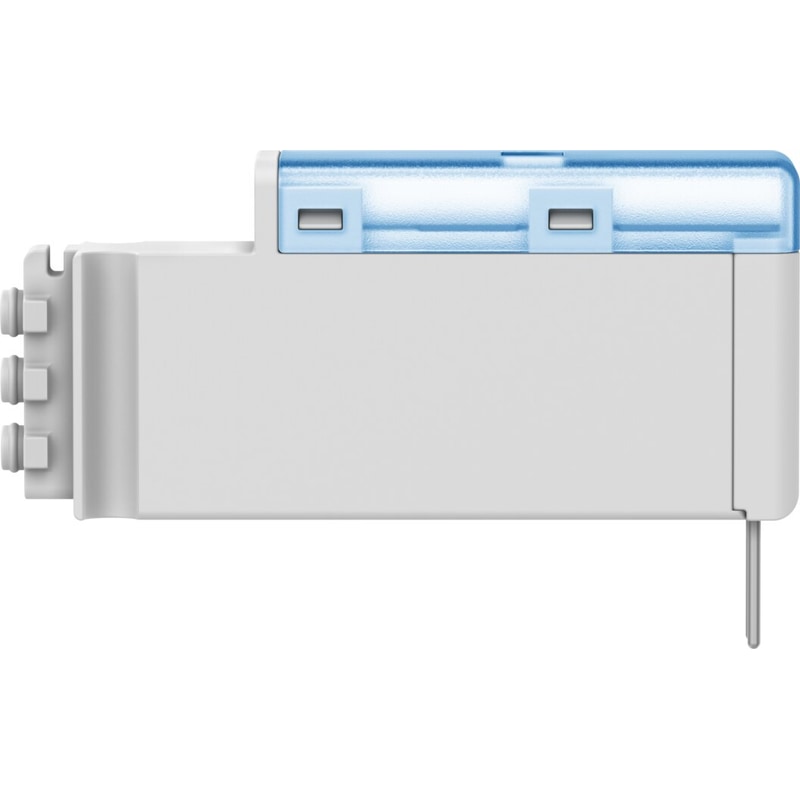

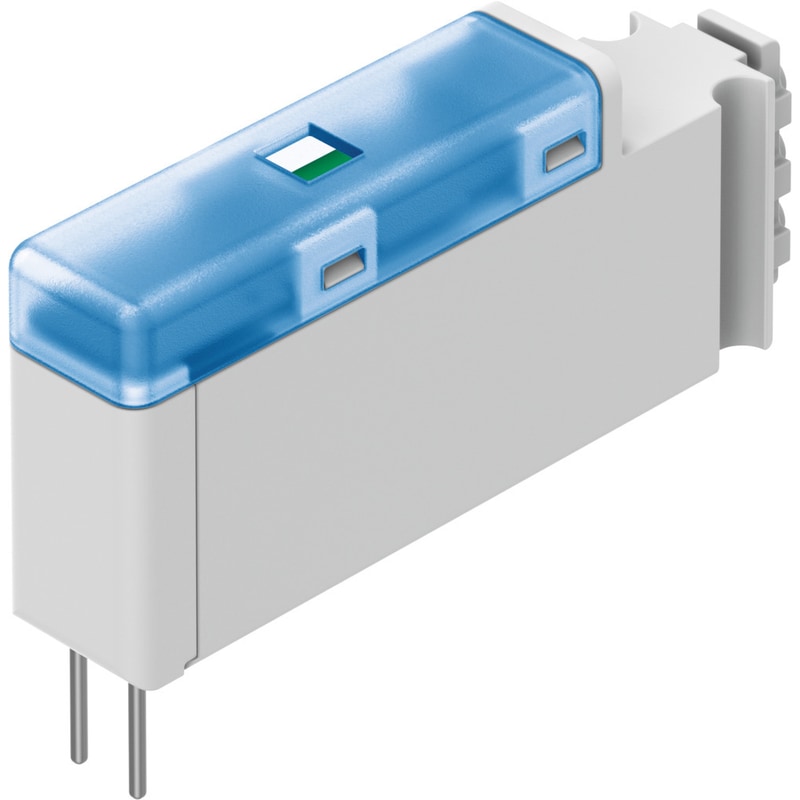

Solenoid valve
VOVK-BT6-M32C-MN-5T1P-FF
8122780
GTIN 4052568550820
Vendor Festo
- Valve function
- 3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 5.5 l/min
- Pneumatic connection 1
- Sub-base
- Operating pressure
- -1 bar - 7 bar
Regular price
$31.40
Unit price
VOVK-BT6-M32C-MN-5T1P-FF is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VOVK-BT6-M32C-MN-5T1P-FF
Regular price
$31.40
Unit price
VOVK-BT6-M32C-MN-5T1P-FF is backordered and will ship as soon as it is back in stock.
| Valve function | 3/2, closed, monostable |
|---|---|
| Relative air humidity | 70 % |
| Material of spring | High-alloy stainless steel |
| Cv value | 0.006 Gal/min US |
| Operating pressure | -0.1 MPa ... 0.7 MPa |
| Operating pressure | -14.5 psi ... 100 psi |
| Nominal operating voltage DC | 12 V |
| Note on switching time on | <= 6 ms at 0 < p < 6 bar, <= 13 ms at -1 < p < 0 bar |
| Note on switching time off | At –1 < p < 6 bar |
| Information on operating pressure | Operating pressure at port 3: -1 to 0 bar only |
| Note on relative air humidity | at ambient temperature |
| Actuation type | Electrical |
| Width | 5.9 mm |
| Standard nominal flow rate | 5.5 l/min |
| Pneumatic working port | Sub-base |
| Operating pressure | -1 bar ... 7 bar |
| Design | Connection direction to the frontPoppet valve with return spring |
| Reset method | Mechanical spring |
| Degree of protection | IP40 |
| Nominal width | 0.36 mm |
| Type code | VOVK |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | None |
| Type of control | Electrical |
| Flow direction | Reversible |
| Symbol | 00992967 |
| Max. switching frequency | 10 Hz |
| Switching time off | ≤ 6 ms |
| On switching time | ≤ 13 ms |
| Duty cycle | 100% within 500 h |
| Electrical power consumption | ≤ 0.5 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [6:4:1] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Temperature of medium | 5 °C ... 50 °C |
| Ambient temperature | 5 °C ... 50 °C |
| Product weight | 4.5 g |
| Electrical connection | 2-pin |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | Sub-base |
| Pneumatic connection 3 | Sub-base |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | PBT |
