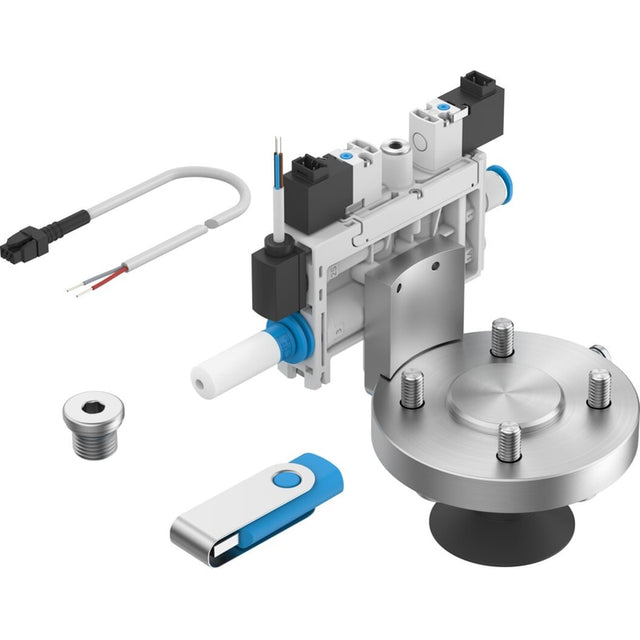

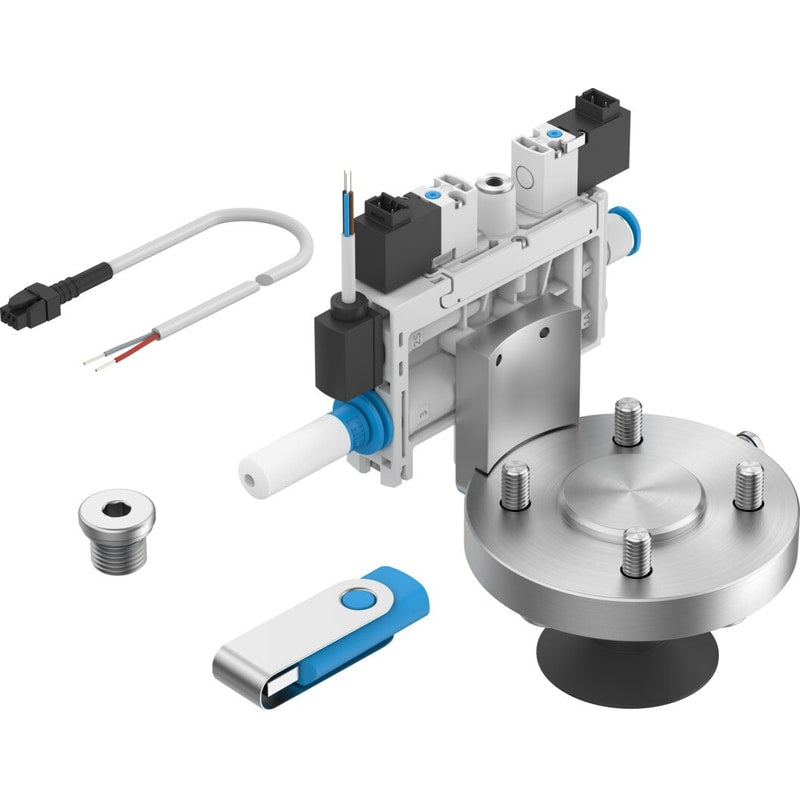

Robot kit suction gripper
OVEL-10-H-15-PQ-VM7-UA-C-A-V1V-H3-RA1
8121043
GTIN 4052568555788
Vendor Festo
- Nominal width of Laval nozzle
- 0.95 mm
- Max. vacuum
- 92 %
Regular price
$1,196.70
Unit price
OVEL-10-H-15-PQ-VM7-UA-C-A-V1V-H3-RA1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
OVEL-10-H-15-PQ-VM7-UA-C-A-V1V-H3-RA1
Regular price
$1,196.70
Unit price
OVEL-10-H-15-PQ-VM7-UA-C-A-V1V-H3-RA1 is backordered and will ship as soon as it is back in stock.
| Nominal width of Laval nozzle | 0.95 mm |
|---|---|
| Ejector characteristics | High vacuum |
| Integrated function | Electric ejector pulse Flow control Pressure transmitter Shut off valve, electric Compressed air filter Pneumatic muffler open |
| Accessories included | 1x adapter plate 1x distance piece 1x Velcro® roll 1x USB memory stick with URCap 1x vacuum generator 1x suction cup with connection 2x connecting cable 5x blanking plugs 6x socket head screws |
| Switching element function | N/O contact |
| Switching function | Threshold value comparator Threshold value with fixed hysteresis |
| Valve function | Closed |
| Method of measurement | Piezoresistive pressure sensor |
| Operating pressure | 0.2 MPa ... 0.7 MPa |
| Operating pressure | 2 bar ... 7 bar |
| Max. vacuum | 92 % |
| Analog output | 0 - 10 V |
| DC operating voltage range | 21.6 V ... 26.4 V |
| Coil characteristics | 24 V DC: 1.0 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | 0 °C ... 50 °C |
| Product weight | 300 g |
| DC sensor operating voltage range | 18 V ... 30 V |
| Pressure measuring range | -0.01 MPa ... 0 MPa |
| Pressure measuring range | -1 bar ... 0 bar |
| Electrical connection input, function | Ejector pulse Vacuum generator |
| Electrical connection input, connection type | Cable |
| Electrical input connection, connection technology | Open end |
| Electrical connection, input, number of pins/wires | 2 |
| Input electrical connection, cable length | 5 m |
| Electrical connection output, function | Sensor |
| Electrical connection output, connection type | Cable |
| Electrical connection output, connection technology | Open end |
| Electrical output connection, number of pins/wires | 3 |
| Output electrical connection, cable length | 2.5 m |
| Type of mounting | with through-hole for M6 screw |
| Robot connection | Universal robots UR3/5/10 (PolyScope CB 3.8.0 and later) UR UR3e/5e/10e/16e (SW5.0.0 or higher |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm |
| Vacuum connection | G1/4 |
| Note on vacuum connection | Optional: 4x G1/8 |
| Note on materials | RoHS-compliant |
| Material of sub-base | Wrought aluminum alloy |
| Seals material | HNBR NBR |
| Material of screws | Steel |
