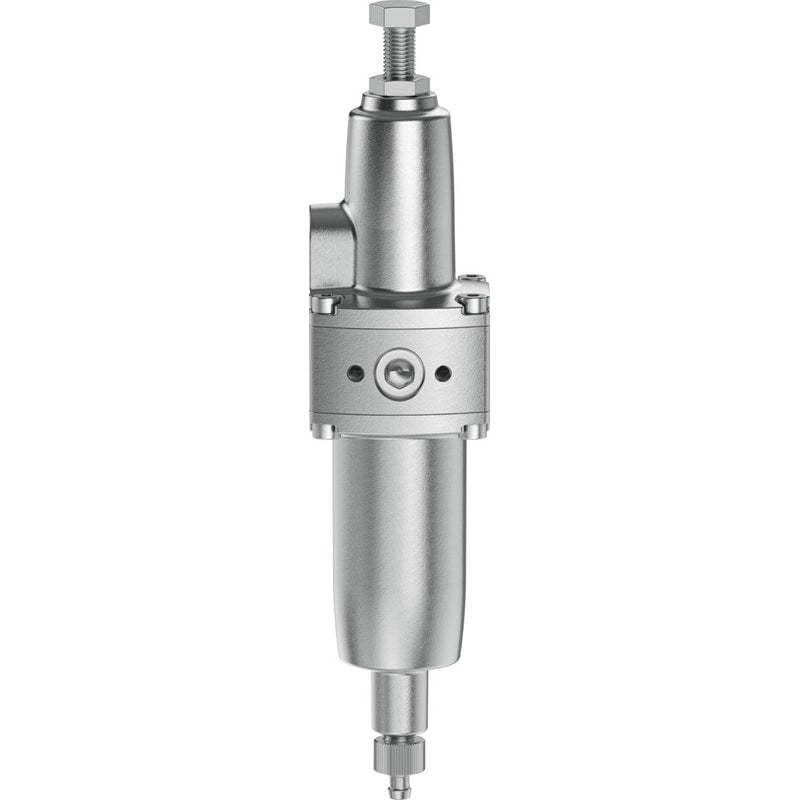

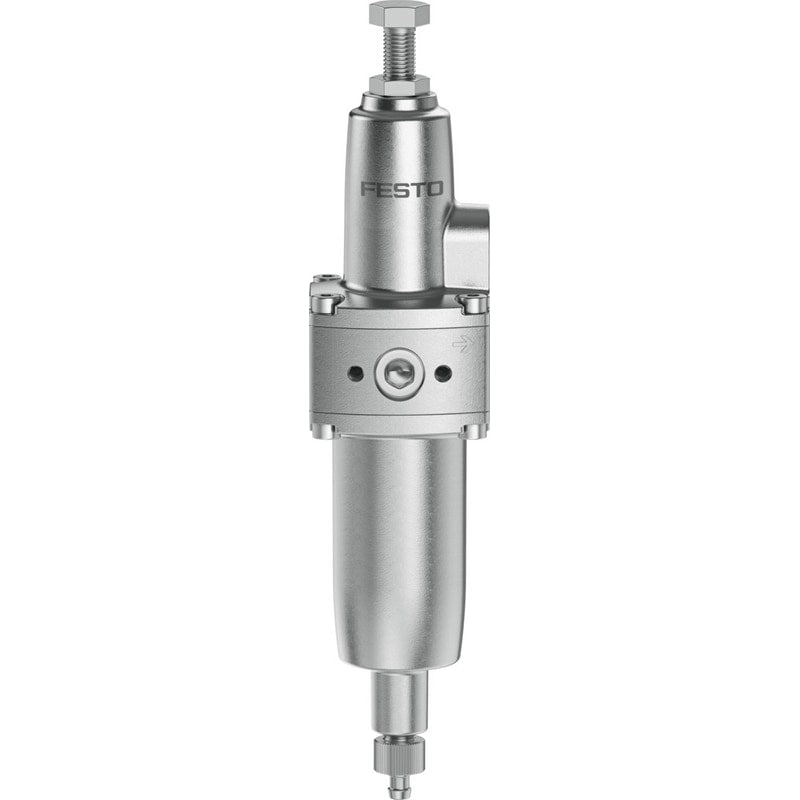

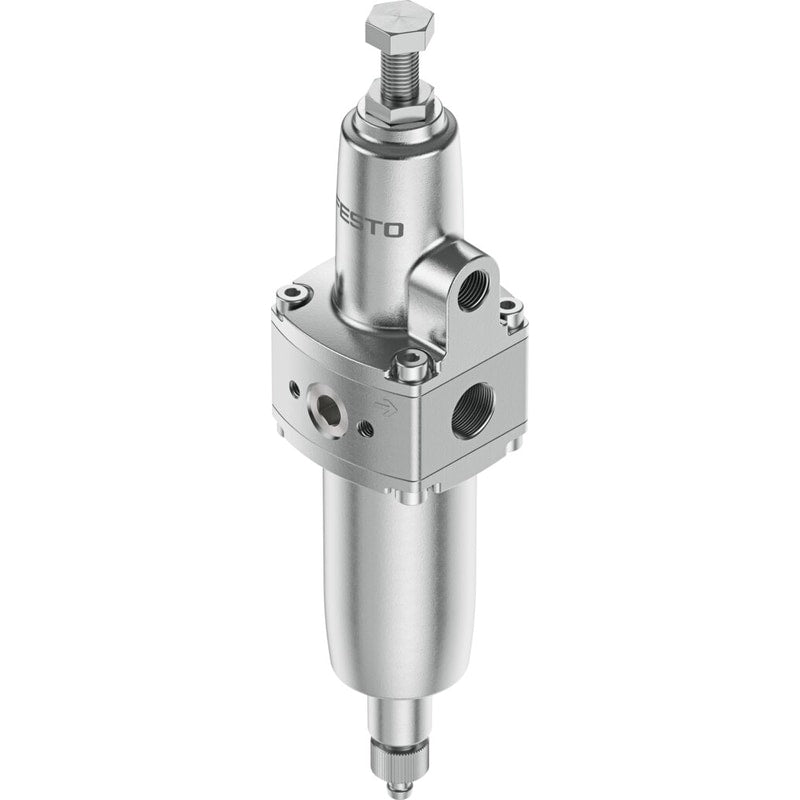

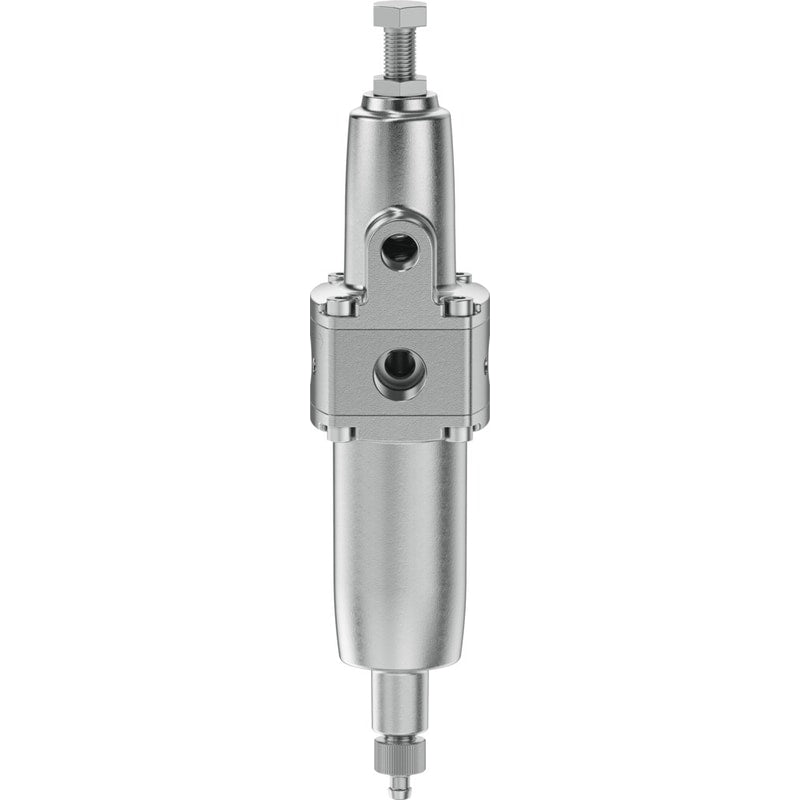

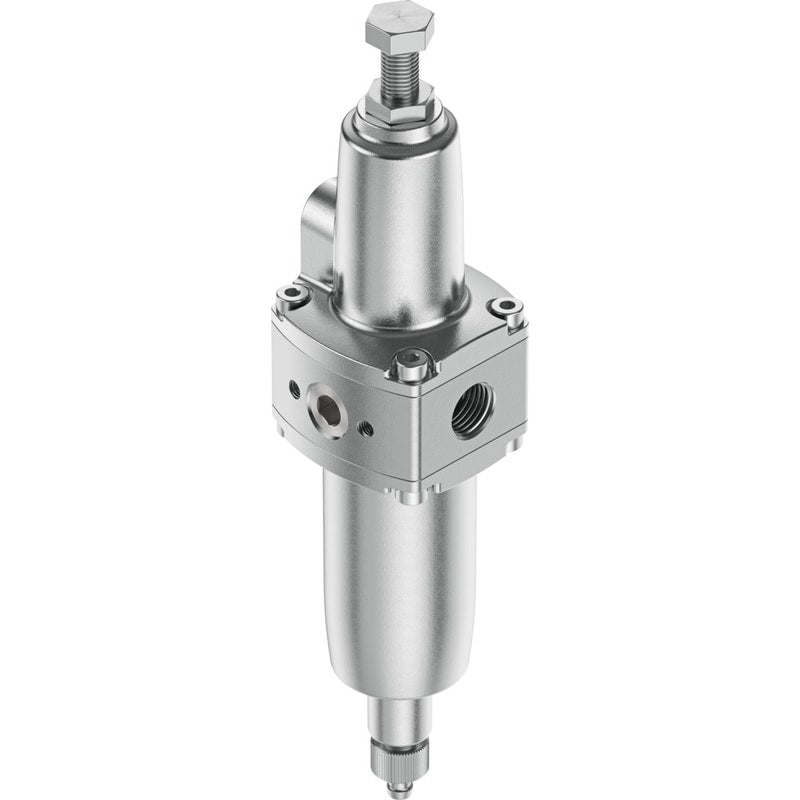

Filter regulator
PCRP-44-G14-12-C-R1-M-T18
8120907
GTIN 4052568462505
Vendor Festo
Regular price
$308.75
Unit price
PCRP-44-G14-12-C-R1-M-T18 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PCRP-44-G14-12-C-R1-M-T18
Regular price
$308.75
Unit price
PCRP-44-G14-12-C-R1-M-T18 is backordered and will ship as soon as it is back in stock.
| Size | 44 |
|---|---|
| Series | P |
| Actuator lock | Adjusting screw with lock |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | Manually rotating |
| Structural design | Filter regulator without pressure gauge |
| Conforms to standard | NACE MR0175/ISO 15156 (housing and bowl) |
| Max. condensate volume | 12 ml |
| Controller function | With primary pressure compensation With secondary exhausting |

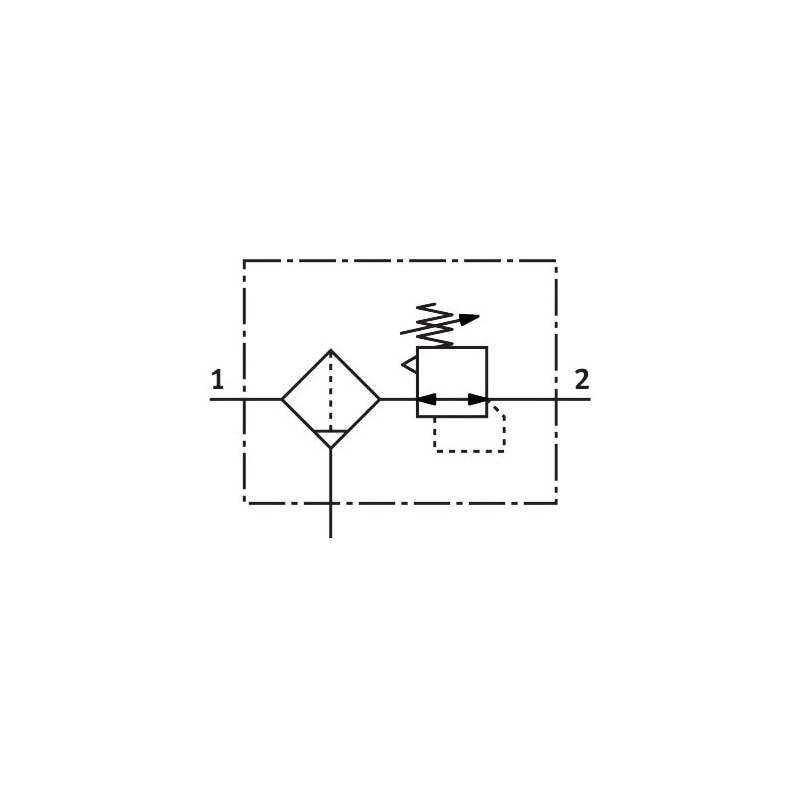

| Symbol | 00991586 |
| Pressure gauge | G1/4 prepared |
| Operating pressure | 0.1 MPa ... 2 MPa |
| Operating pressure | 1 bar ... 20 bar |
| Pressure regulation range | 0.5 bar ... 12 bar |
| Max. pressure hysteresis | 0.2 bar |
| Max. standard flow rate | 2400 l/min |
| Standard nominal flow rate | 1600 l/min |
| Explosion prevention and protection | The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Storage temperature | -20 °C ... 80 °C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Temperature of medium | -20 °C ... 80 °C |
| Ambient temperature | -20 °C ... 80 °C |
| Product weight | 665 g |
| Type of mounting | Optionally: Line installation With mounting kit |
| Pressure gauge connection | G1/4 |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Drain screw material | High-alloy stainless steel |
| Drain screw material number | 1.4404/316L |
| Material of filter support | POM |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Material of mounting bracket | High-alloy stainless steel |
| Seals material | CR NBR |
| Material of spring | High-alloy stainless steel |
| Compressed air filter material | PE |
| Housing material | Cast stainless steel |
| Material number of housing | 1.4409/CF3M(316L) |
| Material of adjusting screw | High-alloy stainless steel |
| Material of bowl | Cast stainless steel |
| Bowl material number | 1.4409/CF3M (316L) |
