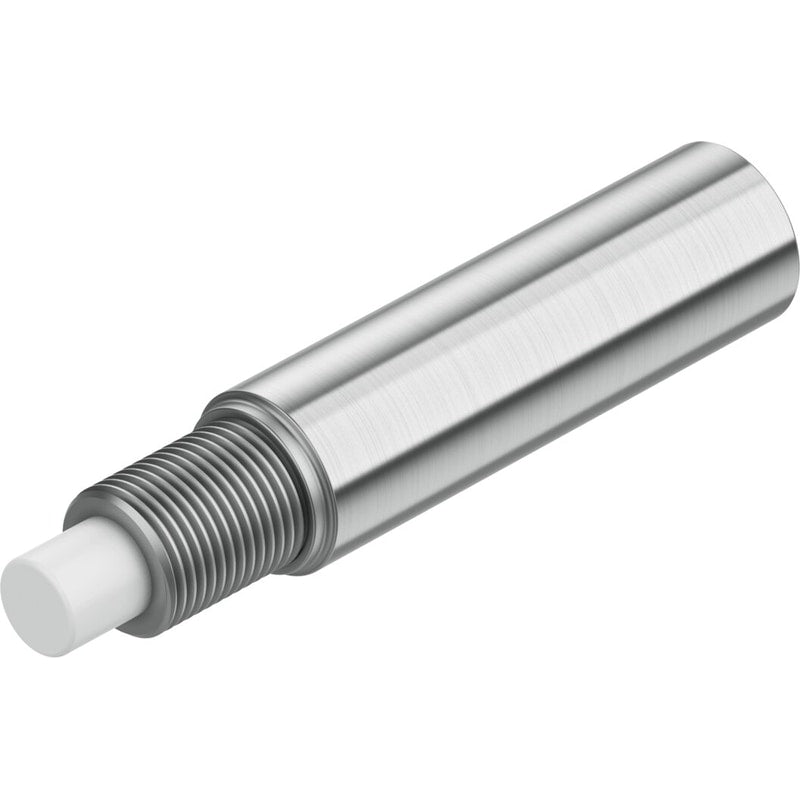

Shock absorber
DYSS-G8-7-5-Y1F-F1A
8119984
GTIN 4052568579005
Vendor Festo
- Stroke
- 5 mm
- Max. energy absorption per stroke
- 2 J
- Cushioning
- Self-adjusting
Regular price
$59.14
Unit price
DYSS-G8-7-5-Y1F-F1A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DYSS-G8-7-5-Y1F-F1A
Regular price
$59.14
Unit price
DYSS-G8-7-5-Y1F-F1A is backordered and will ship as soon as it is back in stock.
| Size | 7 |
|---|---|
| Stroke | 5mm |
| Cushioning | Self-adjusting |
| Mounting position | Any |
| Position sensing | None |

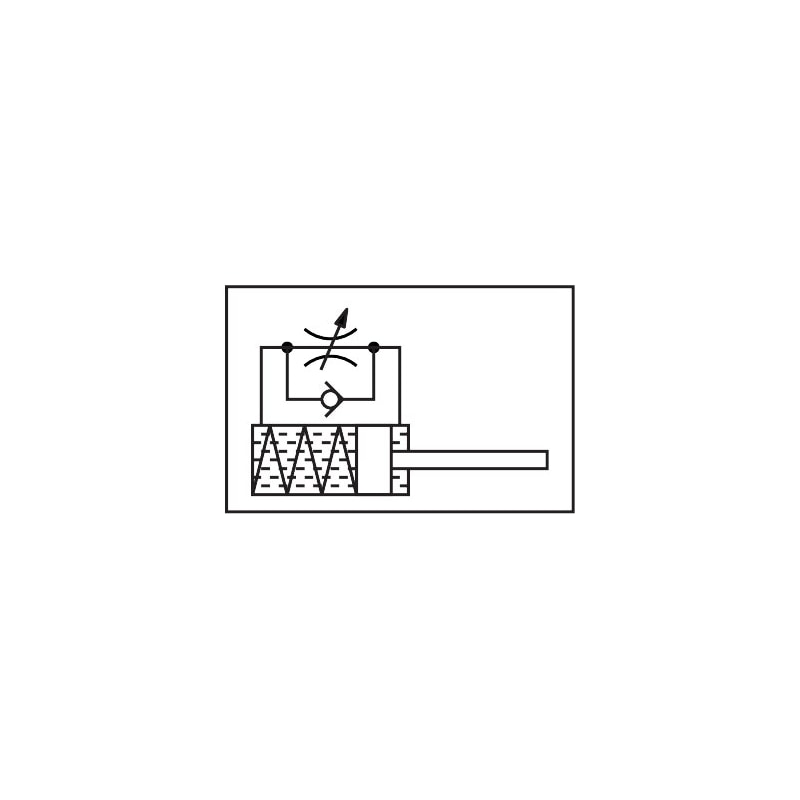

| Symbol | 00991495 |
| Variants | Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| Max. impact velocity | 1.5m/s |
| Reset time at room temperature | 0.2s |
| Reset time at min. ambient temperature | 1s |
| Mode of operation | Single-acting |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C |
| Cushioning length | 5mm |
| Max. stop force | 300N |
| Max. tightening torque | 3Nm |
| Max. energy absorption per stroke | 2J |
| Max. energy absorption per hour | 12000J |
| Max. residual energy | 0.01J |
| Resetting force | 1.2N |
| Product weight | 33g |
| Type of mounting | With threaded sleeve |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | High-alloy steel |
| Piston rod material | High-alloy steel |
