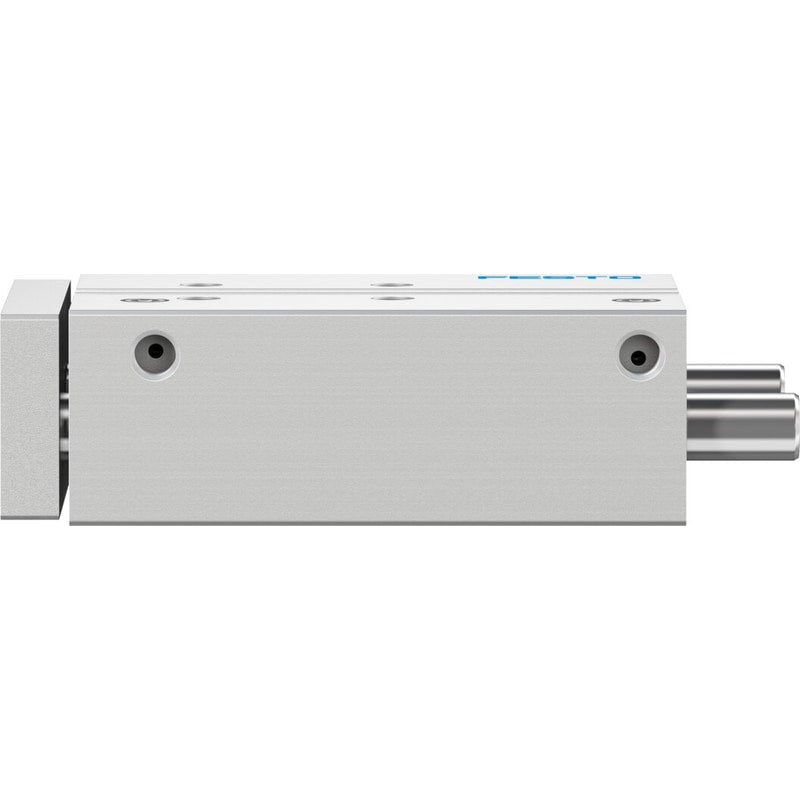

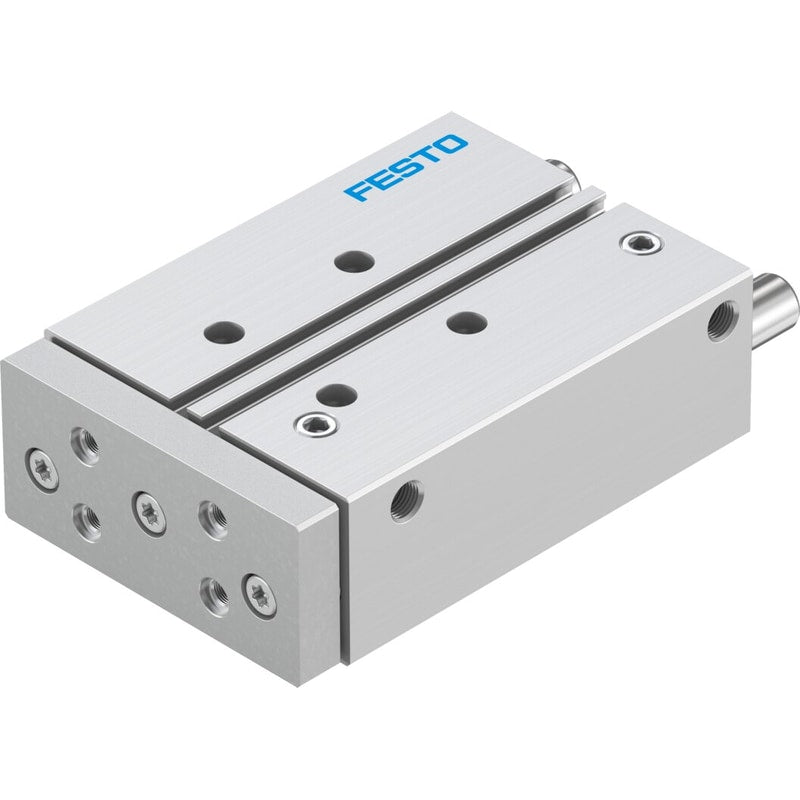

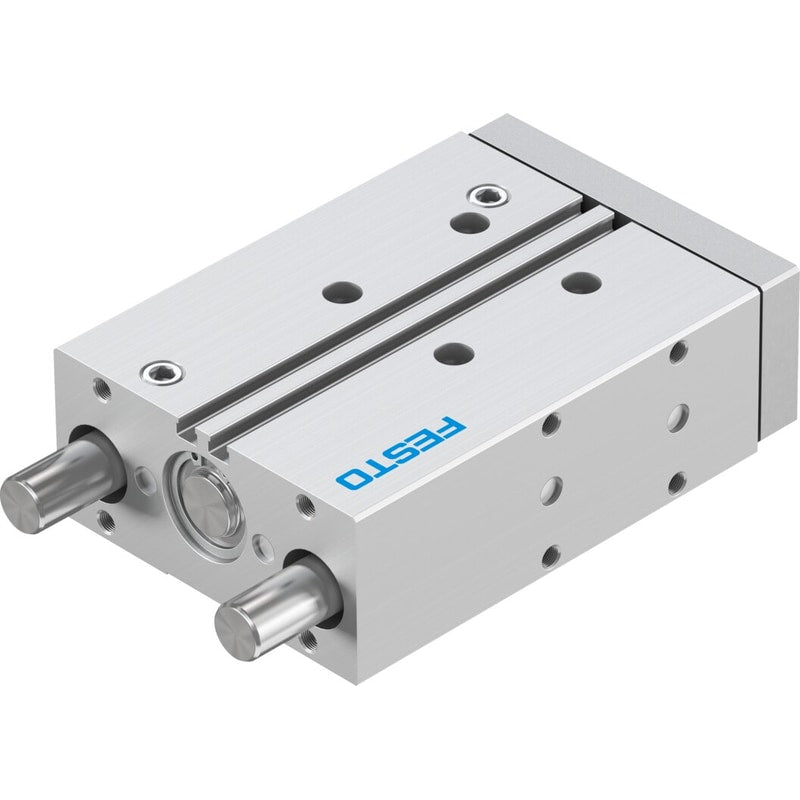

Guided drive
DFM-25-80-P-A-KF-F1A
8118874
GTIN 4052568560300
Vendor Festo
- Piston diameter
- 25 mm
- Theoretical force at 6 bar, advancing
- 295 N
- Stroke
- 80 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Position sensing
- For proximity sensor
Regular price
$490.88
Unit price
DFM-25-80-P-A-KF-F1A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFM-25-80-P-A-KF-F1A
Regular price
$490.88
Unit price
DFM-25-80-P-A-KF-F1A is backordered and will ship as soon as it is back in stock.
| Distance of centre of gravity of payload to yoke plate xs | 50 mm |
|---|---|
| Stroke | 80 mm |
| Piston diameter | 25 mm |
| Drive unit operating mode | Yoke |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Structural design | Guide |
| Position sensing | For proximity sensor |
| Symbol | 00991737 |
| Variants | Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| Operating pressure | 0.15 MPa ... 1 MPa |
| Operating pressure | 1.5 bar ... 10 bar |
| Max. speed | 0.8 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS conformity | VDMA24364-B1/B2-L |
| RSBP classification to CD-0033 | F1a |
| Cleanroom class | ISO Class 5 |
| Ambient temperature | -5 °C ... 60 °C |
| Impact energy in the end positions | 0.3 J |
| Max. force Fy | 863 N |
| Max. force Fy static | 1060 N |
| Max. force Fz | 863 N |
| Max. force Fz static | 1060 N |
| Max. torque Mx | 29.35 Nm |
| Max. static moment Mx | 36.04 Nm |
| Max. torque My | 16.83 Nm |
| Max. static moment My | 20.67 Nm |
| Max. torque Mz | 16.83 Nm |
| Max. static moment Mz | 20.67 Nm |
| Max. permissible torque load Mx as a function of the stroke | 4.33 Nm |
| Max. payload as a function of the stroke at defined distance xs | 95 N |
| Theoretical force at 6 bar, retracting | 247 N |
| Theoretical force at 6 bar, advancing | 295 N |
| Moving mass | 802 g |
| Product weight | 1863 g |
| Center of gravity of the moving mass as a function of the stroke | 50.9 mm |
| Alternative connections | See product drawing |
| Pneumatic connection | G1/8 |
| Note on materials | Free of copper and PTFE RoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy |
| Piston rod material | High-alloy stainless steel |
