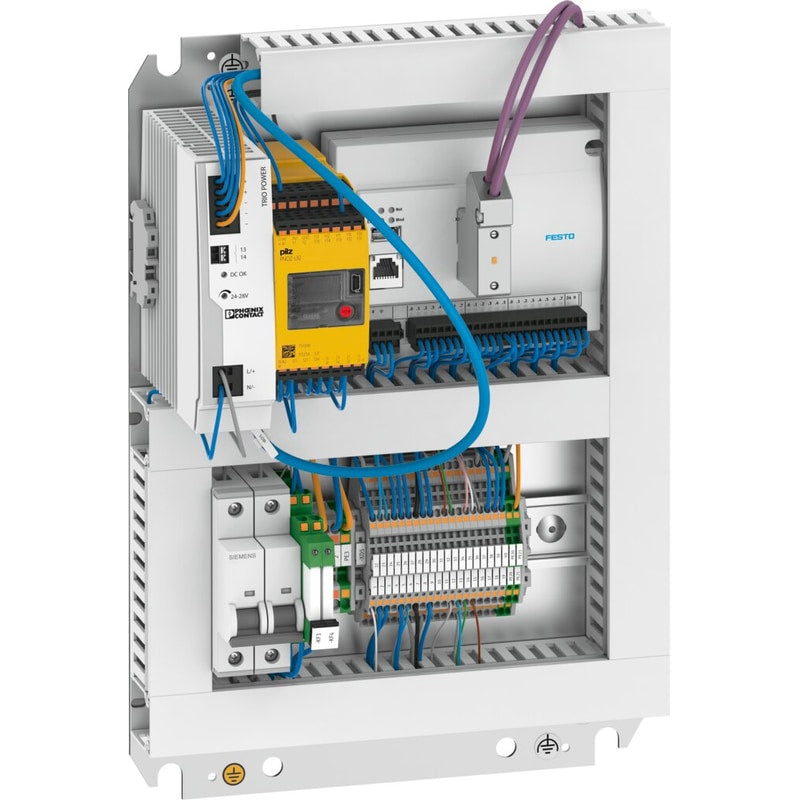

Control system
CMCB-D1-C-S1
8118455
GTIN 4052568556006
Vendor Festo
Regular price
$7,692.85
Unit price
CMCB-D1-C-S1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CMCB-D1-C-S1
Regular price
$7,692.85
Unit price
CMCB-D1-C-S1 is backordered and will ship as soon as it is back in stock.
| Application note | The product is suitable for industrial purposes only. Radio interference suppression measures may be required in residential areas. |
|---|---|
| Structural design | Mounting plate Integrated safety relay unit |
| Performance Level (PL) | Category 3, performance level d |
| Dimensions W x L x H | 135 mm x 254 mm x 375 mm |
| Fuse protection (short circuit) | Internal electronic fuse |
| Max. current consumption | 1100 mA |
| Current consumption of the secondary circuit | 5 A |
| Max. power supply | 6 A |
| Nominal operating voltage AC | 230 V |
| Mains types | TT TN IT |
| Mains frequency | 50 Hz ... 60 Hz |
| Contamination level | 2 |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 60 °C |
| Relative air humidity | Max. 50 % at 40 °C |
| Protection against direct and indirect contact | PELV Grounding of all exposed conductive parts |
| Degree of protection | IP20 |
| Ambient conditions | Interior |
| Ambient temperature | 5 °C ... 40 °C |
| Nominal altitude of use above sea level | 1000 m NN |
| Product weight | 4500 g |
| Electrical connection | Spring-loaded terminal Push-in |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
