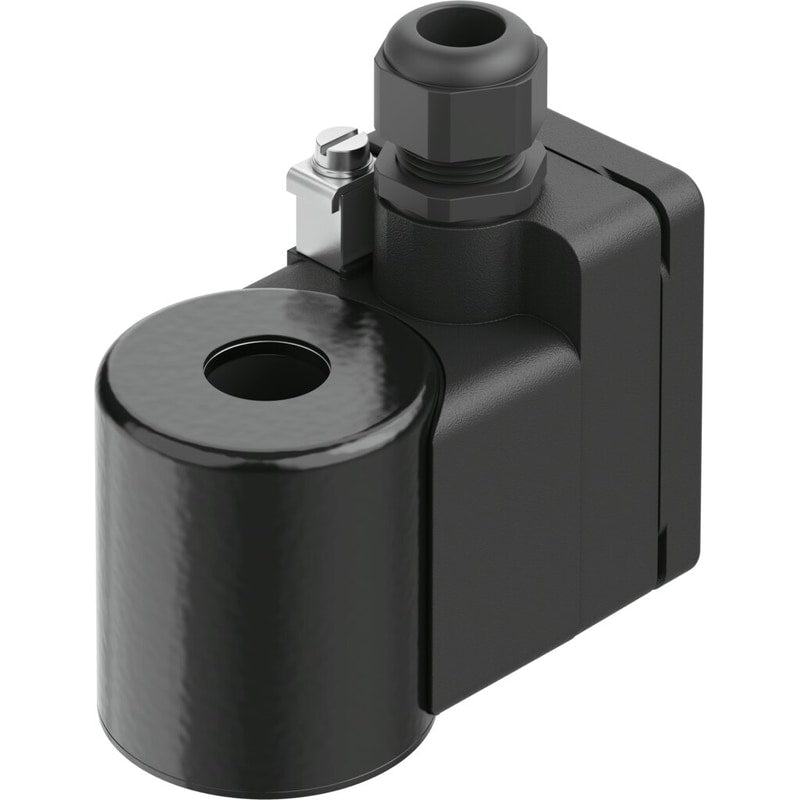

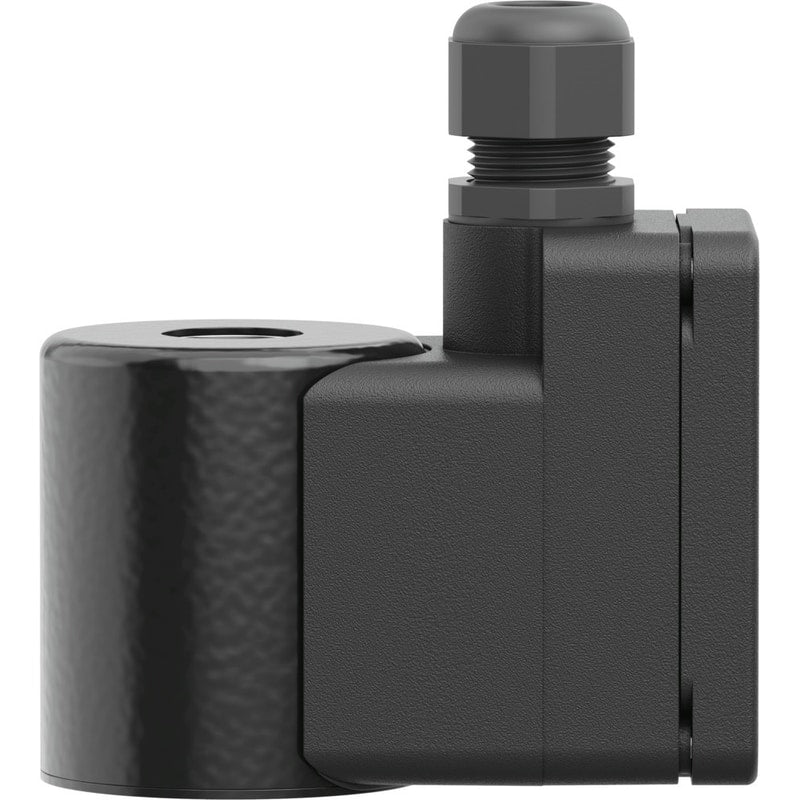

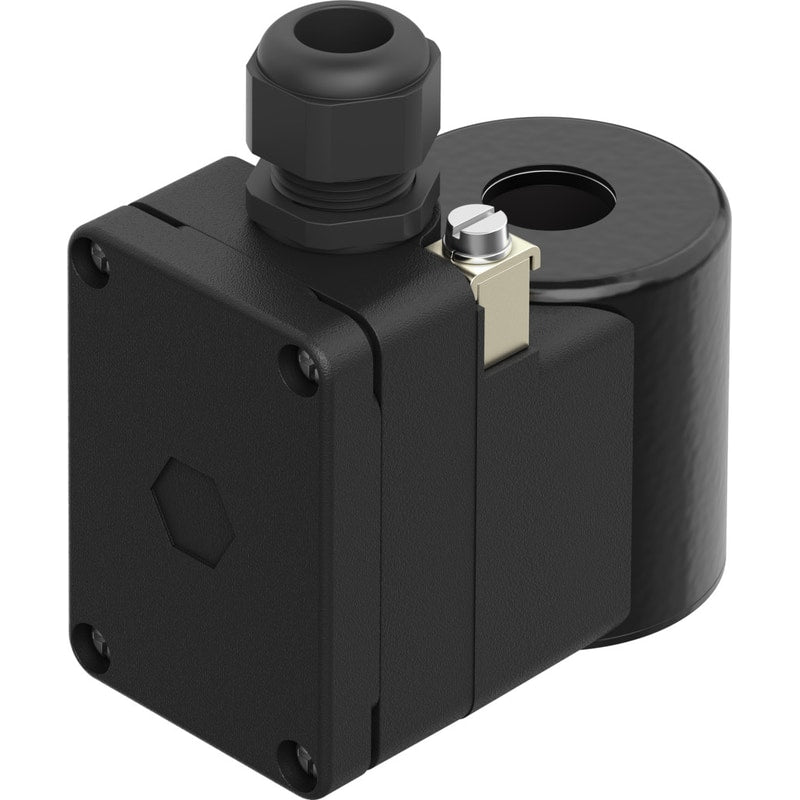

Solenoid coil
VACC-S18-35-K4-1UF-NE4ME
8118256
GTIN 4052568563547
Vendor Festo
- Electrical connection
- Terminal box, cable entry thread M20x1.5
- Coil characteristics
- 24 V DC: 3.5 W - 24 V AC: 50/60 Hz, power 3.5 VA
- Degree of protection
- IP66
Regular price
$407.83
Unit price
VACC-S18-35-K4-1UF-NE4ME is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACC-S18-35-K4-1UF-NE4ME
Regular price
$407.83
Unit price
VACC-S18-35-K4-1UF-NE4ME is backordered and will ship as soon as it is back in stock.
| Actuation type | Electrical |
|---|---|
| Mounting position | Any |
| Switching position indication | no |
| Internal fuse protection | Fuse |
| Duty cycle | 100% |
| Insulation class | H |
| Coil characteristics | 24 V DC: 3.5 W 24 V AC: 50/60 Hz, power 3.5 VA |
| Permissible voltage fluctuations | -15 % / +10 % |
| Certificate issuing authority | GYJ17.1237X |
| Type of ignition protection for gas | Ex e mb IIC T5/T6 Gb |
| Type of (ignition) protection for dust | Ex tD A21 IP66 T95°C/T80°C |
| Explosive ambient temperature | T5, T95°C: -25°C <= Ta <= +60°C T6, T80°C: -25°C <= Ta <= +50°C |
| Degree of protection | IP66 |
| Product weight | 580 g |
| Electrical connection | Terminal box, cable entry thread M20x1.5 |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
