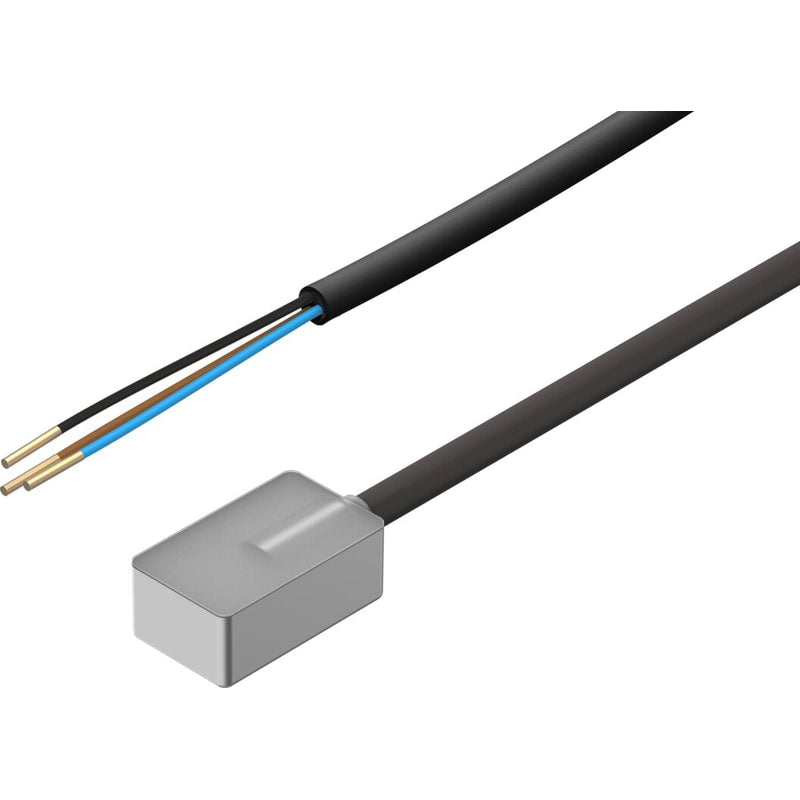

Proximity switch
SDBF-FCS-1L-PU-K-9-N-LE
8117062
GTIN 4052568459932
Vendor Festo
- Design
- Block design
- DC operating voltage range
- 6 V - 24 V
- Max. switching capacity DC
- 12 W
- Switching output
- PNP
Regular price
$45.50
Unit price
SDBF-FCS-1L-PU-K-9-N-LE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDBF-FCS-1L-PU-K-9-N-LE
Regular price
$45.50
Unit price
SDBF-FCS-1L-PU-K-9-N-LE is backordered and will ship as soon as it is back in stock.
| Type code | SDBF |
|---|---|
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, number of pins/wires | 3 |
| Design | Block design |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Measured variable | Position |
| Measuring principle | Magneto-resistive |
| Ambient temperature | -20 °C ... 80 °C |
| Switching output | PNP |
| Switching element function | N/O contact |
| On time | 0.004 ms |
| Max. output current | 500 mA |
| Max. switching capacity DC | 12 W |
| Voltage drop | 1 V |
| Short-circuit protection | yes |
| DC operating voltage range | 6 V ... 24 V |
| Reverse polarity protection | yes |
| Connection outlet orientation | Longitudinal |
| Color cable sheath | Gray |
| Material of cable sheath | PVC |
| Type of mounting | With mounting kit |
| Mounting position | Any |
| Housing colour | Transparent |
| Housing material | PA |
| Switching status indication | LED |
| Ambient temperature with flexible cable installation | -20 °C ... 80 °C |
| Degree of protection | IP67NEMA 4 |
