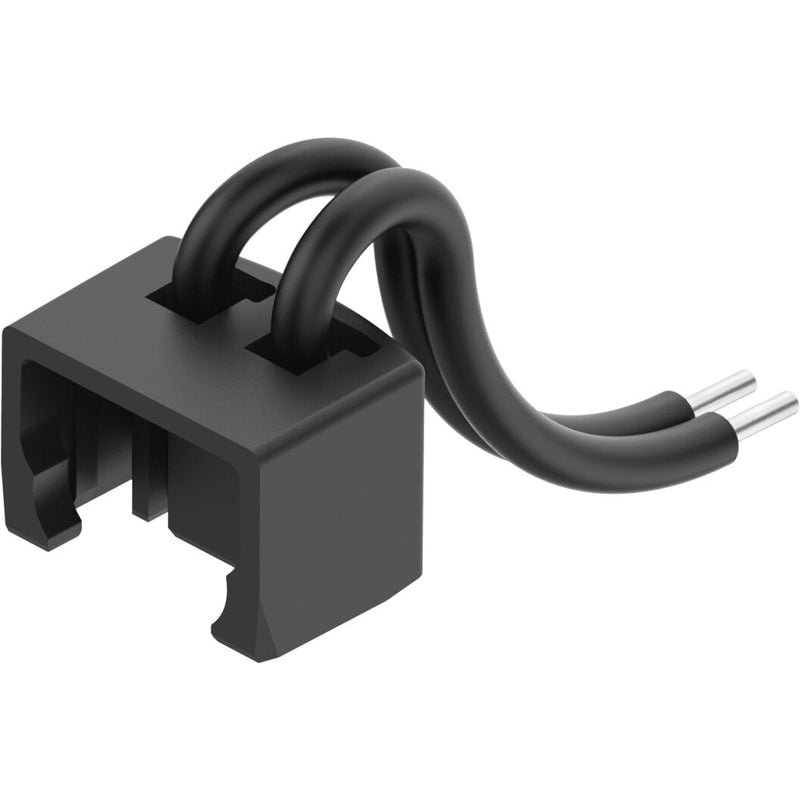

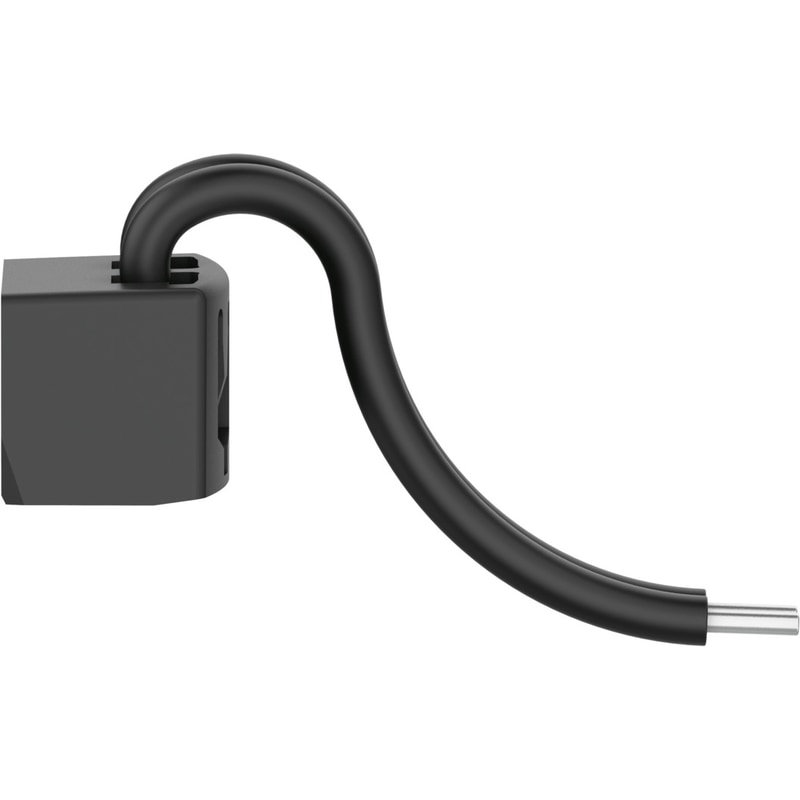

Connecting cable
NEBV-Q7G2-PD-0.1-N-LE2
8115892
GTIN 4052568459604
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Connection diagram Q7
- Electrical connection 2, connection type
- Twin wire
- Electrical connection 2, connection technology
- Open end
- Cable length
- 0.1 m
Regular price
$5.37
Unit price
NEBV-Q7G2-PD-0.1-N-LE2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBV-Q7G2-PD-0.1-N-LE2
Regular price
$5.37
Unit price
NEBV-Q7G2-PD-0.1-N-LE2 is backordered and will ship as soon as it is back in stock.
| Type code | NEBV |
|---|---|
| Nominal conductor cross section | AWG28 |
| Shield | no |
| Cable designation | Without label holder |
| Contact durability | 20 |
| Product weight | 0.5 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Connection diagram Q7 |
| Electrical connection 1, number of pins/wires | 2 |
| Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection 1, type of mounting | Inserted |
| Electrical connection for input 1, connection pattern | 00997311 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Twin wire |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 |
| DC operating voltage range | 0 V ... 30 V |
| Current rating at 40°C | 0.3 A |
| Surge resistance | 1.2 kV |
| Reverse polarity protection | no |
| Protective earth connection | Not available |
| Information on operation | Only operate with external power reduction |
| Cable length | 0.1 m |
| Cable characteristic | Basic |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 11 mm |
| Bending radius, flexible cable installation | ≥ 16.5 mm |
| Cable diameter | 1.1 mm |
| Cable design | 2 x 0.08 mm² |
| Nominal conductor cross section | 0.08 mm² |
| Wire ends | Tin-plated |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| Storage temperature | -20 °C ... 70 °C |
| CE marking (see declaration of conformity) | As per EU RoHS directive |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Housing material | PA-reinforced |
| Housing colour | Black |
| Material of pin contacts | Copper alloy, gold-plated |
| Insulating sheath material | PVC |
