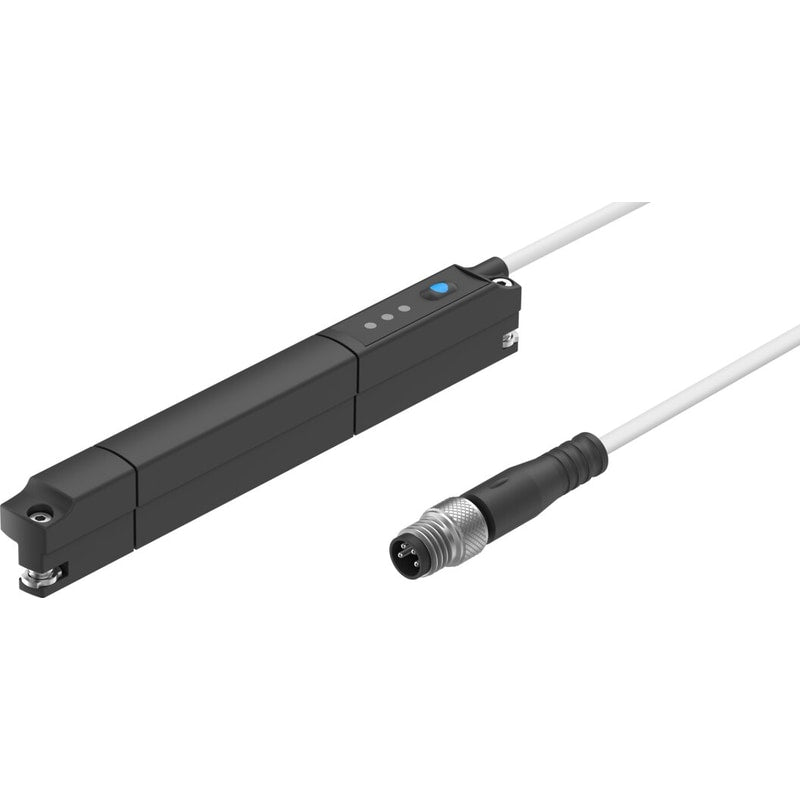

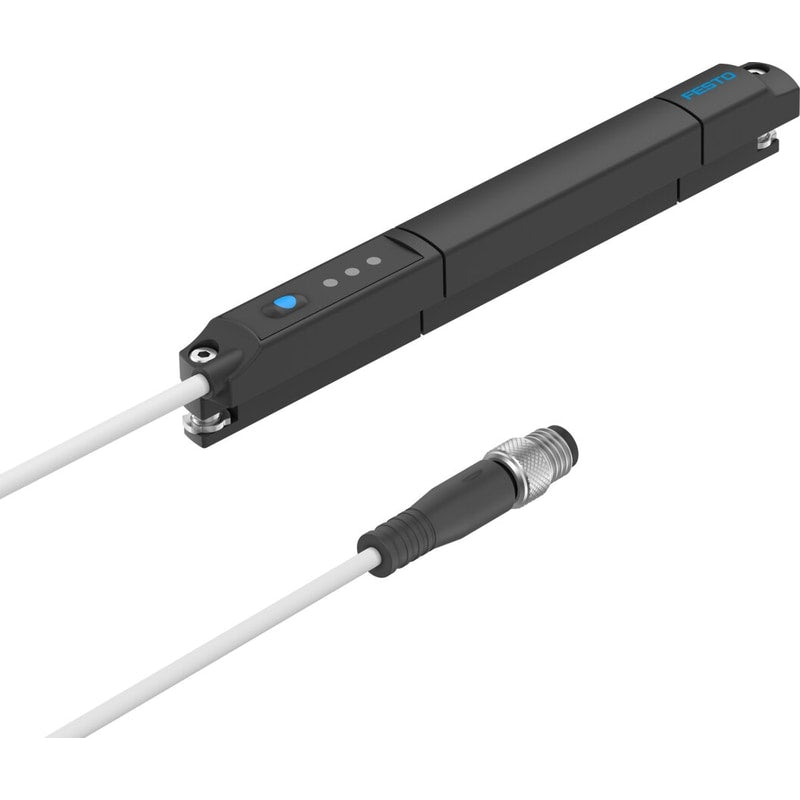

Position transmitter
SDAT-MHS-M100-1L-SV-E-0.3-M8
8115396
GTIN 4052568583101
Vendor Festo
- Design
- for T-slot
- Sensing range
- 0 µm - 100000 µm
- Analog output
- 0 - 10 V
- Displacement resolution
- 0.05 mm
Regular price
$486.18
Unit price
SDAT-MHS-M100-1L-SV-E-0.3-M8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDAT-MHS-M100-1L-SV-E-0.3-M8
Regular price
$486.18
Unit price
SDAT-MHS-M100-1L-SV-E-0.3-M8 is backordered and will ship as soon as it is back in stock.
| Design | for T-slot |
|---|---|
| Symbol | 00997376 |
| Certification | RCM compliance mark c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| KC characters | KC EMC |
| Note on materials | RoHS-compliant Halogen-free |
| Measured variable | Position |
| Measuring principle | Magnetic Hall |
| Sensing range | 0 µm ... 100000 µm |
| Ambient temperature | -25 °C ... 70 °C |
| Typical sampling interval | 1 ms |
| Max. travel speed | 3 m/s |
| Displacement resolution | 0.05 mm |
| Repetition accuracy | 0.1 mm |
| Switching output | PNP |
| Switching element function | N/C contact/N/O contact switchable |
| On time | < 2 ms |
| Switch-off time | < 2 ms |
| Max. switching frequency | 1000 Hz |
| Max. output current | 100 mA |
| Max. switching capacity DC | 2.7 W |
| Voltage drop | 2.5 V |
| Analog output | 0 - 10 V |
| Sensitivity | 0.09 V/mm |
| Typical linearity error in ± mm | ±0.25 mm |
| Min. load resistance of voltage output | 20 kOhm |
| Short-circuit protection | yes |
| Overload protection | Available |
| Protocol | I-Port IO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, profile | Smart sensor profile |
| IO-Link®, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel |
| IO-Link®, communication mode | COM3 (230.4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, process data content IN | 12 bit PDV (position measurement) 4 bit BDC (position monitoring) |
| IO-Link®, minimum cycle time | 1 ms |
| DC operating voltage range | 15 V ... 30 V |
| Residual ripple | 10 % |
| Reverse polarity protection | for all electrical connections |

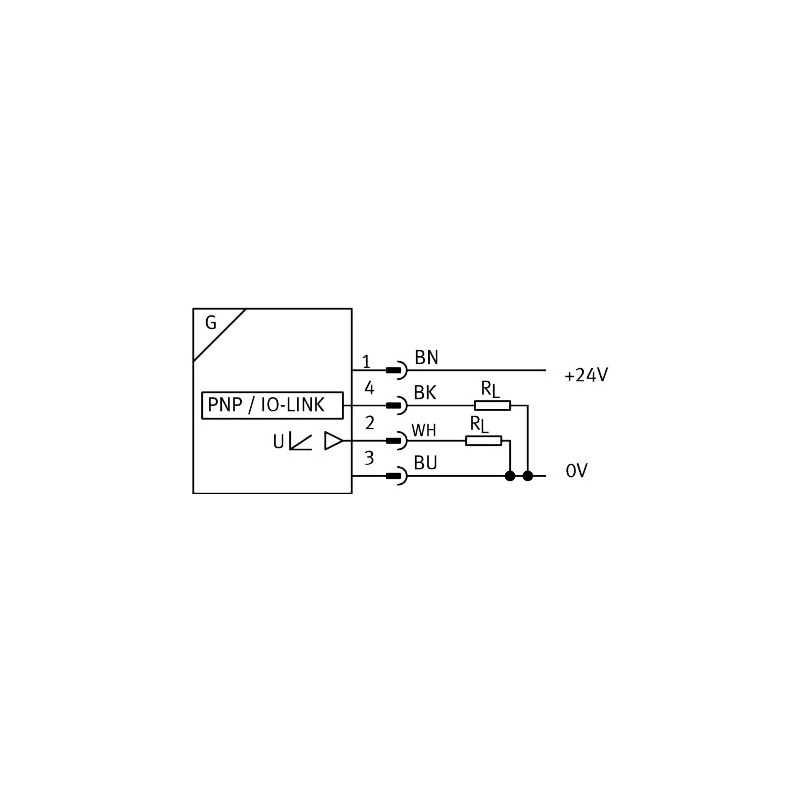

| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00991171 |
| Connection outlet orientation | Longitudinal |
| Material of pin contacts | Copper alloy Gold-plated |
| Connector cable test conditions | Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 28 mm Torsional resistance: > 300 000 cycles, ±270°/0.1 m |
| Cable length | 0.3 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Screwed tightly Can be inserted in slot from above |
| Mounting position | Any |
| Product weight | 26 g |
| Housing material | Brass, nickel-plated PA-reinforced Polyester High-alloy stainless steel |
| Material of union nut | Brass, nickel-plated |
| Film material | Polyester |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Status indicator | LED red |
| Setting options | IO-Link® Pushbutton |
| Ambient temperature with flexible cable installation | -20 °C ... 70 °C |
| Degree of protection | IP65 IP68 |
| LABS conformity | VDMA24364-B2-L |
