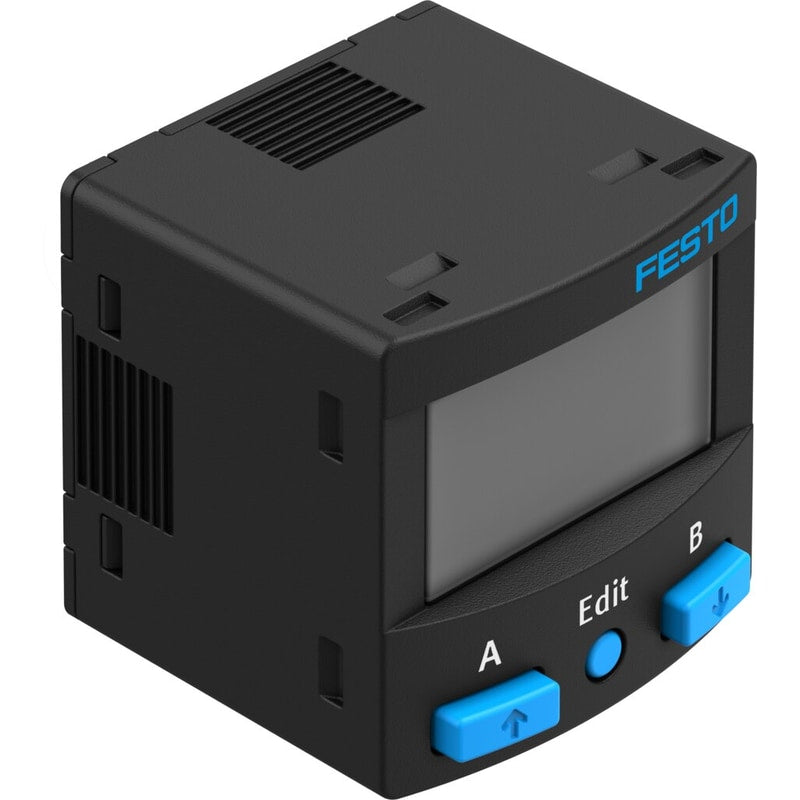

Pressure sensor
SPAN-B-B11R-M5FAL-PN-L1+2.5S
8114771
GTIN 4052568552862
Vendor Festo
- Pressure measuring range initial value
- -1 bar
- Pressure measuring range end value
- 10 bar
- Switching element function
- N/C contact/N/O contact switchable
- Pneumatic connection
- Internal thread M5
Regular price
$161.22
Unit price
SPAN-B-B11R-M5FAL-PN-L1+2.5S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPAN-B-B11R-M5FAL-PN-L1+2.5S
Regular price
$161.22
Unit price
SPAN-B-B11R-M5FAL-PN-L1+2.5S is backordered and will ship as soon as it is back in stock.
| Symbol | 00997331 |
|---|---|
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| KC characters | KC EMC |
| Note on materials | RoHS-compliant |
| Measured variable | Relative pressure |
| Method of measurement | Piezoresistive pressure sensor |
| Pressure measuring range initial value | -0.1 MPa |
| Pressure measuring range initial value | -1 bar |
| Pressure measuring range initial value | -14.5 psi |
| Pressure measuring range end value | 1 MPa |
| Pressure measuring range end value | 10 bar |
| Pressure measuring range end value | 145 psi |
| Max. overload pressure | 15 bar |
| Overload pressure | 1.5 MPa |
| Overload pressure | 15 bar |
| Overload pressure | 217.5 psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| Accuracy in ± % FS | 1.5 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature co-efficient in ± %FS/K | 0.1 %FS/K |
| Switching output | PNP/NPN switchable |
| Switching function | Window comparator Threshold value comparator |
| Switching element function | N/C contact/N/O contact switchable |
| Max. output current | 80 mA |
| Short-circuit protection | yes |
| DC operating voltage range | 10.8 V ... 30 V |
| Reverse polarity protection | for all electrical connections |

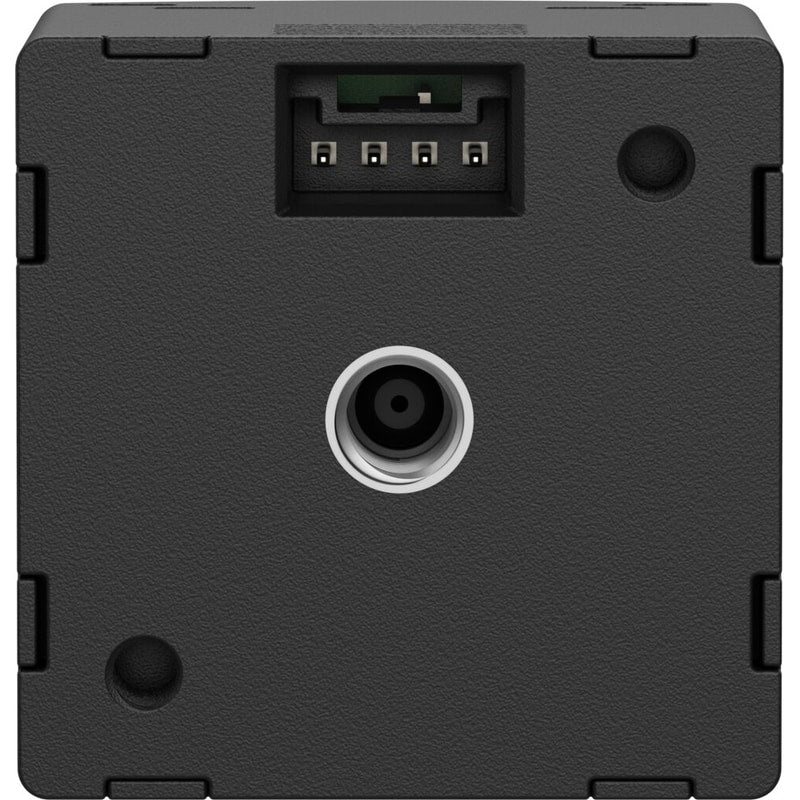

| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | Connection diagram L1J |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection for input 1, connection pattern | 00995428 |
| Type of mounting | Front panel mounting With wall/surface bracket |
| Mounting position | Any |

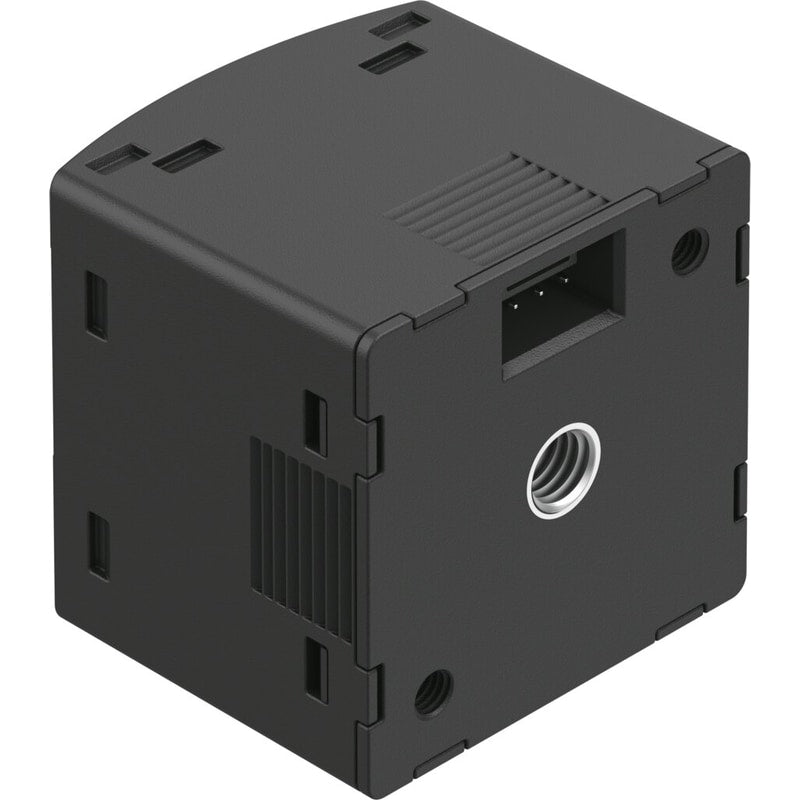

| Pneumatic connection | Internal thread M5 |
| Product weight | 21 g |
| Housing material | PA-reinforced |
| Materials in contact with the media | Wrought aluminum alloy, anodized FPM PA-reinforced |

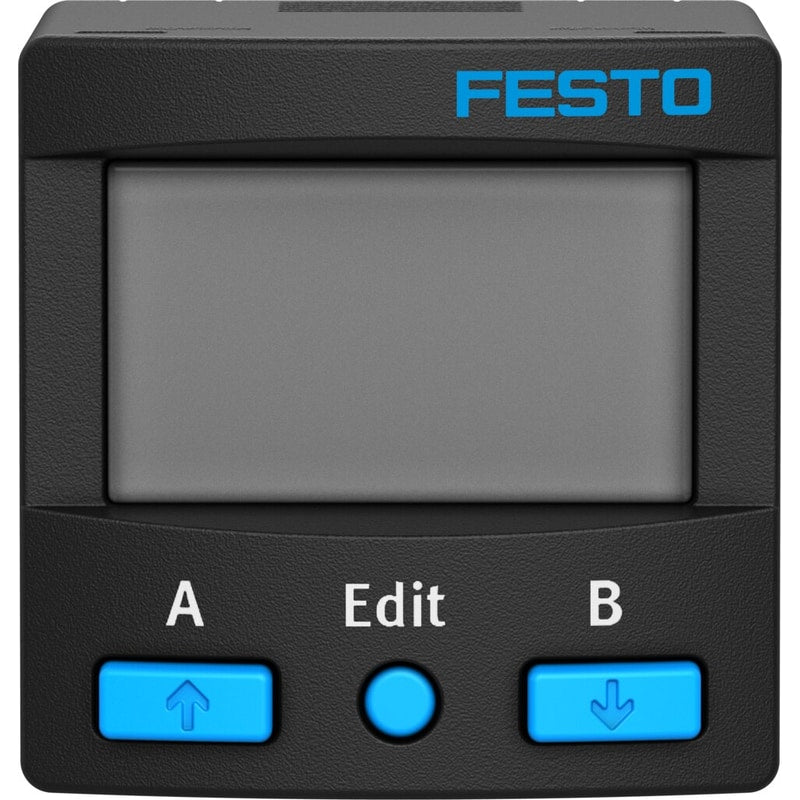

| Display type | Illuminated LCD |
| Displayable unit(s) | MPa bar inHg kPa mmHg psi |
| Setting options | Teach-in Via display and pushbuttons |
| Protection against tampering | PIN code |
| Setting range threshold value | 0 % ... 100 % |
| Setting range hysteresis | 0 % ... 90 % |
| Degree of protection | IP40 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS conformity | VDMA24364-B1/B2-L |
| RSBP classification to CD-0033 | F1a |
