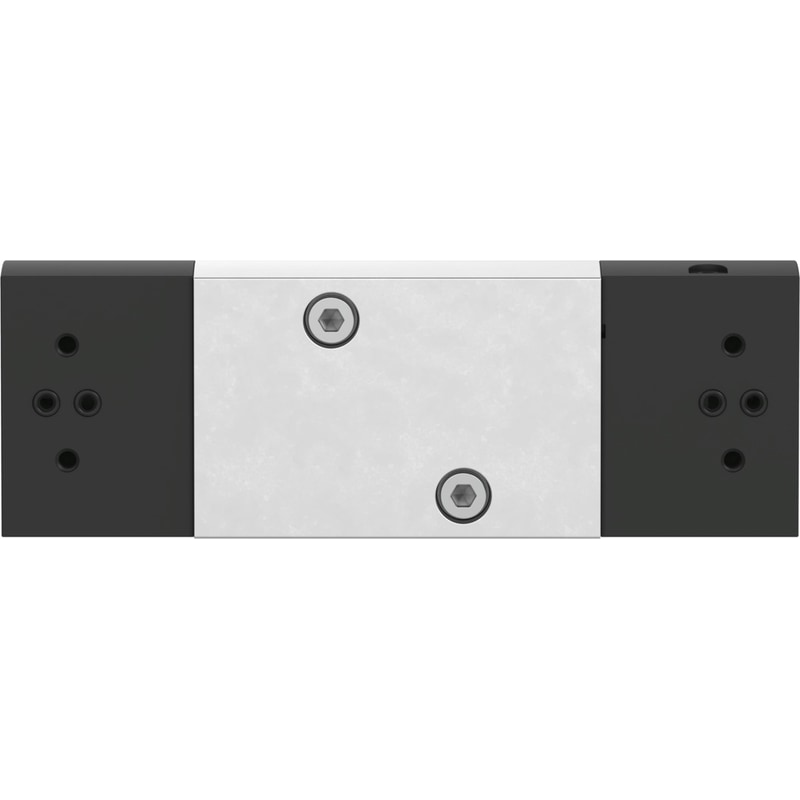

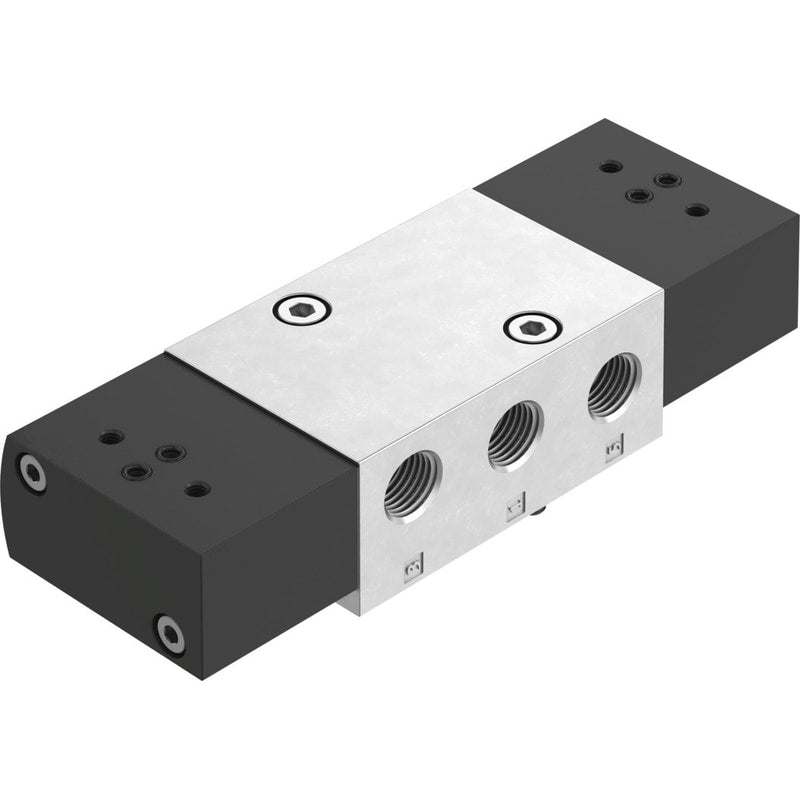

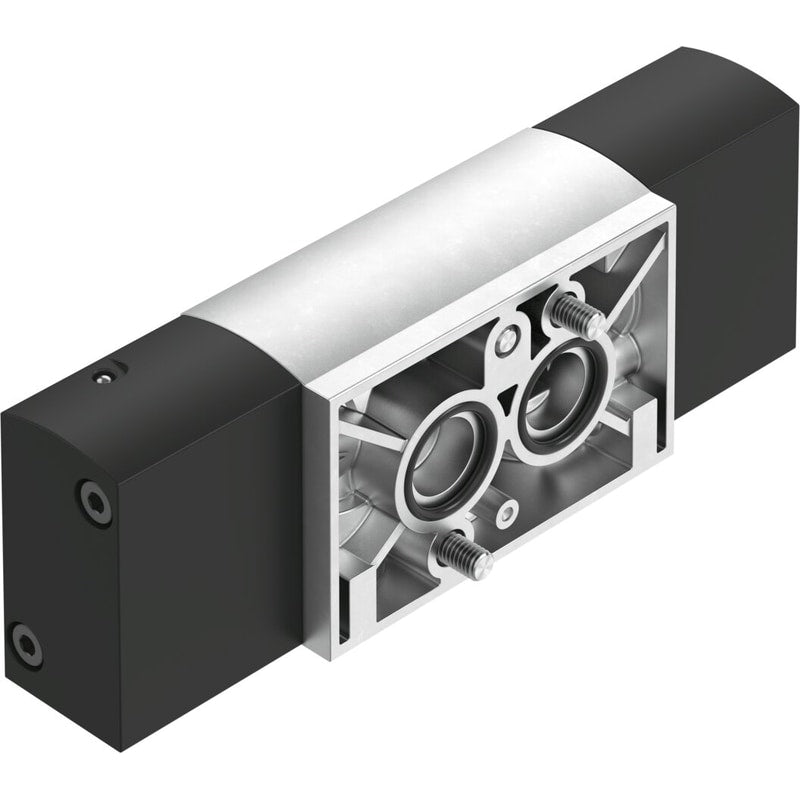

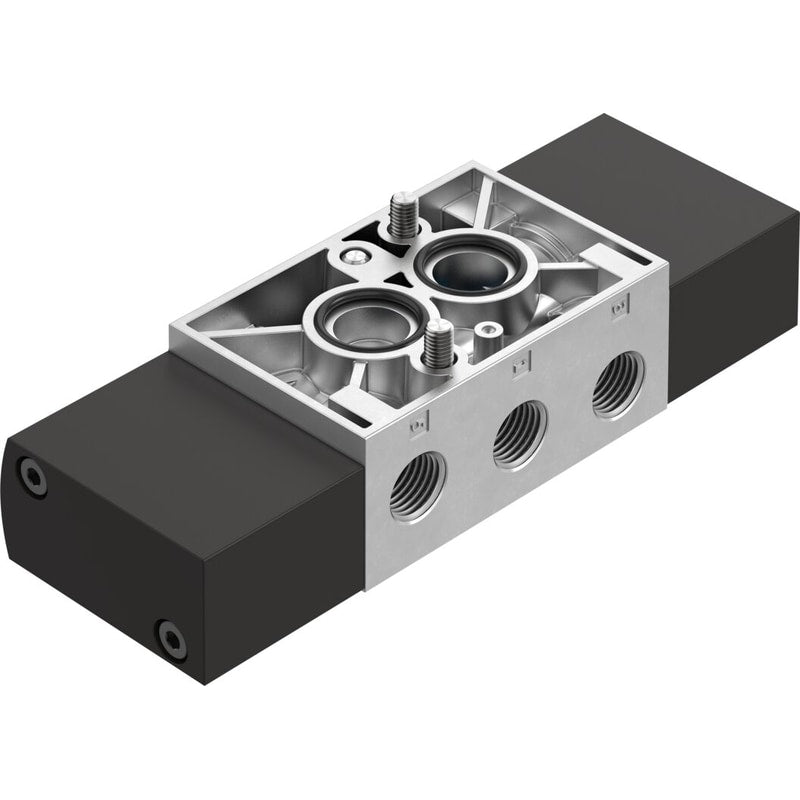

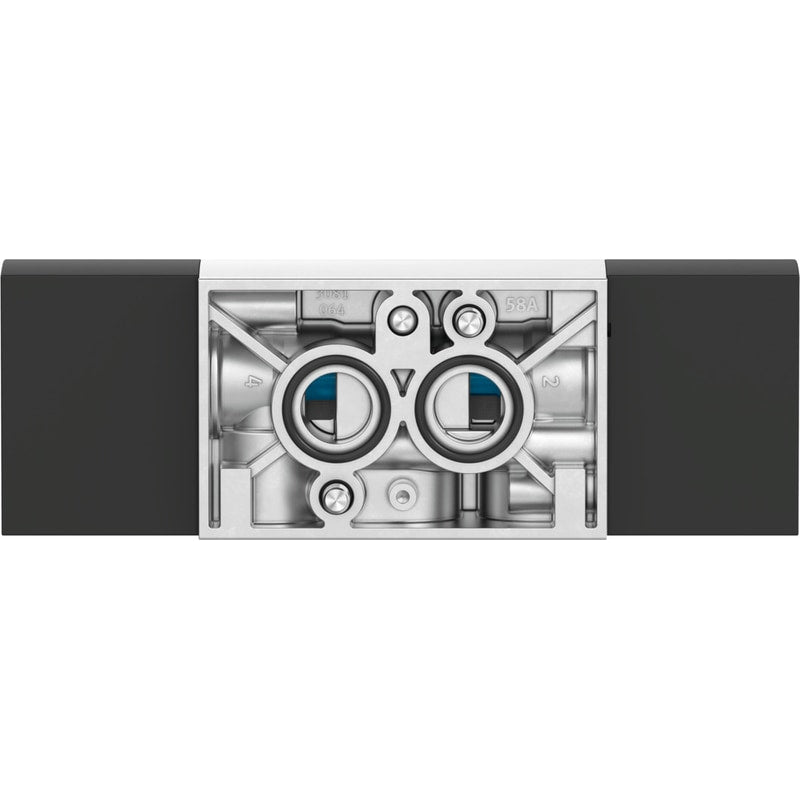

Solenoid valve
VSNC-FT-B52-N14-P2
8114699
GTIN 4052568465759
Vendor Festo
- Structural design
- Plate seat
- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 1000 l/min
- Operating pressure
- 1.5 bar - 8 bar
Regular price
$204.13
Unit price
VSNC-FT-B52-N14-P2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSNC-FT-B52-N14-P2
Regular price
$204.13
Unit price
VSNC-FT-B52-N14-P2 is backordered and will ship as soon as it is back in stock.
| Valve function | 5/2, bistable |
|---|---|
| Actuation type | Electrical |
| Width | 32 mm |
| Standard nominal flow rate | 1000 l/min |
| Pneumatic working port | NAMUR port pattern |
| Operating voltage | Via solenoid coil, must be ordered separately |
| Operating pressure | 1.5 bar ... 8 bar |
| Structural design | Plate seat |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | None |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |
| Symbol | 00991953 |
| Lap | Underlap |
| Changeover time | 2 ms |
| Duty cycle | 100% |
| Coil characteristics | See solenoid coil, to be ordered separately |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -20 °C ... 60 °C |
| Ambient temperature | -20 °C ... 60 °C |
| Product weight | 422 g |
| Type of mounting | With through-hole |
| Venting hole connection | Not ducted |
| Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | NAMUR connection diagram |
| Pneumatic connection 3 | 1/4 NPT |
| Pneumatic connection 4 | NAMUR connection diagram |
| Pneumatic connection 5 | 1/4 NPT |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy |
| Material of screws | High-alloy stainless steel |
