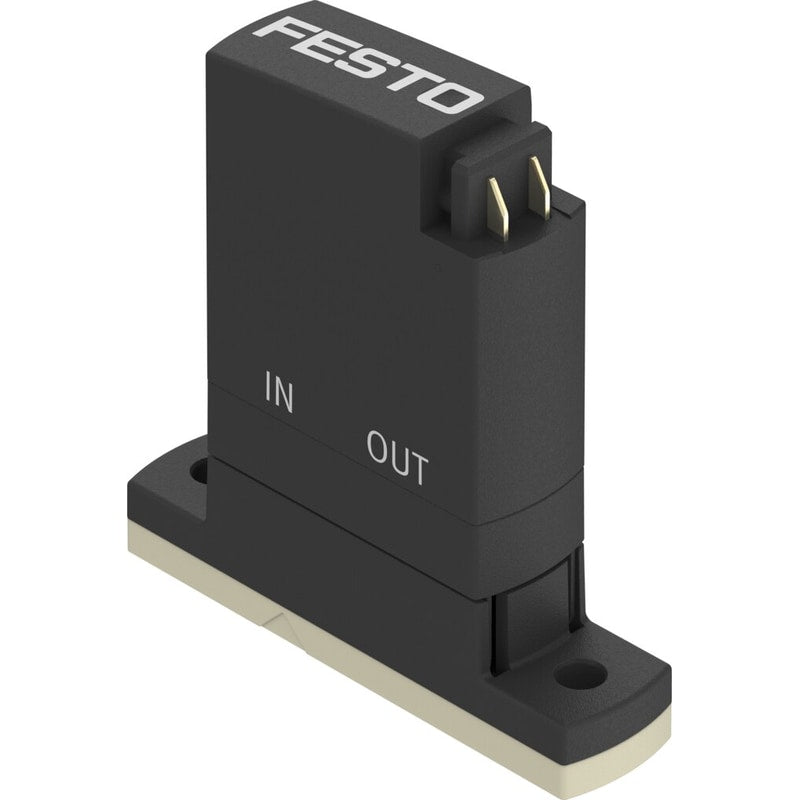

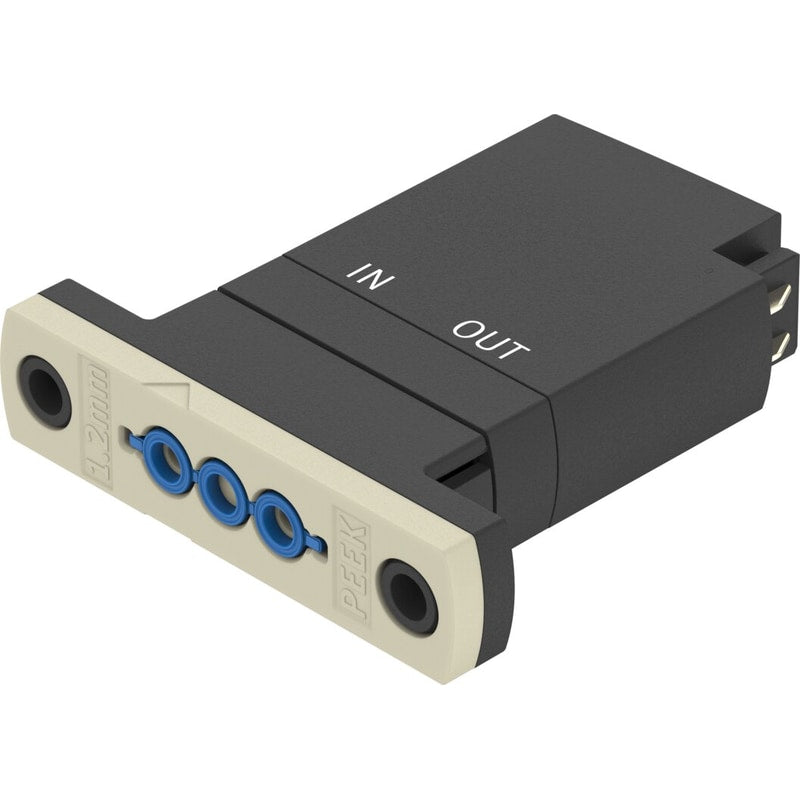

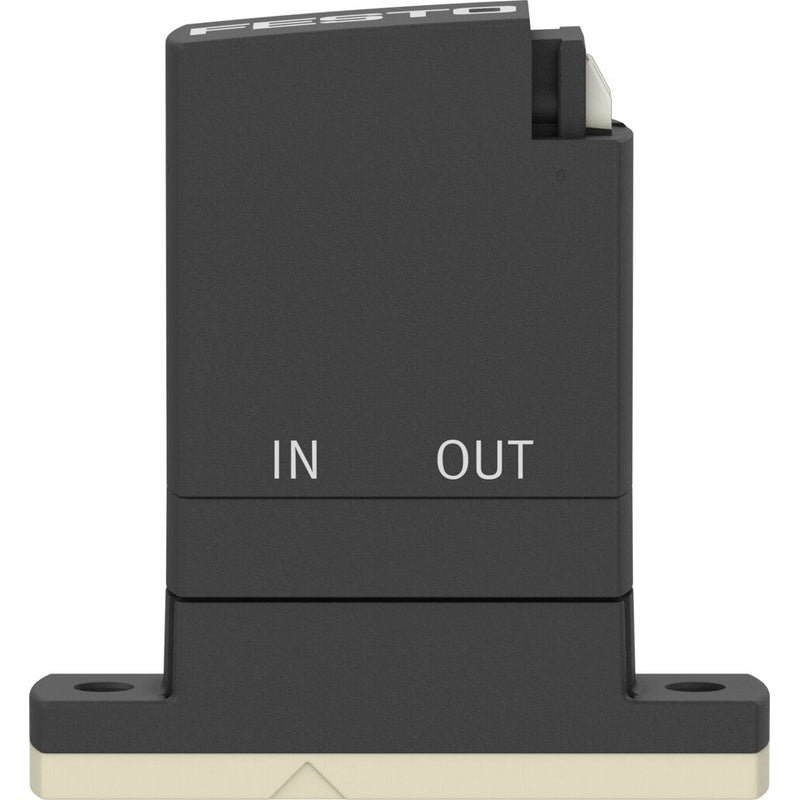

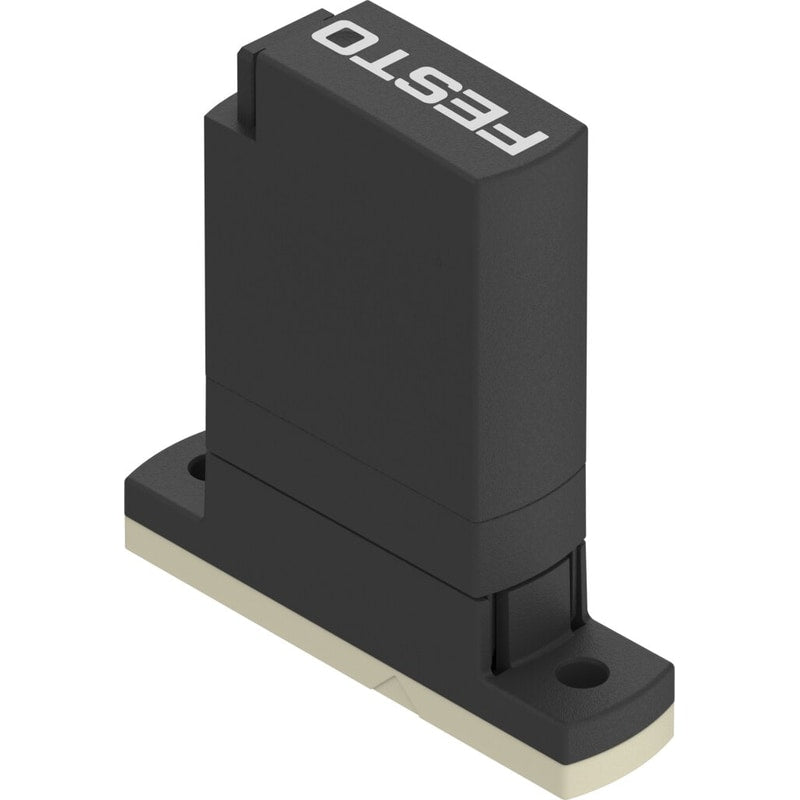

Solenoid valve
VYKA-F7-M22U-12-D2-PV-5YQ7
8114569
GTIN 4052568459574
Vendor Festo
Regular price
$112.46
Unit price
VYKA-F7-M22U-12-D2-PV-5YQ7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VYKA-F7-M22U-12-D2-PV-5YQ7
Regular price
$112.46
Unit price
VYKA-F7-M22U-12-D2-PV-5YQ7 is backordered and will ship as soon as it is back in stock.
| Type code | VYKA |
|---|---|
| Electrical connection 1, connection technology | Connection diagram Q7 |
| Note on degree of protection | In mounted state |
| Electrical connection 1, connection type | Socket |
| Fluid connector | Flange |
| Note on operating voltage range DC | With electrical sub-base VAVE-K1-… |
| Materials in contact with the media | FPMPEEK |
| Information on medium | Observe resistance of materials that come into contact with mediaMaximum particle size 5 µm |
| For use in the food industry | See supplementary material information |
| Internal volume | 20 µl including 2 fluid connections |
| Electrical connection for input 1, connection pattern | 00997312 |
| Note on switching frequency | Dependent on the ambient temperature and installation state |
| Size | 7 |
| Note on power consumption | Low-current phase 0.3 W, high-current phase 3.5 W for 60 ms, in combination with VAVE-K1-… |
| Water flow rate at max. operating pressure | 0.018 m³/h |
| Burst pressure | 2.3 MPa |
| Electrical connection 1, number of pins/wires | 2 |
| Medium pressure | 0 psi ... 29 psi |
| Pressure of medium, reversible | 0 MPa ... 0.1 MPa |
| Electrical power consumption | 3.5 W |
| Width dimension | 7.5 mm |
| DC operating voltage range | 12 V ... 26 V |
| Medium pressure | 0 MPa ... 0.2 MPa |
| Pressure of medium, reversible | 0 psi ... 14.5 psi |
| Storage temperature | -20 °C ... 70 °C |
| Application note | For indoor use only |
| Design | Rocker valve with diaphragm seal |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | With through-hole for M2 screw |
| Nominal width | 1.2 mm |
| Valve function | 2/2, open, monostable |
| Manual override | None |
| Flow direction | Reversible with restrictions |
| Medium | Liquid mediaGaseous media |
| Coil characteristics | 12 - 26 V DC: low-current phase 0.06 W, high-current phase 2.2 W |
| Insulation class | B |
| Permissible voltage fluctuations | +/- 10 % |
| Duty cycle | 100% in combination with holding current reductionFollow the instructions on operating the air solenoid valves. |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Symbol | 00995700 |
| Temperature of medium | 0 °C ... 50 °C |
| Temperature of liquid media | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| Flow rate Kv | 0.013 m³/h |
| Switching time off | 4 ms |
| Response time "off" for liquid media | 6 ms |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | PA-reinforcedPEEKPPA-reinforced |
| Seals material | FPM |
| Diaphragm material | FPM |
| Product weight | 10.9 g |
| Degree of protection | IP40 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Max. switching frequency | 6 Hz |
