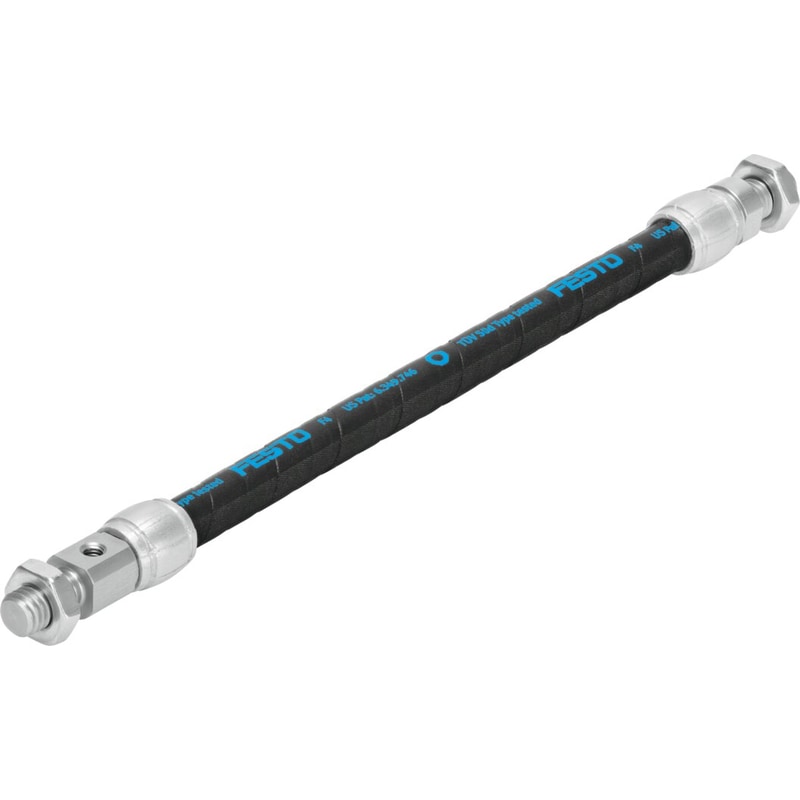

Fluidic muscle
DMSP-5-50N-RM-CM
8114532
GTIN 4052568459437
Vendor Festo
- Size
- 5
- Theoretical force at 6 bar
- 140 N
- Nominal length
- 50 mm
- Max. contraction
- 20 % of nominal length
Regular price
$196.01
Unit price
DMSP-5-50N-RM-CM is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DMSP-5-50N-RM-CM
Regular price
$196.01
Unit price
DMSP-5-50N-RM-CM is backordered and will ship as soon as it is back in stock.
| Size | 5 |
|---|---|
| Diameter expansion at max. contraction | 12 mm |
| Stroke | 0 mm ... 200 mm |
| Max. contraction | 20 % of nominal length |
| Max. pre-tensioning | 1 % of nominal length |
| Nominal length | 50 mm |
| Muscle repetition accuracy | <= 1 % of nominal length, cyclic |
| Permissible parallelism tolerance | ±0.5 % up to a nominal length of 400 mm |
| Permissible angle tolerance | ≤ 1 deg |
| Type code | DMSP |
| Mounting position | Any |
| Design | Contracting diaphragm |
| Symbol | 00991121 |
| Operating pressure | 0 bar ... 6 bar |
| Mode of operation | Single-actingPulling |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -5 °C ... 60 °C |
| Certification | German Technical Control Board (TÜV) |
| Maximum additional load freely suspended | 5 kg |
| Theoretical force Fluidic Muscle at maximum operating pressure | 140 N |
| Theoretical force at 6 bar | 140 N |
| Pneumatic connection | M3 |
| Note on materials | Free of copper and PTFEContains paint-wetting impairment substancesRoHS-compliant |
| Material of flange | Wrought aluminum alloyPlain anodized |
| Sleeve material | Wrought aluminum alloyPlain anodized |
| Diaphragm material | ARCR |
| Nut material | Steel Galvanized |
