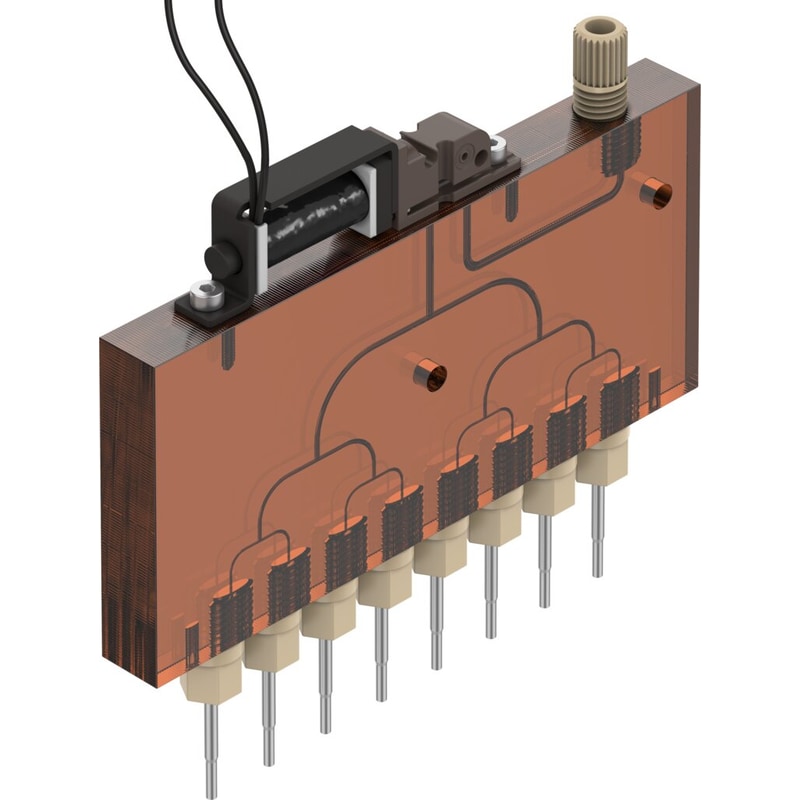

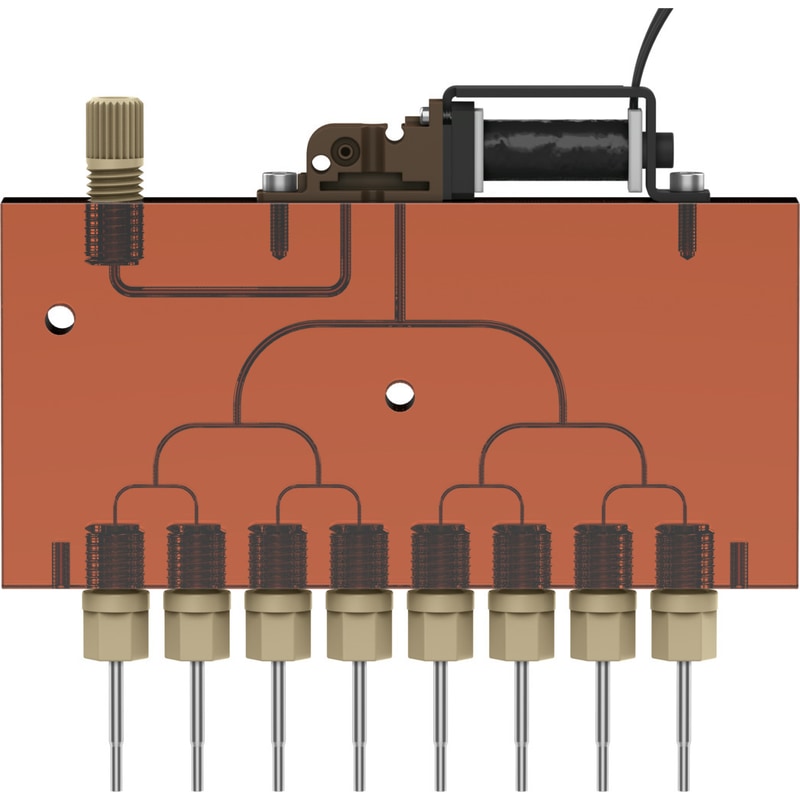

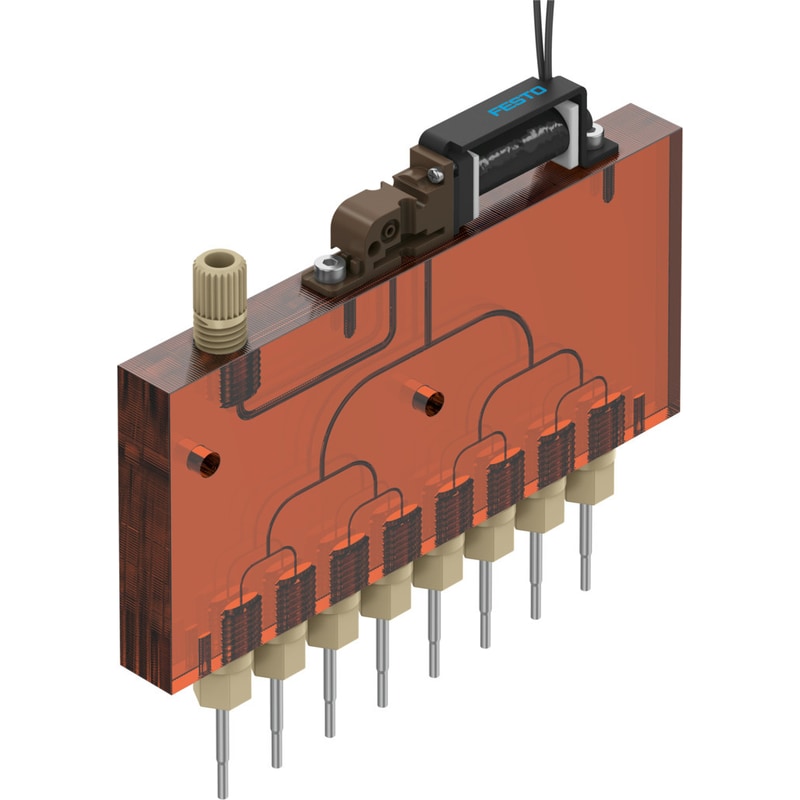

Dispense head
VTOI-V8-30D3-U14-08-V-S015-1
8114037
GTIN 4052568462376
Vendor Festo
Regular price
$1,173.23
Unit price
VTOI-V8-30D3-U14-08-V-S015-1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VTOI-V8-30D3-U14-08-V-S015-1
Regular price
$1,173.23
Unit price
VTOI-V8-30D3-U14-08-V-S015-1 is backordered and will ship as soon as it is back in stock.
| Valve function | 2/2, closed, monostable |
|---|---|
| Operating pressure | 0MPa |
| Operating pressure | 0bar |
| Operating pressure | 0psi |
| Internal volume | 10 µl fluid space valve |
| Nominal width | 0.8mm |
| Nominal width of dosing needle | 0.3mm |
| Length of dosing needle | 30mm |
| Width dimension | 9mm |
| Sealing principle | Soft |
| Mounting position | Vertical |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Suitability for vacuum | no |
| Min. dosing volume | 1µl |
| Note on dosing volume | Depending on the configuration, environment and application |
| Typical dosing precision | ≤ 5 % tip-to-tip CV |
| Note on dosing precision | Depending on the configuration, environment and application |
| Max. switching frequency | 4Hz |
| Note on switching frequency | Dependent on the ambient temperature and installation state |
| On switching time | 7ms |
| Note on switching time on | Depending on the configuration, environment and application |
| Switching time off | 2ms |
| Note on switching time off | Depending on the configuration, environment and application |
| Duty cycle | 100% |
| Electrical power consumption | 1.8W |
| Nominal operating voltage DC | 24V |
| Permissible voltage fluctuations | +/- 10 % |
| Medium | Liquid media |
| Information on medium | Maximum particle size 20 µm |
| Application note | See application note (available on the support portal at festo.com) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | 5°C |
| Temperature of medium | 5°C |
| Degree of protection | IP30 |
| Note on degree of protection | In mounted state |
| Ambient temperature | 5°C |
| Product weight | 52g |
| Electrical connection | 2-wire |
| Cable length | 0.15m |
| Wire ends | Stripped |
| Nominal conductor cross section | AWG28 |
| Type of mounting | With through-hole for M3 screw |
| Fluid connector | Internal thread 1/4-28 UNF-2B |
| Note on fluid connector | Fitting enclosed for pneumatic tubing with 3 mm outside diameter |
| Material of dosing needle | High-alloy stainless steel |
| Material number for dosing needle | 1.4404 |
| Note on materials | RoHS-compliant |
| Materials in contact with the media | ETFE |
| Actuation type | Electrical |
| Nominal altitude of use above sea level | <= 2000 m NHN |
| Relative air humidity | 0 - 95 % |
