One-way flow control valve

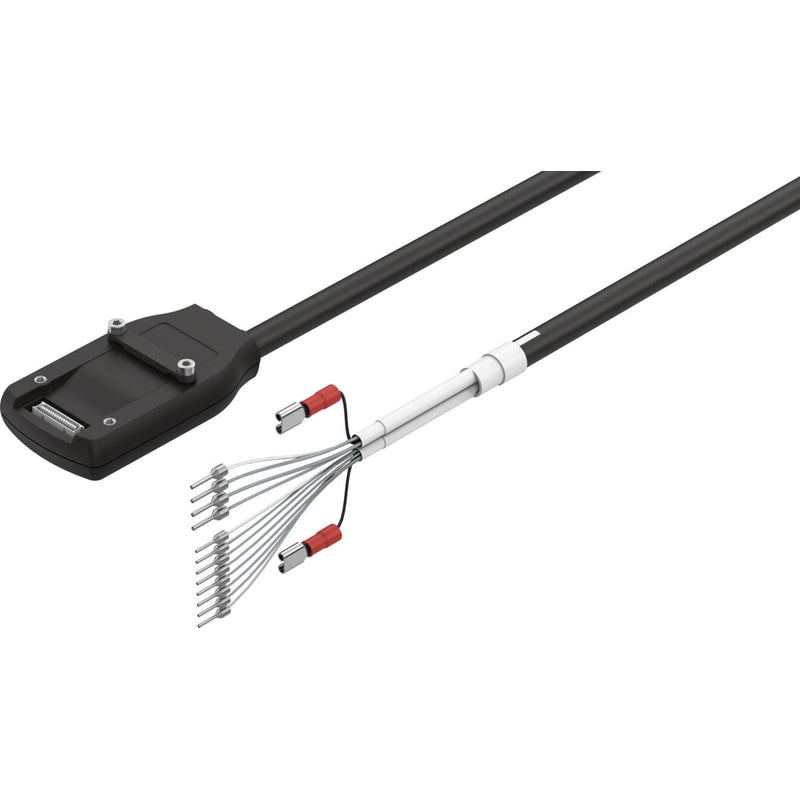

NEBM-SF1W31-EH-10-Q15N-LE14
8113310
GTIN 4052568462352
Vendor Festo
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- Connection diagram F1
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Cable length
- 10 m
Regular price
$432.90
Unit price
NEBM-SF1W31-EH-10-Q15N-LE14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBM-SF1W31-EH-10-Q15N-LE14
Regular price
$432.90
Unit price
NEBM-SF1W31-EH-10-Q15N-LE14 is backordered and will ship as soon as it is back in stock.
| Type code | NEBM |
|---|---|
| Electrical connection 1, information on cable outlet | 90° |
| Conforms to standard | DIN 47100 |
| Cable designation | Without label holder |
| Contact durability | 30 |
| Product weight | 2960 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | Connection diagram F1 |
| Electrical connection 1, number of pins/wires | 31 |
| Electrical connection 1, occupied pins/wires | 31 |
| Electrical connection 1, type of mounting | Snap-locking |
| Electrical connection for input 1, connection pattern | 00995929 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 14 |
| Electrical connection 2, occupied pins/wires | 14 |
| DC operating voltage range | 0 V ... 50 V |
| Nominal operating voltage DC | 24 V |
| Current rating at 40°C | 0.5 A |
| Surge resistance | 0.25 kV |
| Cable length | 10 m |
| Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 49.5 mm |
| Bending radius, flexible cable installation | ≥ 74.25 mm |
| Cable diameter | 9.9 mm |
| Cable diameter tolerance | ± 0.2 mm |
| Cable design | 1 x (6 x 0.35 mm²) + 2 x (4 x 0.15 mm²) |
| Nominal conductor cross section | 0.15 mm²0.35 mm² |
| Wire ends | Cable end sleeve |
| Degree of protection | IP20 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -20 °C ... 75 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Storage temperature | -25 °C ... 55 °C |
| CE marking (see declaration of conformity) | As per EU RoHS directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Contamination level | 1 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Black |
| Housing material | PA |
| Housing colour | Black |
| Material of pin contacts | Copper alloy, tin-plated |
