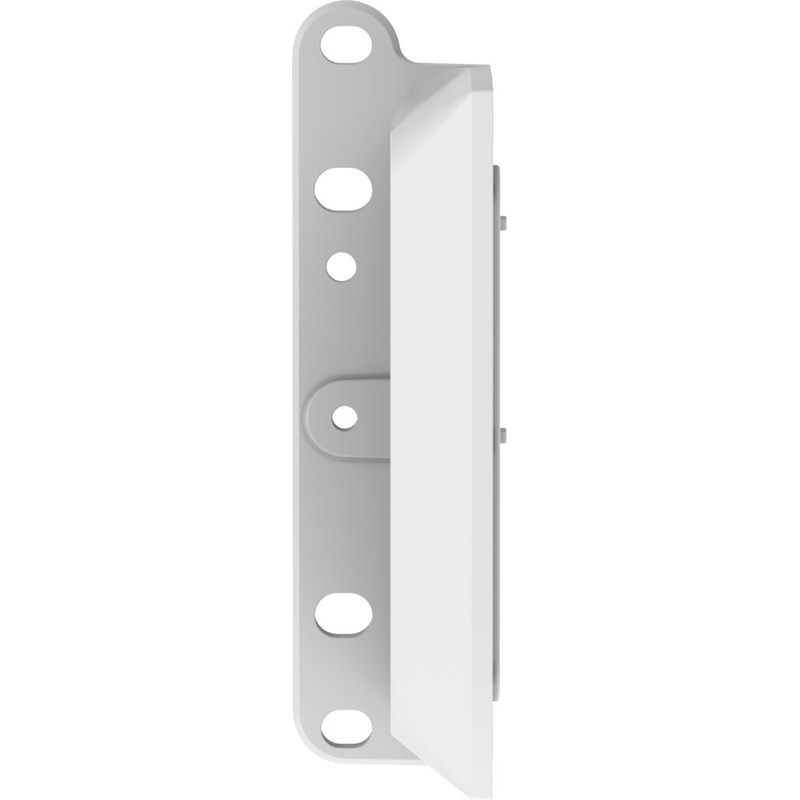

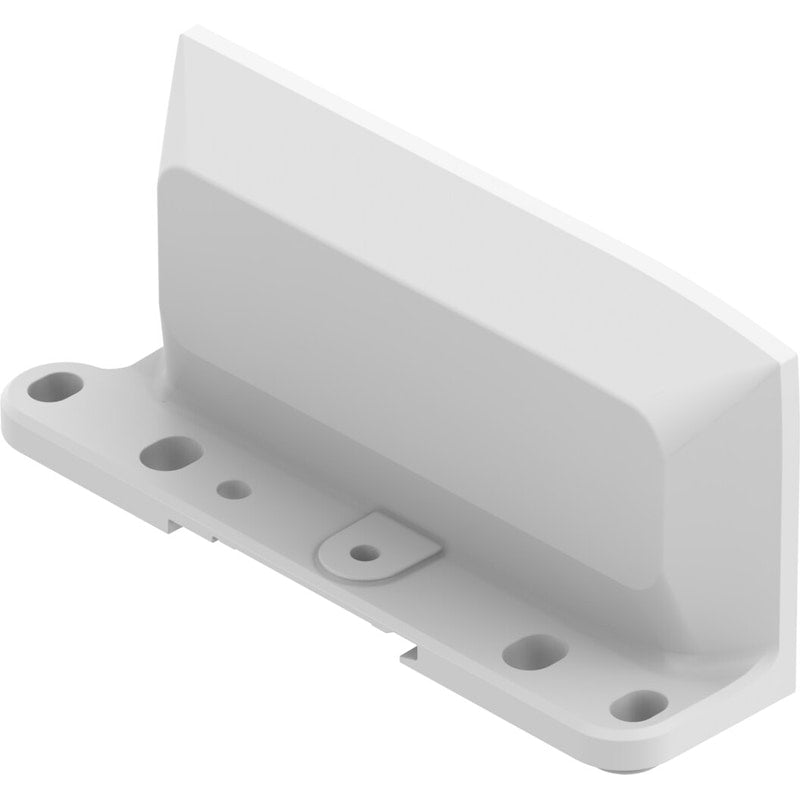

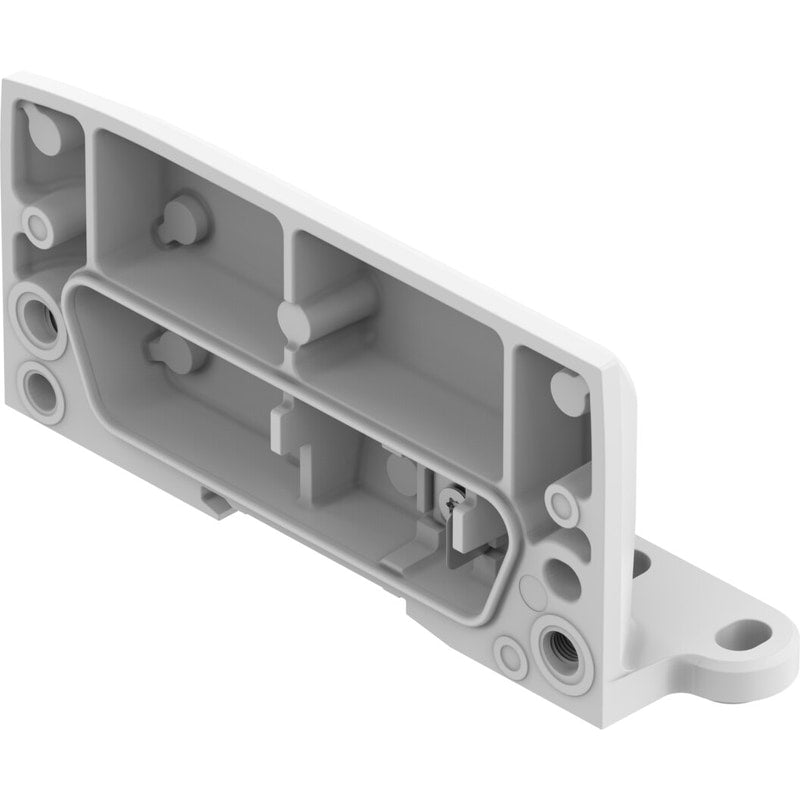

End plate
CPX-AP-A-EPR
8112477
GTIN 4052568589523
Vendor Festo
Regular price
$46.77
Unit price
CPX-AP-A-EPR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-AP-A-EPR
Regular price
$46.77
Unit price
CPX-AP-A-EPR is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | (installation dimensions) |
|---|---|
| Width dimension | 50.1mm |
| Type of mounting | Direct mounting via through-hole |
| Product weight | 116g |
| Mounting position | Arbitrary, on H-rail: horizontal |
| Ambient temperature | -20°C |
| Note on ambient temperature | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Storage temperature | -20°C |
| Relative air humidity | 5 - 95 % |
| Nominal altitude of use above sea level | <= 2000 m ASL (> 79.5 kPa) |
| Max. installation height | 3500m |
| Information on max. installation height | > 2000 m ASL (< 79.5 kPa) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Note on vibration resistance | SG1 on H-rail |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Note on shock resistance | 30 g/11 ms as per EN 60068-2-27 |
| Protection class | III |
| Overvoltage category | II |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant |
| End plate material | Die-cast aluminum, coated |
| Material of screws | Steel, nickel-plated |
| Seals material | PU foam |
