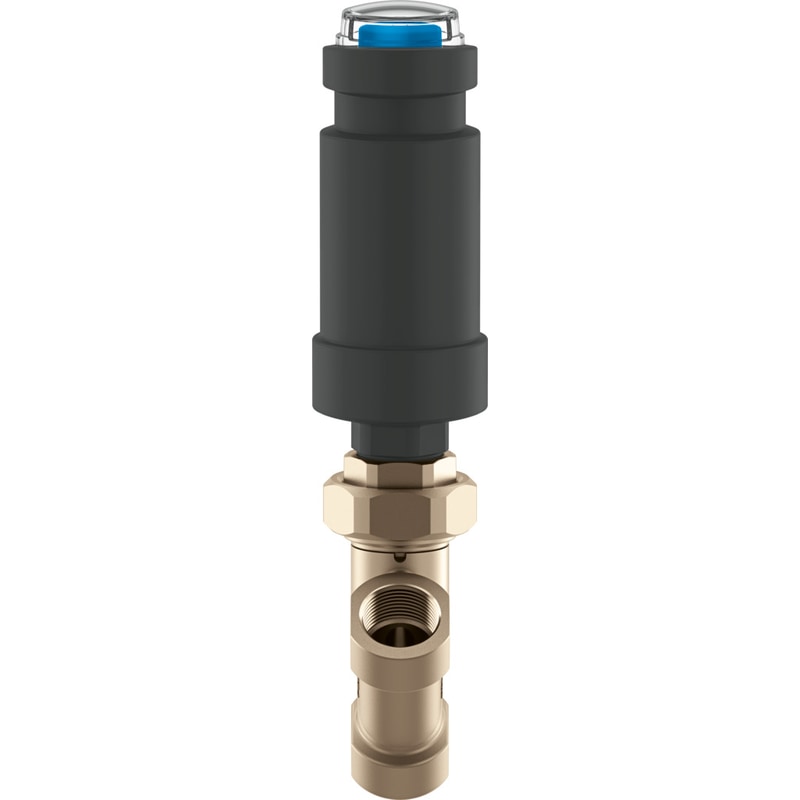

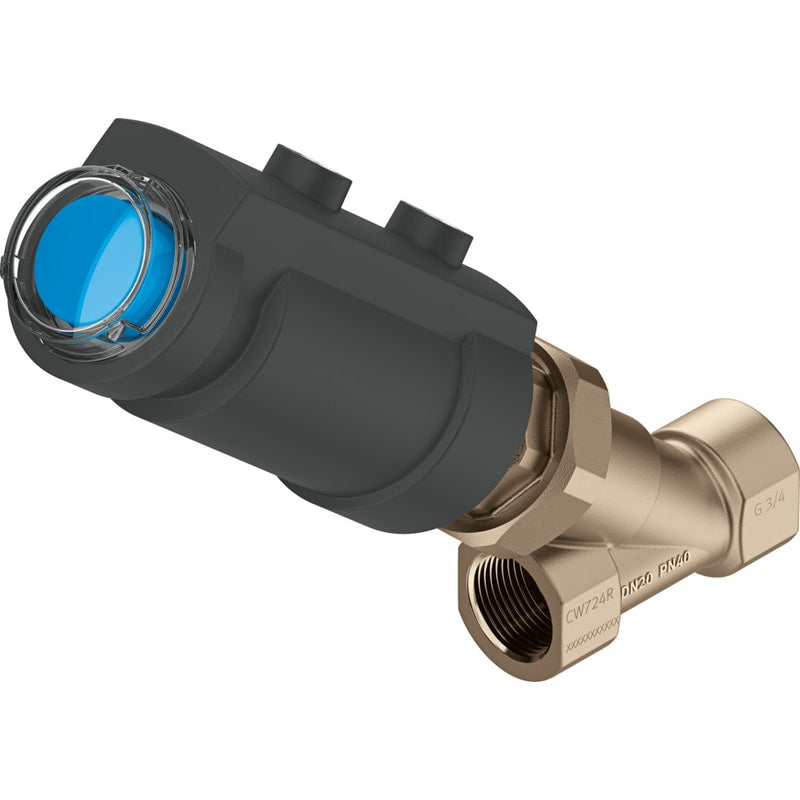

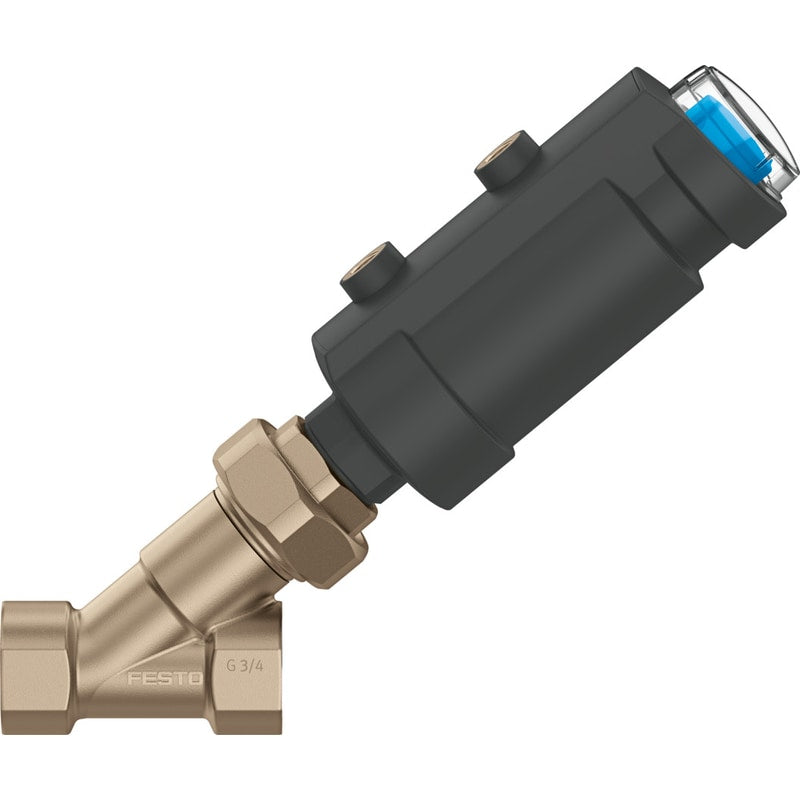

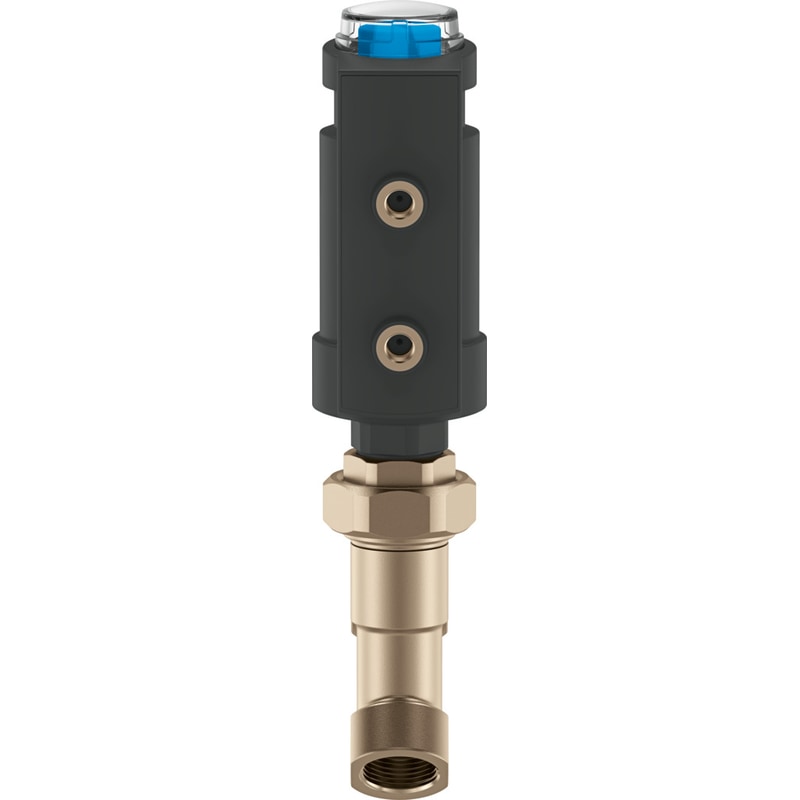

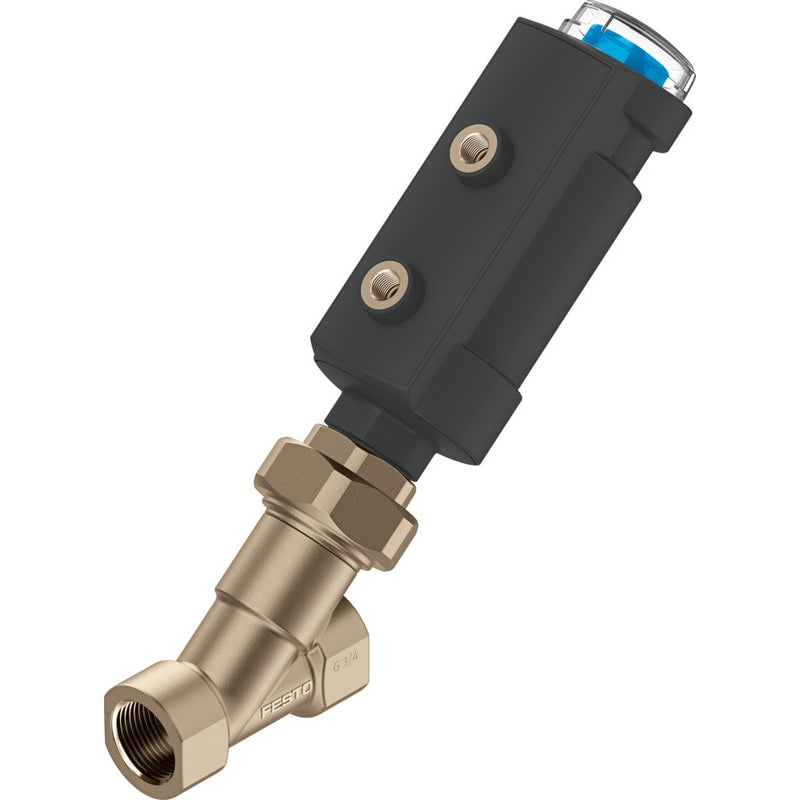

Angle seat valve
VZXA-A-TS7-1/2"-M6-B1T-16-K-46-17-PR-PM
8111598
GTIN 4052568550554
Vendor Festo
- Cable connection
- Threaded sleeve 1/2 NPT as per ANSI/ASME B 1.20.1
- Flow rate Kv
- 4.9 m³/h
- Medium pressure
- 0 bar - 16 bar
- Degree of protection
- IP65 - IP67
Regular price
$373.62
Unit price
VZXA-A-TS7-1/2"-M6-B1T-16-K-46-17-PR-PM is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZXA-A-TS7-1/2"-M6-B1T-16-K-46-17-PR-PM
Regular price
$373.62
Unit price
VZXA-A-TS7-1/2"-M6-B1T-16-K-46-17-PR-PM is backordered and will ship as soon as it is back in stock.
| Structural design | Poppet valve with piston actuator |
|---|---|
| Actuation type | Pneumatic |
| Mounting position | Any |
| Type of mounting | Line installation |
| Cable connection | Threaded sleeve 1/2 NPT as per ANSI/ASME B 1.20.1 |
| Valve function | 2/2 |
| Flow direction | Non-reversible |
| Medium pressure | 0 MPa ... 1.6 MPa |
| Medium pressure | 0 bar ... 16 bar |
| Reset method | Mechanical spring |
| Type of control | Externally controlled |
| Pneumatic connection | Internal thread G1/8 |
| Operating pressure | 0.5 MPa ... 0.7 MPa |
| Operating pressure | 5 bar ... 7 bar |
| Operating pressure | 72.5 psi ... 101.5 psi |

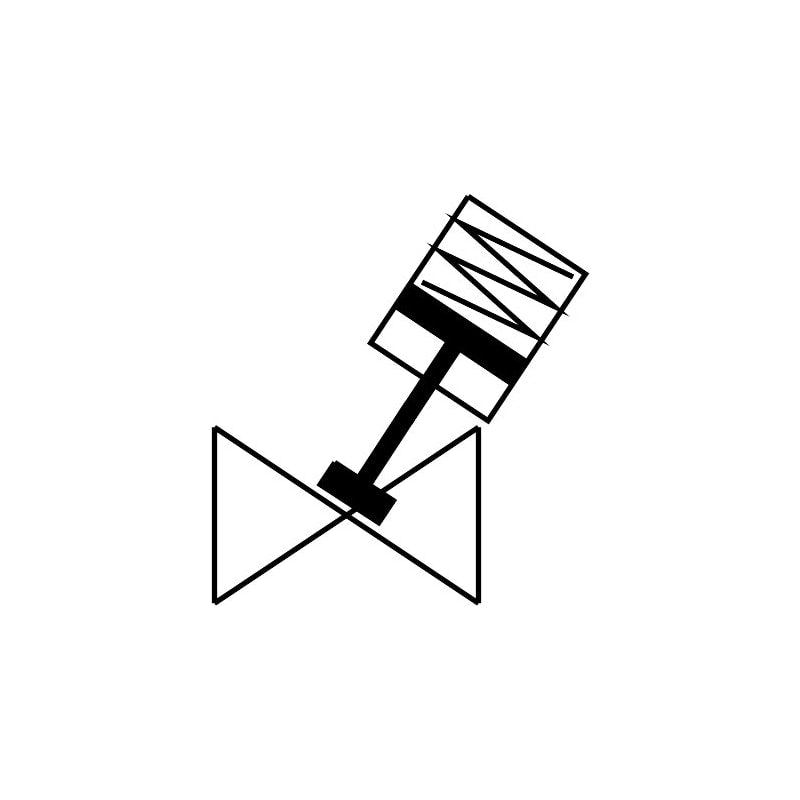

| Symbol | 00995586 |
| Medium | Vapor Inert gas Filtered compressed air, 200 µm filter mesh |
| Flow direction | Above valve seat, for gaseous media |
| Control of the medium | On/off mode |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | 0 °C ... 60 °C |
| Flow rate Kv | 4.9 m³/h |
| Use in exterior area | Weather-protected locations class C1 based on IEC 60654-1 |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Valve housing material | Brass |
| Material number, fitting housing | CW724R |
| Seals material | FPM |
| Spindle seal material | PTFE |
| Seat seal material | PTFE |
| Product weight | 1096 g |
| Actuator size | 46 mm |
| Stroke | 17 mm |
| Control function | Closed by reduced spring force, NC |
| Position sensing | With mechanical indicator |
| Drive housing material | PA-reinforced |
| Storage temperature | -10 °C ... 60 °C |
| Degree of protection | IP65 IP67 |
| Piston rod material | High-alloy stainless steel |
| Cover material | PA-reinforced |
