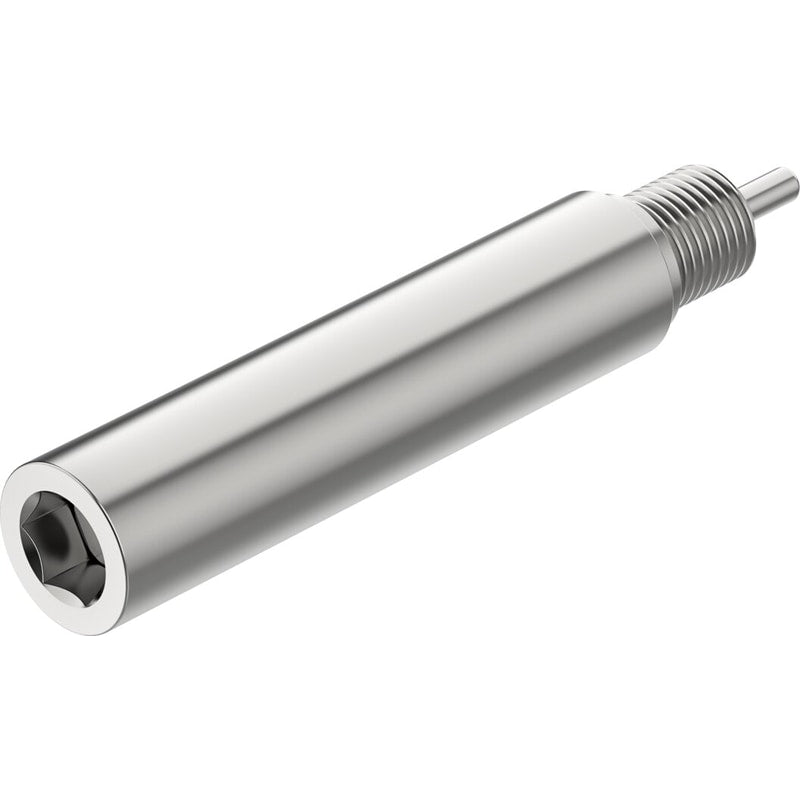

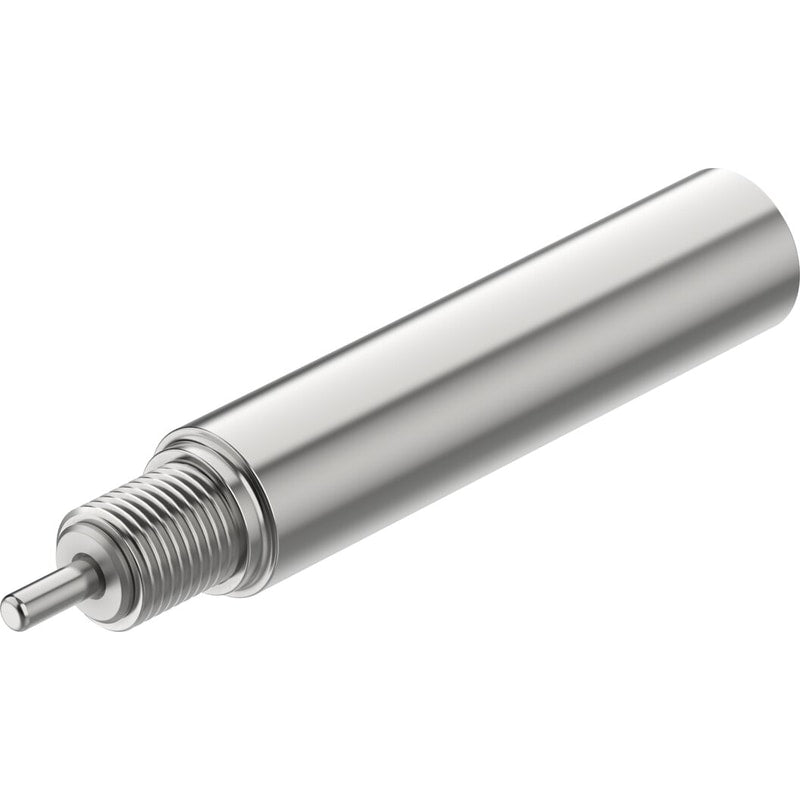

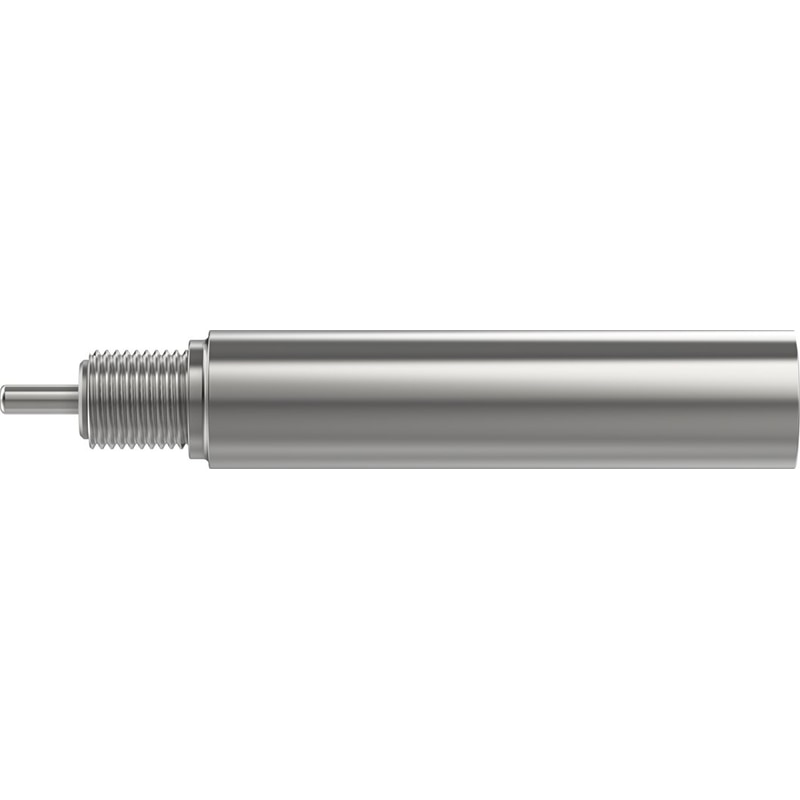

Shock absorber
DYSS-G8-3-4-Y1F-G2
8111383
GTIN 4052568568924
Vendor Festo
- Stroke
- 4 mm
- Max. energy absorption per stroke
- 0.4 J
- Cushioning
- Self-adjusting
Regular price
$57.71
Unit price
DYSS-G8-3-4-Y1F-G2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DYSS-G8-3-4-Y1F-G2
Regular price
$57.71
Unit price
DYSS-G8-3-4-Y1F-G2 is backordered and will ship as soon as it is back in stock.
| Size | 3 |
|---|---|
| Stroke | 4 mm |
| Cushioning | Self-adjusting |
| Mounting position | Any |
| Position sensing | None |

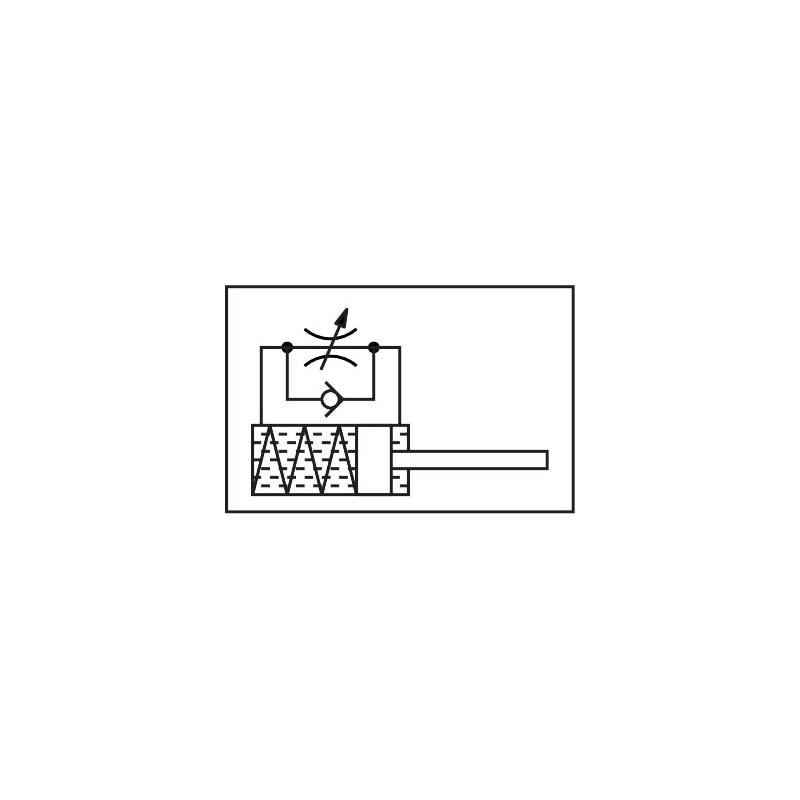

| Symbol | 00991495 |
| Max. impact velocity | 1 m/s |
| Reset time at room temperature | 0.2 s |
| Reset time at min. ambient temperature | 1 s |
| Mode of operation | Single-acting Pushing |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -10 °C ... 80 °C |
| Cushioning length | 4 mm |
| Max. stop force | 80 N |
| Max. tightening torque | 1 Nm |
| Max. energy absorption per stroke | 0.4 J |
| Max. energy absorption per hour | 4500 J |
| Max. residual energy | 0.004 J |
| Resetting force | 0.5 N |
| Product weight | 7.8 g |
| Type of mounting | With threaded sleeve |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | High-alloy steel |
| Piston rod material | High-alloy steel |
