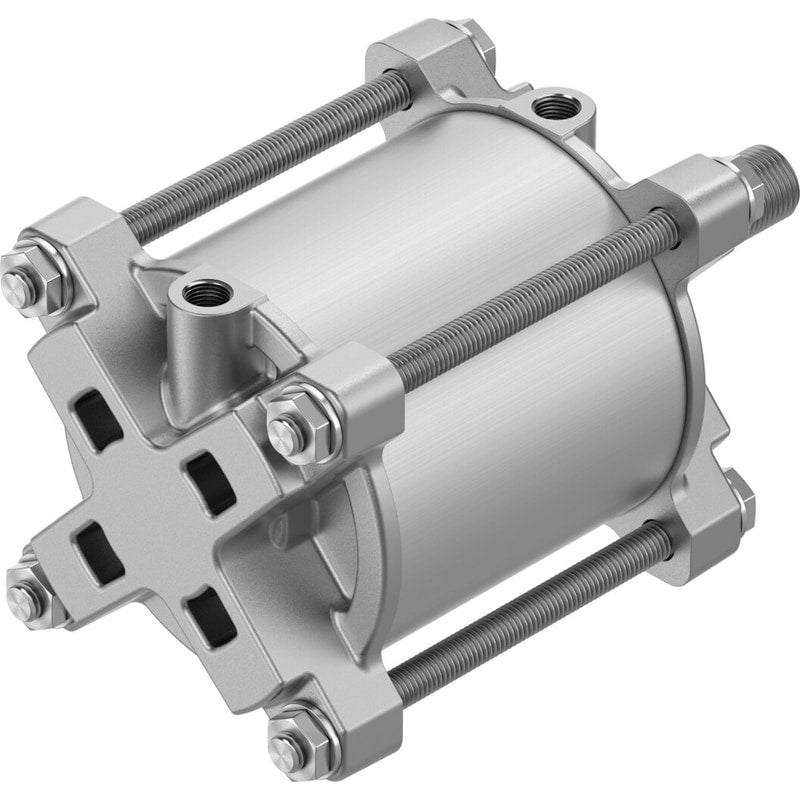

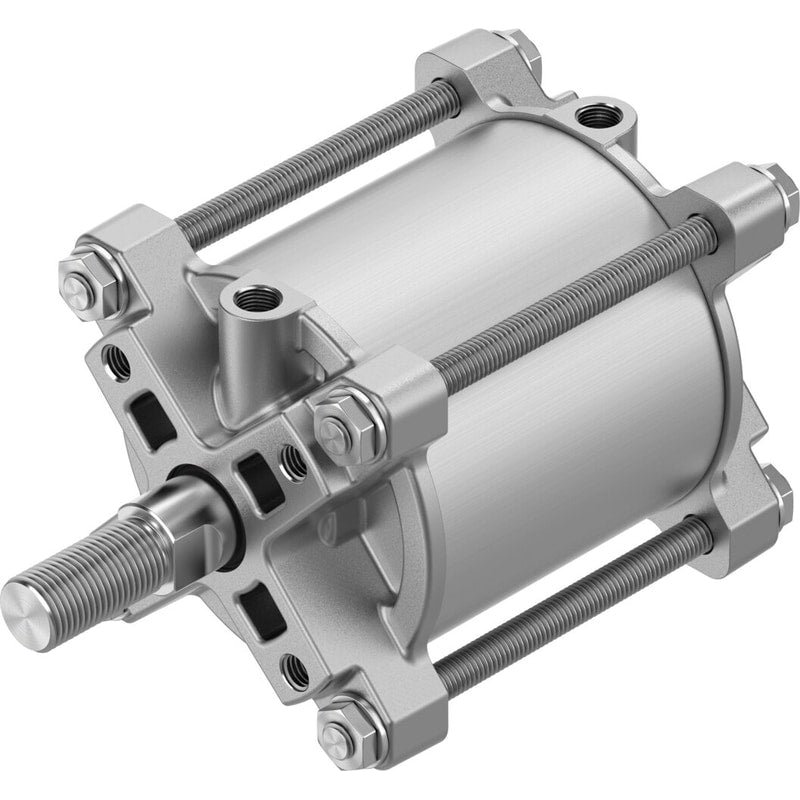

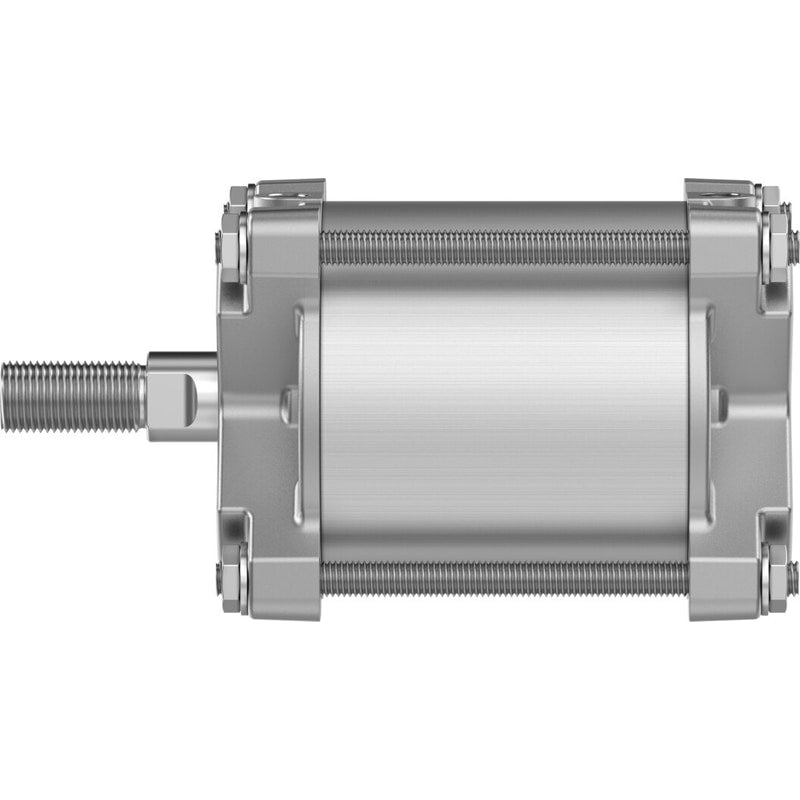

Linear actuator
DFPC-80-50-D
8110815
GTIN 4052568460570
Vendor Festo
- Piston diameter
- 80 mm
- Theoretical force at 6 bar, advancing
- 3016 N
- Stroke
- 50 mm
- Position sensing
- For proximity sensor
Regular price
$333.38
Unit price
DFPC-80-50-D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFPC-80-50-D
Regular price
$333.38
Unit price
DFPC-80-50-D is backordered and will ship as soon as it is back in stock.
| Size of valve actuator | 80 |
|---|---|
| Impact energy in the end positions | 1.4 J |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Nominal operating pressure | 87 psi |
| Operating pressure | 0.06 MPa ... 0.8 MPa |
| Nominal operating pressure | 0.6 MPa |
| Operating pressure | 8.7 psi ... 116 psi |
| Flange hole pattern | F07 |
| Stroke | 50 mm |
| Piston diameter | 80 mm |
| Type code | DFPC |
| Standard connection for valve | ISO 5210 |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Design | Piston Piston rod Tie rod Cylinder barrel |
| Position sensing | For proximity sensor |
| Symbol | 00991217 |
| Operating pressure | 0.6 bar ... 8 bar |
| Nominal operating pressure | 6 bar |
| Ambient temperature | -20 °C ... 80 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Theoretical force at 6 bar, retracting | 2827 N |
| Theoretical force at 6 bar, advancing | 3016 N |
| Air consumption, retracting, per 10 mm stroke | 0.33 l |
| Air consumption advancing per 10 mm stroke | 0.352 l |
| Moving mass at 0 mm stroke | 451 g |
| Additional weight per 10 mm stroke | 61.8 g |
| Basic weight with 0 mm stroke | 1230.3 g |
| Product weight | 1540 g |
| Additional moving mass per 10 mm stroke | 24.8 g |
| Type of mounting | On flange as per ISO 5210 With spacer bolt Optionally: |
| Pneumatic connection | G1/8 |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Cover material | Gravity die-cast aluminum |
| Piston rod material | High-alloy stainless steel |
| Piston rod wiper seal material | TPE-U(PU) |
| Nut material | High-alloy stainless steel |
| Static seal material | NBR |
| Tie rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
