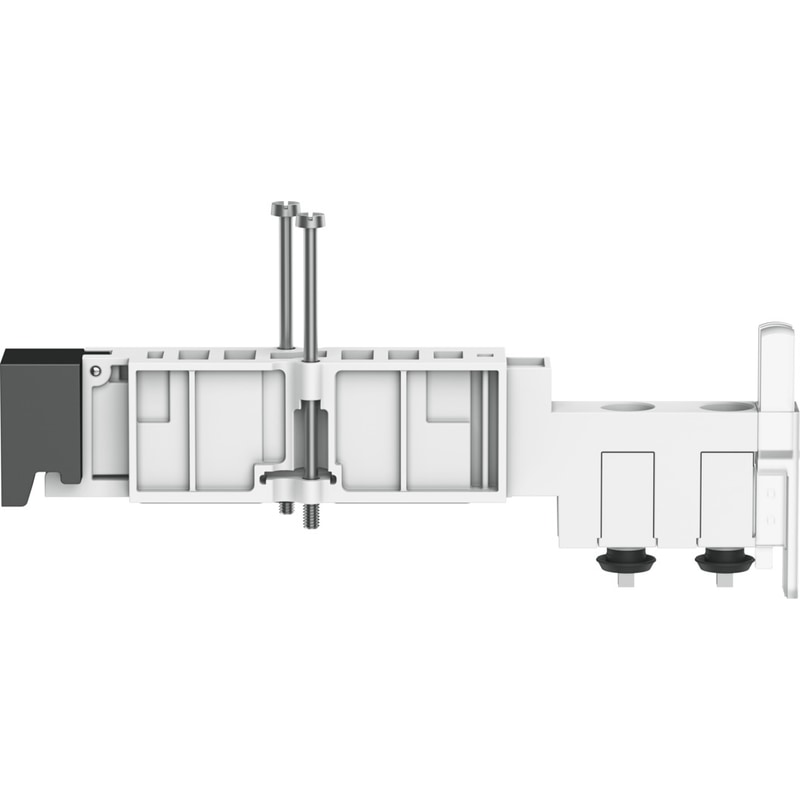

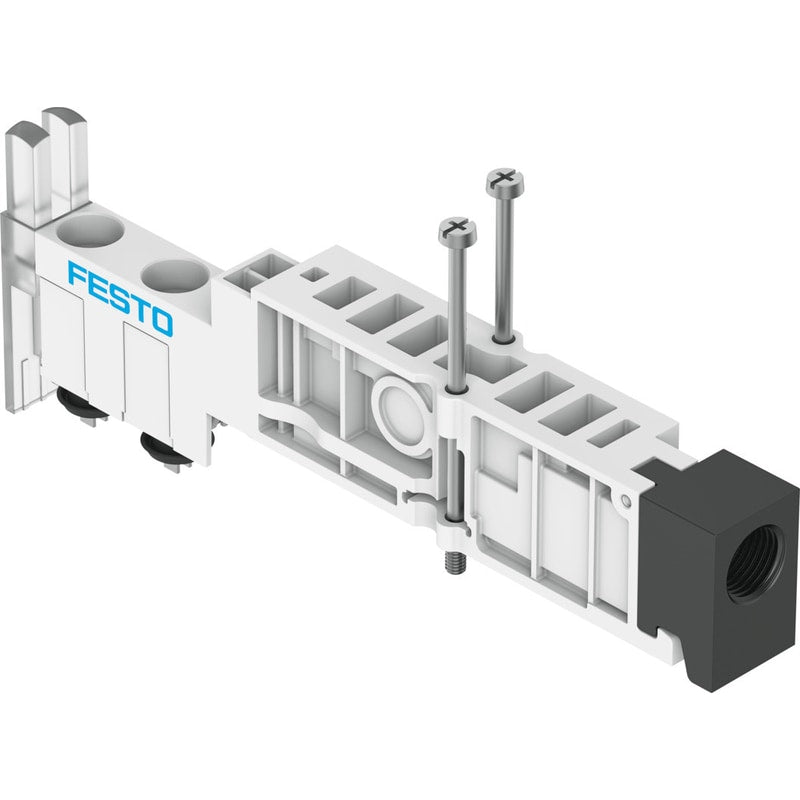

Vertical pressure supply plate
VMPA14-VSP-QS5/16
8110624
GTIN 4052568565640
Vendor Festo
Regular price
$65.77
Unit price
VMPA14-VSP-QS5/16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA14-VSP-QS5/16
Regular price
$65.77
Unit price
VMPA14-VSP-QS5/16 is backordered and will ship as soon as it is back in stock.
| Width dimension | 14 mm |
|---|---|
| Symbol | 00991883 |
| Operating pressure | -0.09 MPa ... 1 MPa |
| Operating pressure | -0.9 bar ... 10 bar |
| Pilot pressure MPa | 0.3 MPa ... 0.8 MPa |
| Pilot pressure | 3 bar ... 8 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 50 g |
| Pneumatic connection 1 | QS-5/16 |
| Note on materials | RoHS-compliant |
| Supply plate material | PA-reinforced |
