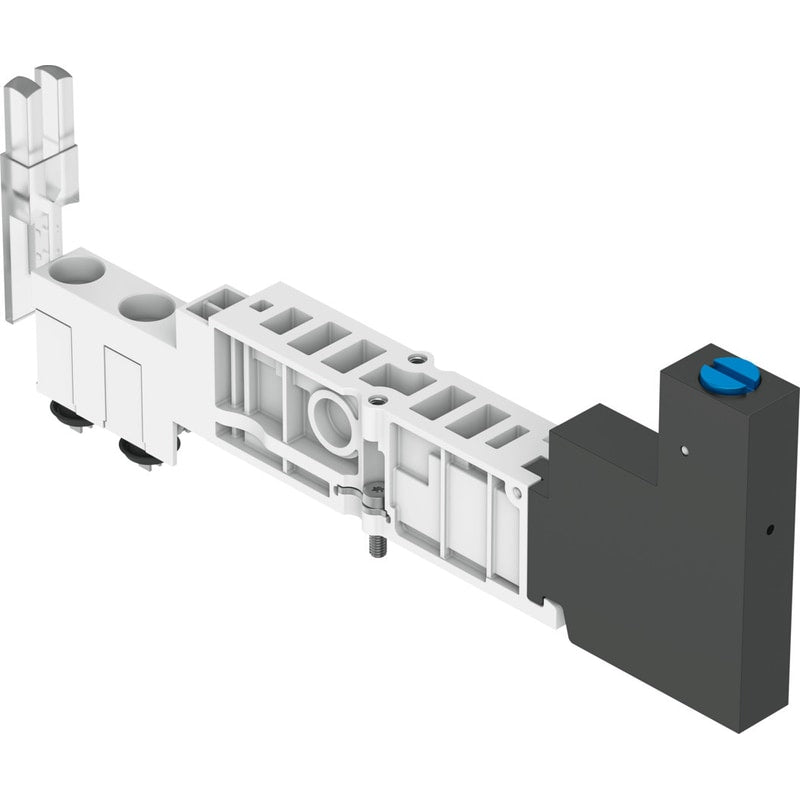

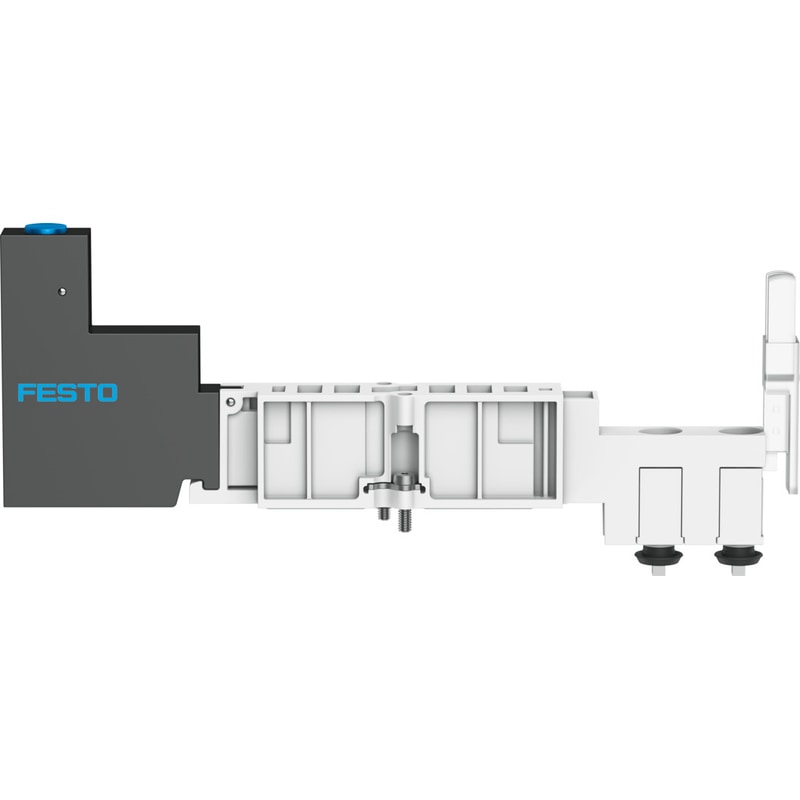

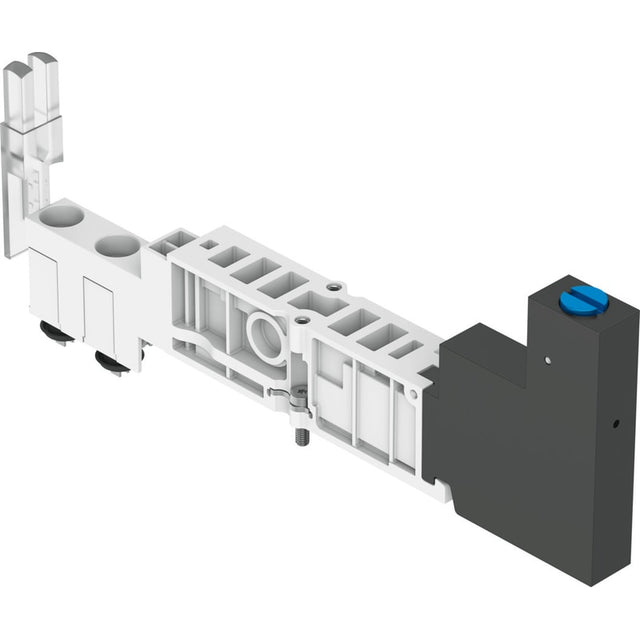

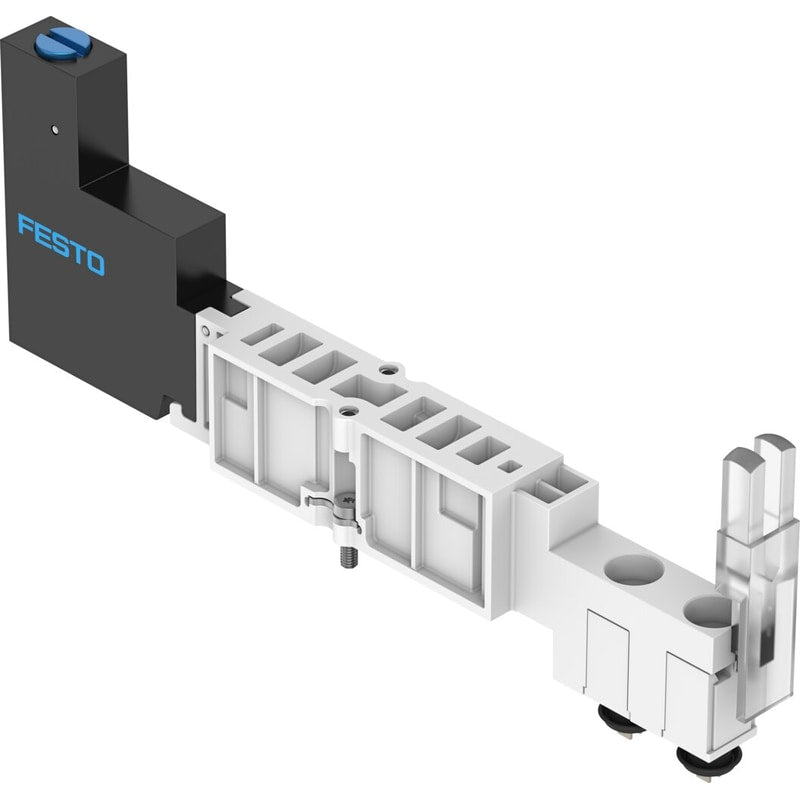

Vertical pressure shut-off plate
VMPA14-HS
8110429
GTIN 4052568565602
Vendor Festo
Regular price
$100.67
Unit price
VMPA14-HS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA14-HS
Regular price
$100.67
Unit price
VMPA14-HS is backordered and will ship as soon as it is back in stock.
| Width | 10 mm |
|---|---|
| Mounting position | Any |
| Pneumatic vertical stacking | Shut-off for 1 |

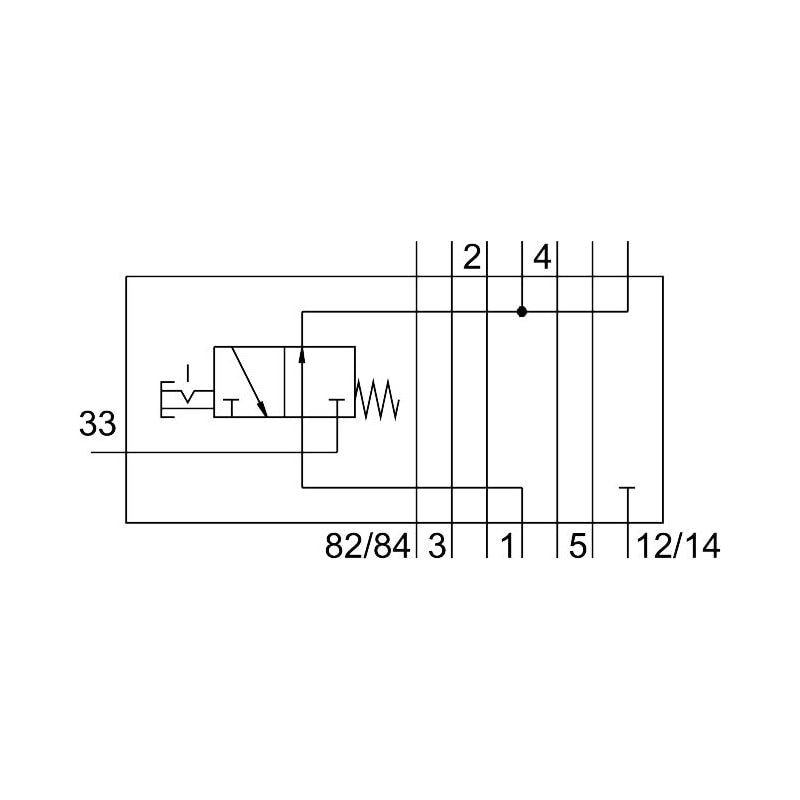

| Symbol | 00991889 |
| Operating pressure | 3 bar ... 8 bar |
| Standard nominal flow rate pressurization | 103 l/min |
| Standard nominal flow rate exhaust air | 213 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Degree of protection | IP65 |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 240 g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy PA-reinforced |
