Interface

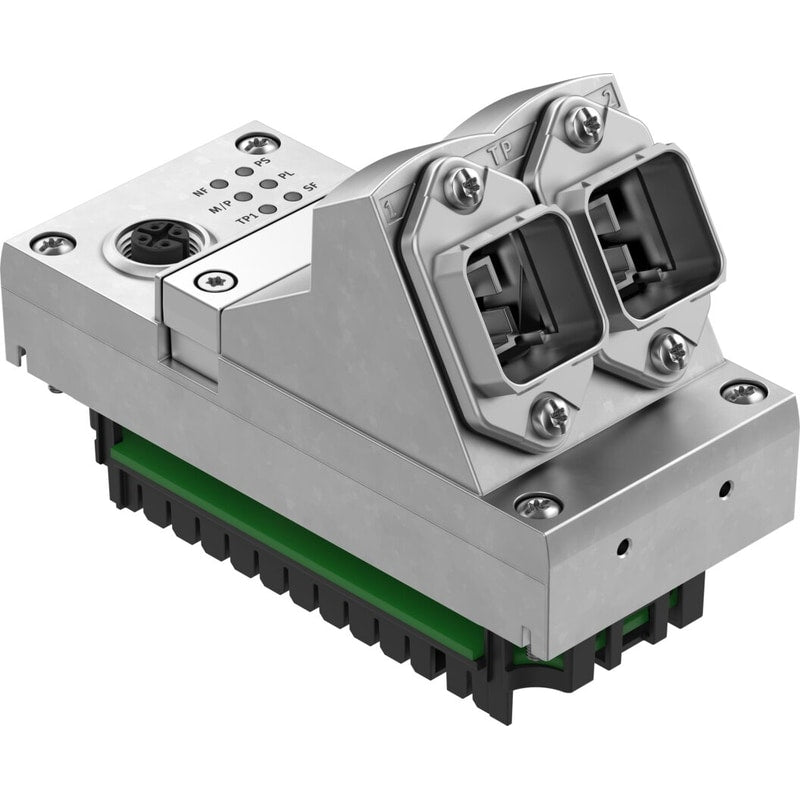

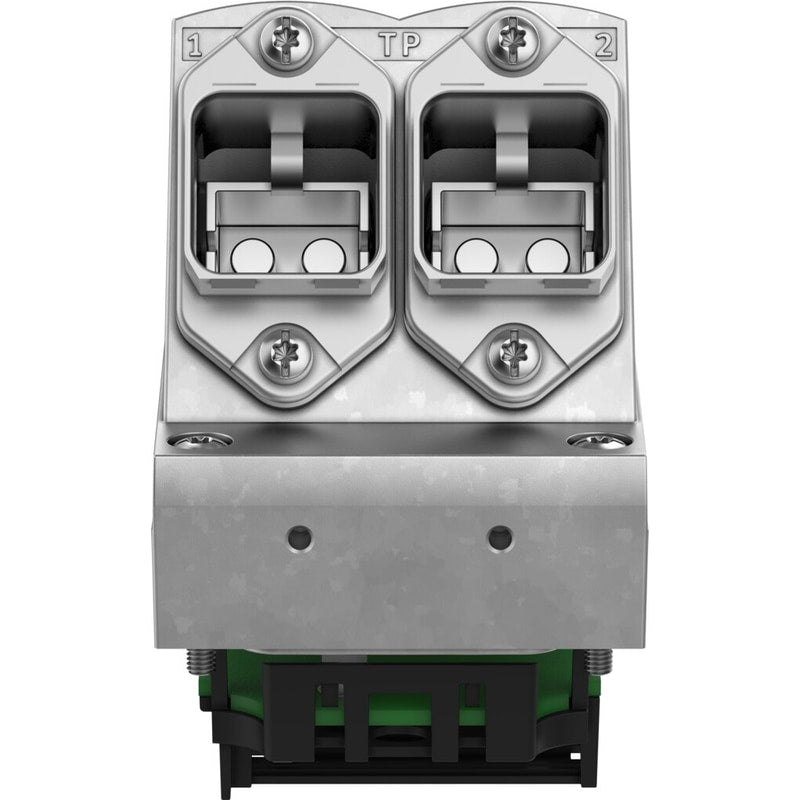

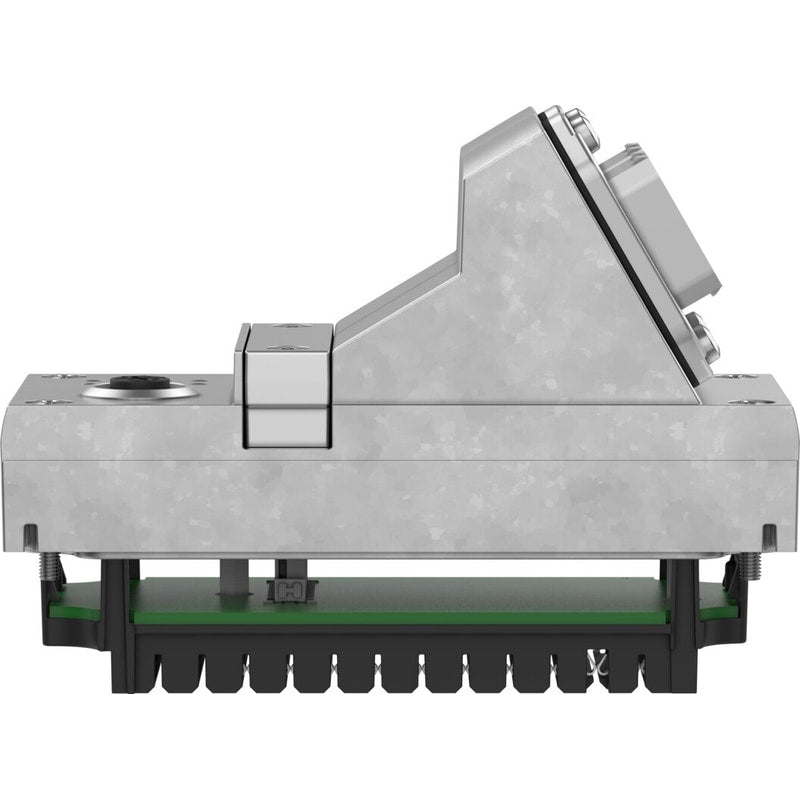

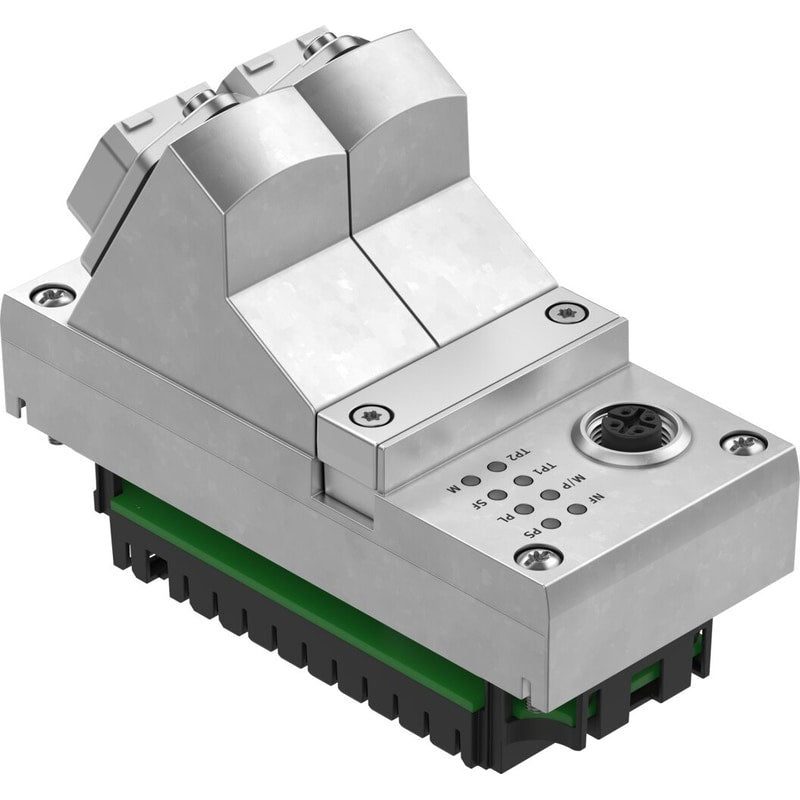

CPX-M-FB45
8110371
GTIN 4052568560898
Vendor Festo
Regular price
$2,133.33
Unit price
CPX-M-FB45 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-M-FB45
Regular price
$2,133.33
Unit price
CPX-M-FB45 is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | (incl. interlinking block) 50 mm x 107 mm x 80 mm |
|---|---|
| Fieldbus interface | 2x SCRJ push-pull socket, AIDA |
| Device-specific diagnostics | Channel-oriented and module-oriented diagnostics Undervoltage of modules Diagnostic memory |
| Parameterization | Diagnostic behavior Fail-safe response forcing of channels Signal setup System parameter |
| Configuration support | GSDML file |
| Additional functions | Acyclic data access via fieldbus Acyclic data access via Ethernet Fast start-up (FSU) I&M Channel-based diagnostics via fieldbus LLDP MQTT MRP MRPD PROFIenergy PROFIsafe S2 system redundancy Start-up parameterization in plain text via fieldbus System status can be indicated via process data Additional diagnostic interface for operator units |
| Control elements | DIL switch |
| Baud rate | 100 Mbit/s |
| DC operating voltage range | 18 V ... 30 V |
| Intrinsic current consumption at nominal operating voltage | Typ. 145 mA |
| Nominal operating voltage DC | 24 V |
| Certification | RCM compliance mark |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Degree of protection | IP65 IP67 |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 280 g |
| Max. address capacity outputs | 64 byte |
| Max. address capacity inputs | 64 byte |
| Protocol | PROFINET IRT PROFINET RT |
| LED display (bus-specific) | M/P: maintenance/PROFIenergy NF: network fault TP1: network active port 1 TP2: network active, port 2 |
| LED display (product-specific) | M: Modify, parameterization PL: load supply PS: electronics supply, sensor supply SF: system fault |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum |
