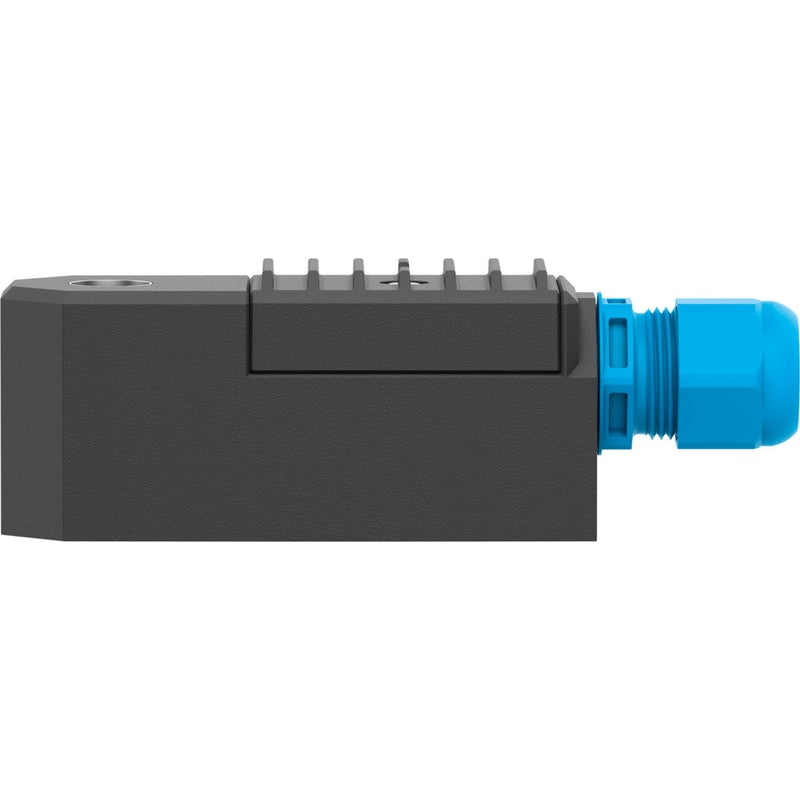

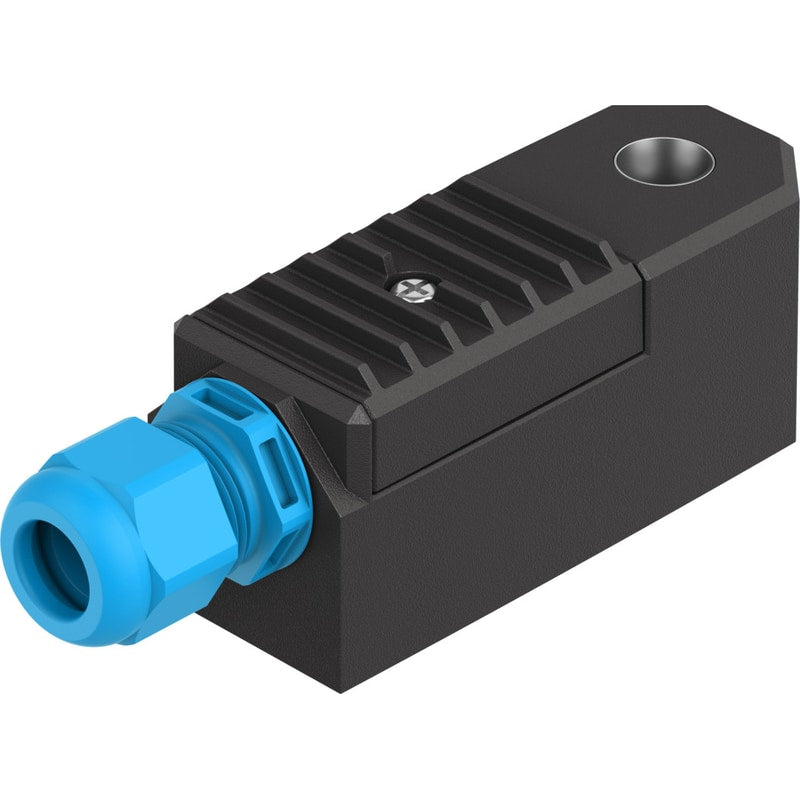

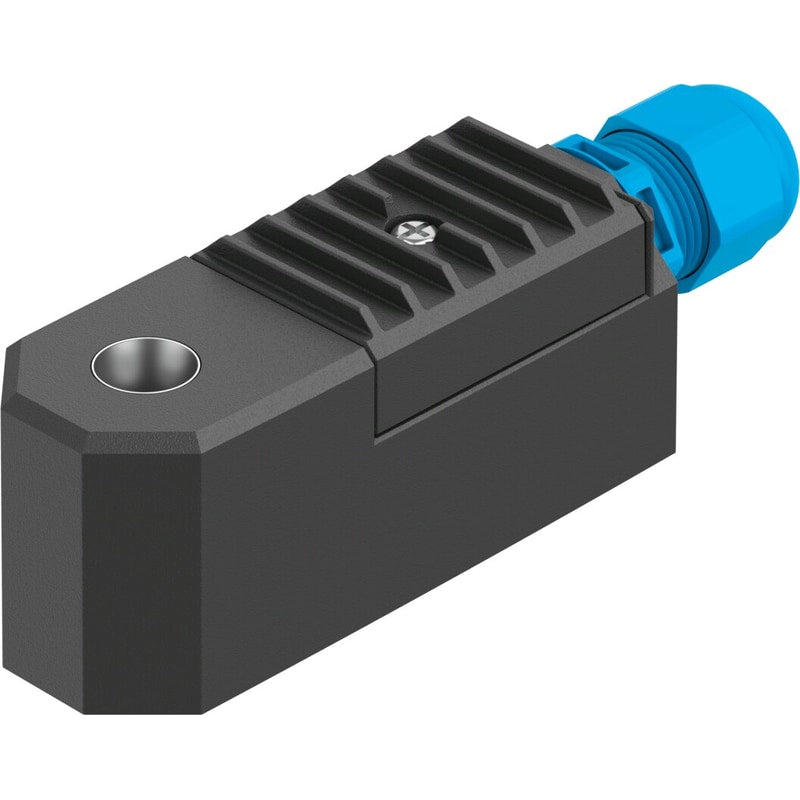

Solenoid coil
VACC-S13-11-K4-1-EX4A
8109401
GTIN 4052568459369
Vendor Festo
- Electrical connection
- Terminal box, cable entry thread M20x1.5
- Coil characteristics
- 14 - 32 V DC: 0.22 - 1.1 W
- Degree of protection
- IP65
Regular price
$409.39
Unit price
VACC-S13-11-K4-1-EX4A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACC-S13-11-K4-1-EX4A
Regular price
$409.39
Unit price
VACC-S13-11-K4-1-EX4A is backordered and will ship as soon as it is back in stock.
| Type code | VACC |
|---|---|
| Actuation type | Electrical |
| Mounting position | Any |
| Switching position indication | no |
| Duty cycle | 100% |
| Required current consumption | 0.016 A |
| Insulation class | H |
| Max. input power Pi | 1.2 W |
| Max. input voltage Vi | 32 V |
| Max. input current Ii | 0.2 A |
| Coil characteristics | 14-32 V DC: 0.22 - 1.1 W |
| Effective internal capacitance Ci | Negligibly low |
| Effective internal inductance Li | Negligibly low |
| Permissible voltage fluctuations | -15 % / +10 % |
| ATEX category gas | II 2G |
| Type of ignition protection for gas | Ex ia IIC T6, T5 Gb |
| ATEX category for dust | II 2D |
| Type of (ignition) protection for dust | Ex ia IIIC T80°C,T95°C IP65 Db |
| Explosion protection certification outside the EU | EPL Db (IEC-EX)EPL Gb (IEC-EX) |
| Explosive ambient temperature | T5, T95°C: -30°C <= Ta <= +65°CT6, T80°C: -30°C <= Ta <= +50°C |
| Certificate issuing authority | BVS15 ATEXE030XIECEx BVS 15.0020X |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)Zone 1 (IEC-EX)Zone 21 (IEC-EX) |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU explosion protection directive (ATEX) |
| Degree of protection | IP65 |
| Product weight | 330 g |
| Electrical connection | Terminal box, cable entry thread M20x1.5 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
