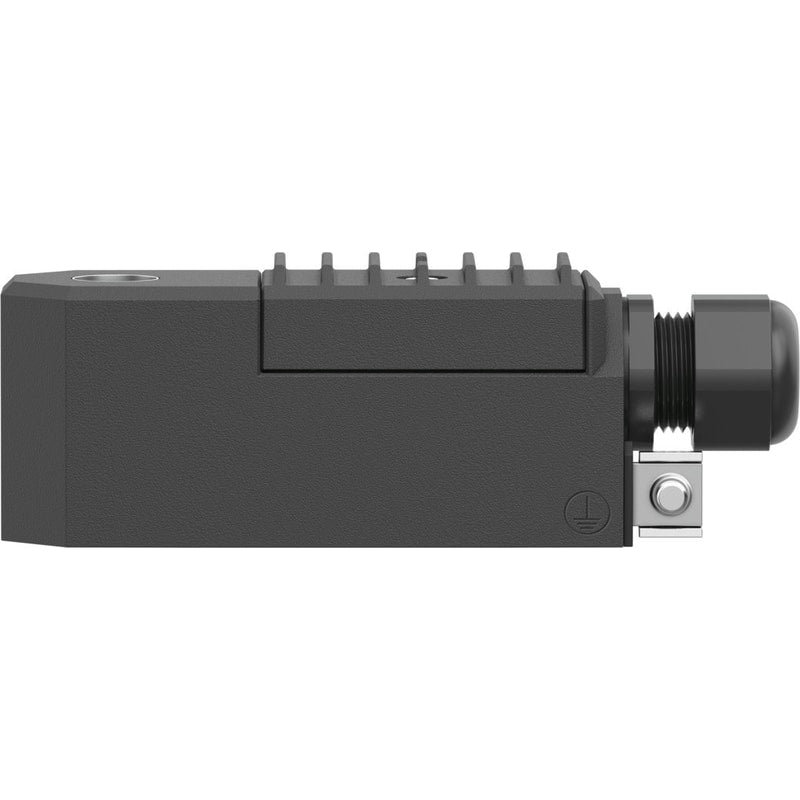

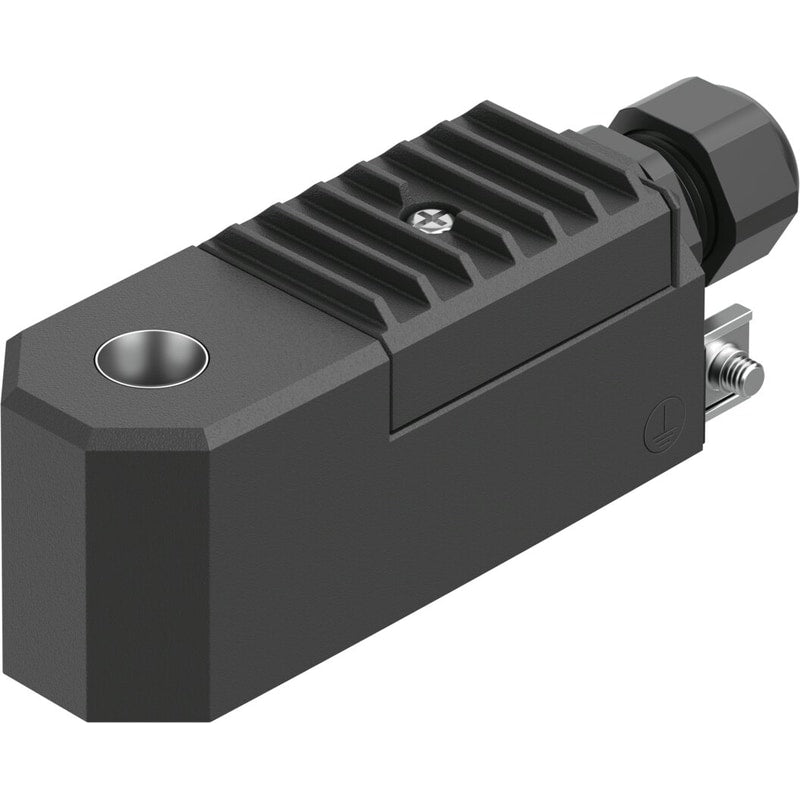

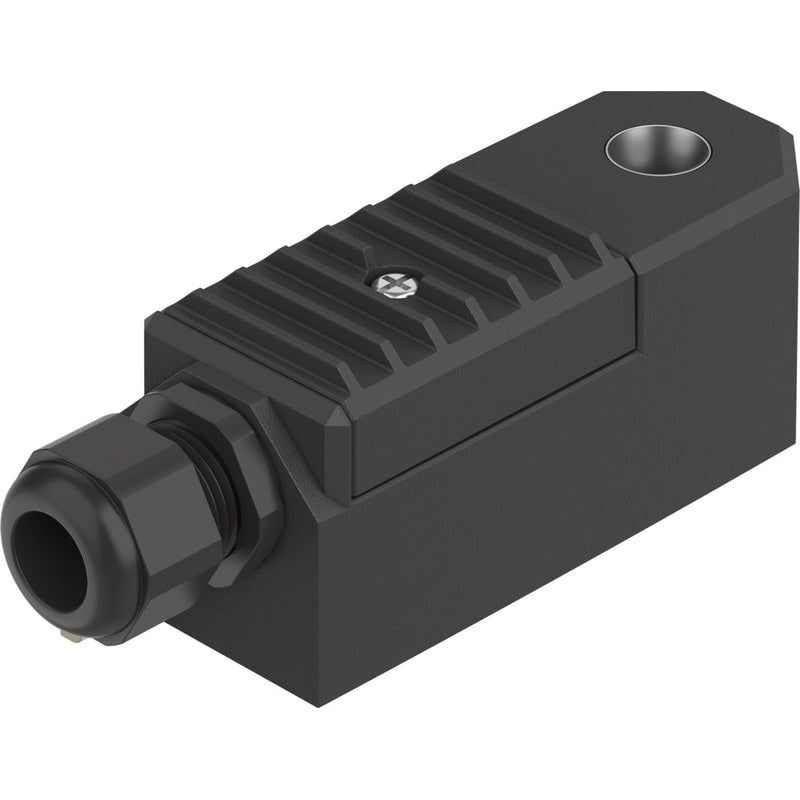

Solenoid coil
VACC-S13-18-K4-27U-EX4ME
8109400
GTIN 4052568461249
Vendor Festo
- Electrical connection
- Terminal box, cable entry thread M20x1.5
- Coil characteristics
- 60 V AC: 40/65 Hz, power 1.8 VA - 60 V DC: 1.8 W
- Degree of protection
- IP65
Regular price
$347.05
Unit price
VACC-S13-18-K4-27U-EX4ME is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACC-S13-18-K4-27U-EX4ME
Regular price
$347.05
Unit price
VACC-S13-18-K4-27U-EX4ME is backordered and will ship as soon as it is back in stock.
| Type code | VACC |
|---|---|
| Actuation type | Electrical |
| Mounting position | Any |
| Switching position indication | no |
| Duty cycle | 100% |
| Insulation class | H |
| Coil characteristics | 60 V AC: 40/65 Hz, power 1.8 VA60 V DC: 1.8 W |
| Permissible voltage fluctuations | -15 % / +10 % |
| ATEX category gas | II 2G |
| Type of ignition protection for gas | Ex eb mb IIC T6, T5, T4 Gb |
| ATEX category for dust | II 2D |
| Type of (ignition) protection for dust | Ex tb IIIC T85°C,T95°C, T130°C Db |
| Explosion protection certification outside the EU | EPL Db (IEC-EX)EPL Gb (IEC-EX) |
| Explosive ambient temperature | T4, T130°C: -30°C <= Ta <= +60°CT5, T95°C: -30°C <= Ta <= +60°CT6, T85°C: -30°C <= Ta <= +50°C |
| Certificate issuing authority | BVS 15ATEXE029XIECEx BVS 15.0075X |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)Zone 1 (IEC-EX)Zone 21 (IEC-EX) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| Degree of protection | IP65 |
| Product weight | 330 g |
| Electrical connection | Terminal box, cable entry thread M20x1.5 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
