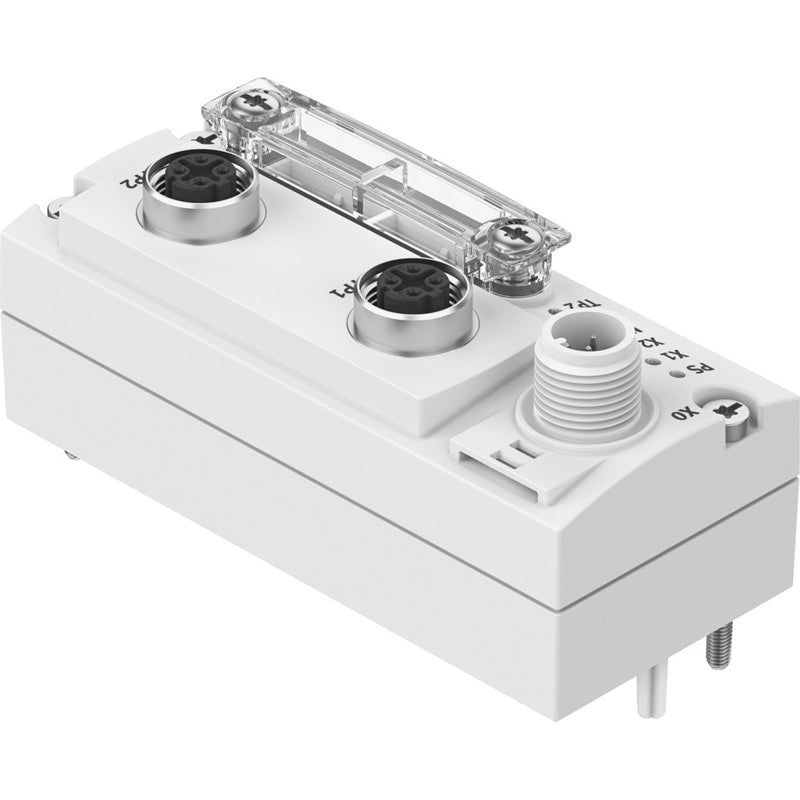

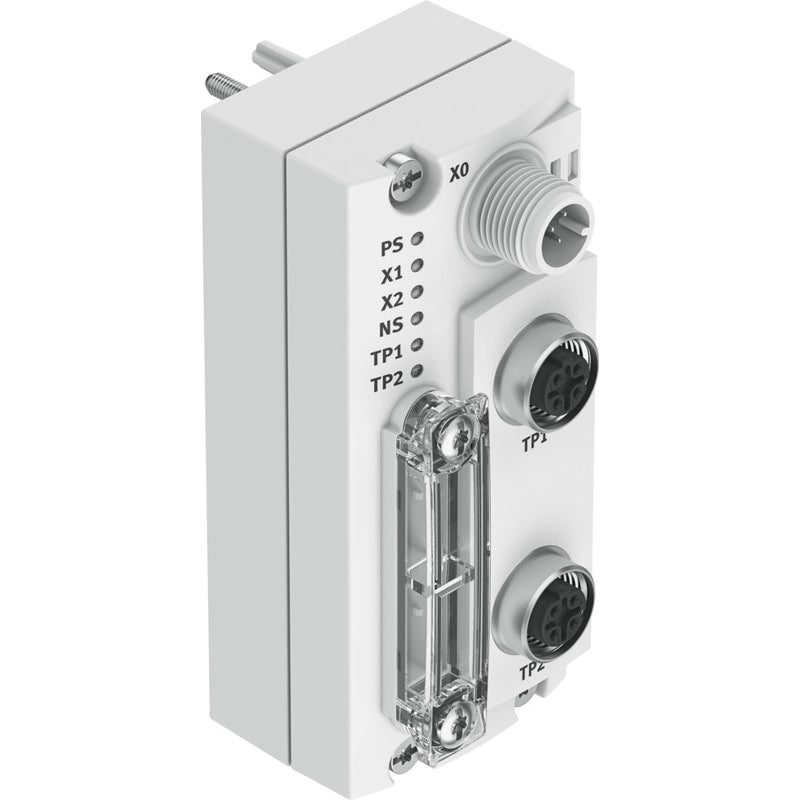

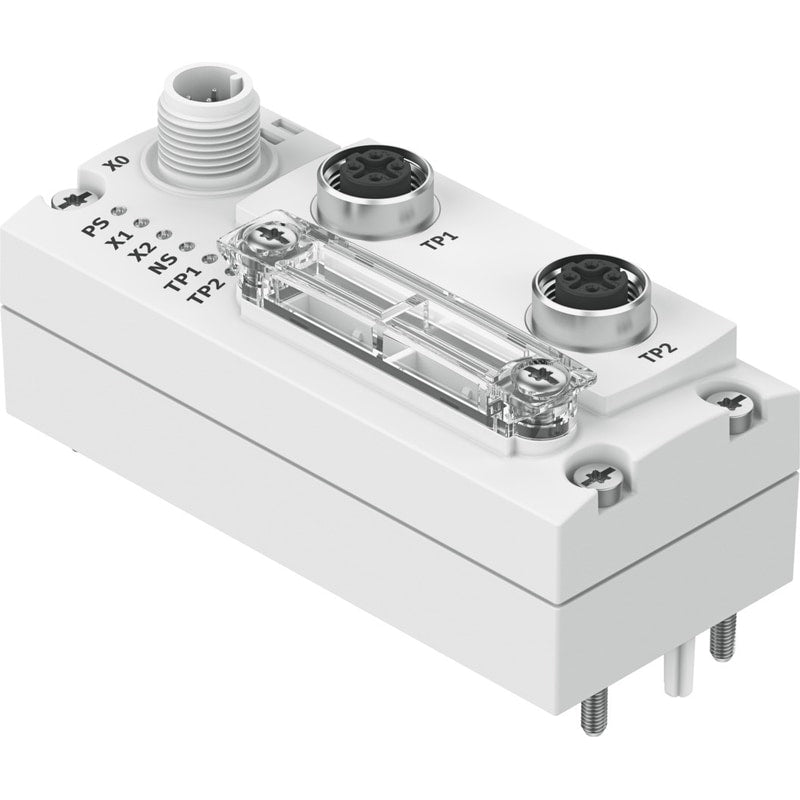

Bus node
CTEU-EP-EX1C
8107591
GTIN 4052568605681
Vendor Festo
- Protocol
- EtherNet/IP - Modbus® TCP
- DC operating voltage range
- 18 V - 30 V
- Intrinsic current consumption at nominal operating voltage
- Typ. 65 mA
- Degree of protection
- IP65 - IP67
Regular price
$710.90
Unit price
CTEU-EP-EX1C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CTEU-EP-EX1C
Regular price
$710.90
Unit price
CTEU-EP-EX1C is backordered and will ship as soon as it is back in stock.
| Protocol | EtherNet/IP |
|---|---|
| Dimensions W x L x H | 40 mm x 91 mm x 50 mm |
| Product weight | 98g |
| Ambient temperature | -5°C |
| Storage temperature | -20°C |
| Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Certification | RCM compliance mark |
| Certificate issuing authority | UL E239998 |
| Note on materials | RoHS-compliant |
| Housing material | PA |
| LED display (product-specific) | PS: operating voltage for electronics and load supply |
| LED display (bus-specific) | NS: network status |
| Diagnostics | Communication error |
| Control elements | DIL switch |
| Fieldbus interface | 2x socket, M12x1, 4-pin, D-coded |
| Max. address capacity inputs | 64byte |
| Max. address capacity outputs | 64byte |
| Parameterization | Diagnostic behavior |
| Baud rate | 10/100 Mbit/s |
| Internal cycle time | 1 ms per 1 byte of user data |
| Configuration support | EDS file |
| Additional functions | AddressConflictDetection (ACD) |
| DC operating voltage range | 18V |
| Nominal operating voltage DC | 24V |
| Max. power supply | 4A |
| Intrinsic current consumption at nominal operating voltage | Typ. 65 mA |
